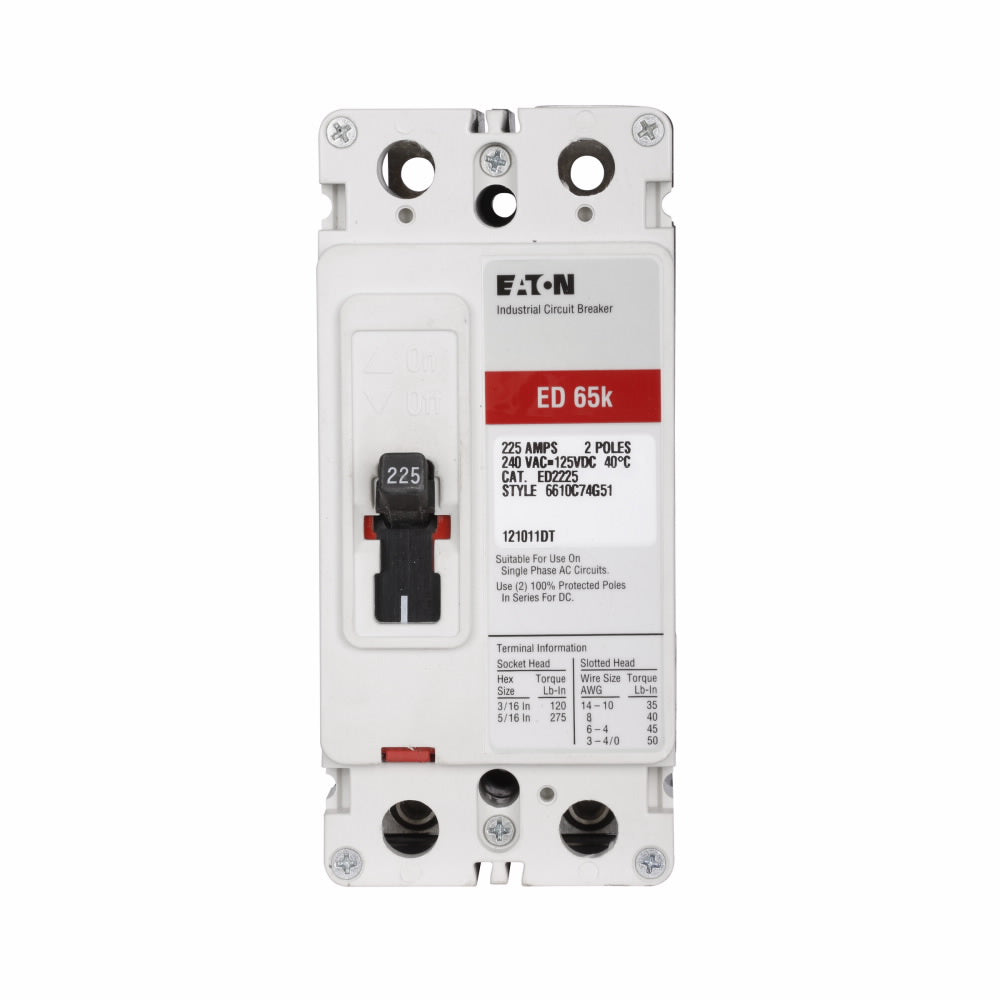

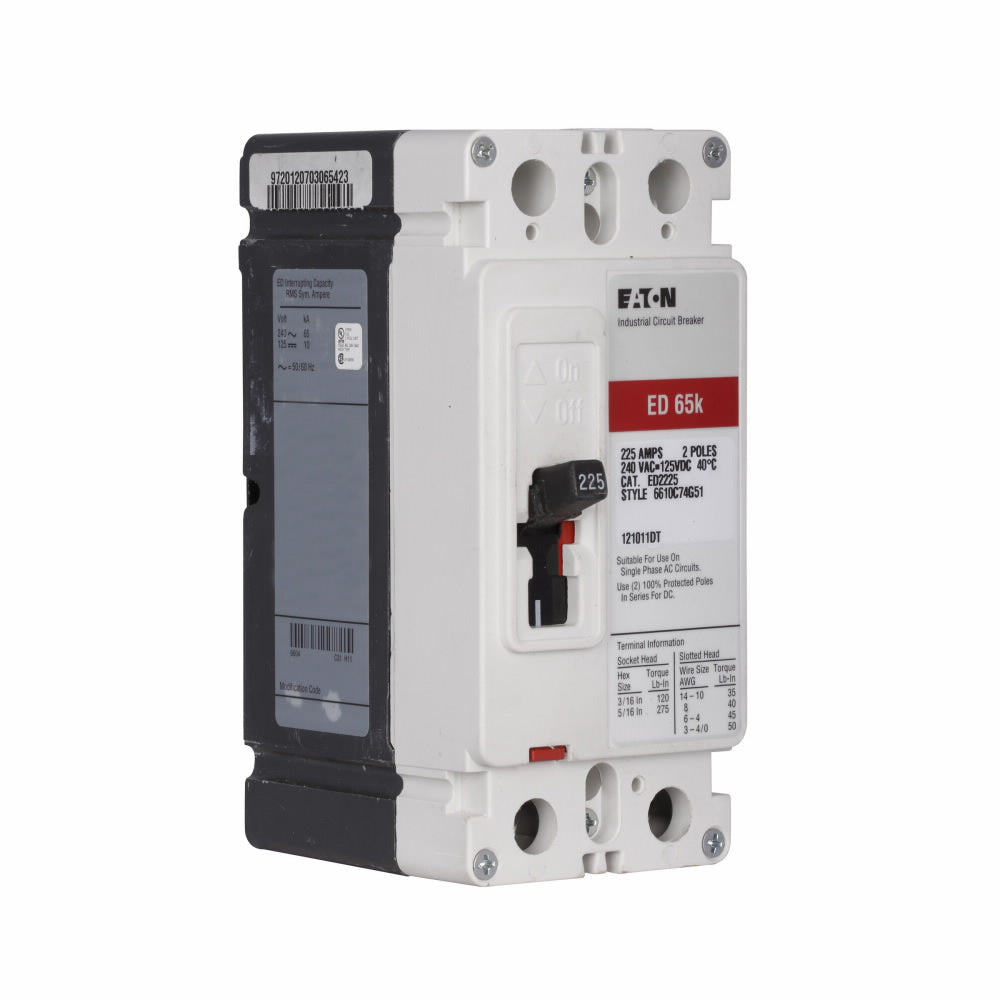

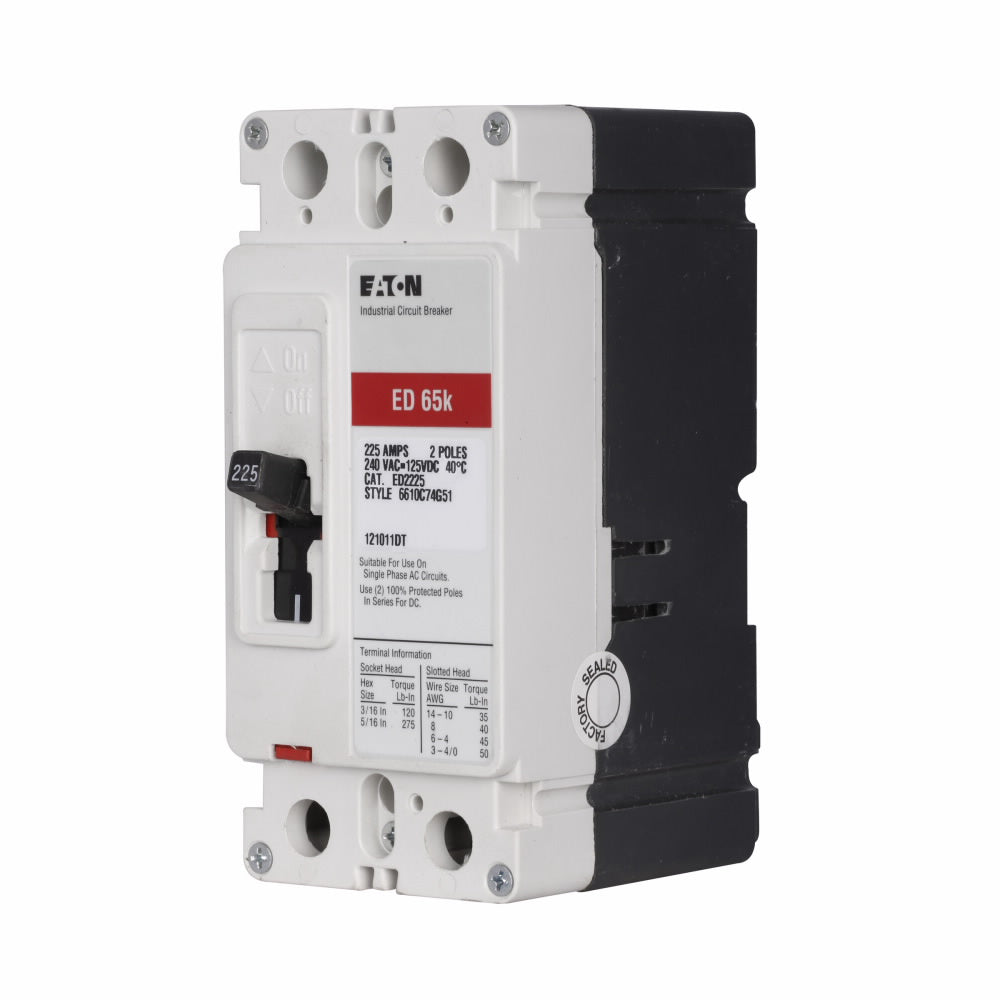

ED2225L - Cutler Hammer 225A 240V 2 Pole Molded Case Circuit Breaker

ED2225L

ED2225L is a 2 pole, 225 amp molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Cutler Hammer breaker features a thermal magnetic trip unit and is rated for 240VAC and 125VDC operation. The ED2225L is part of the Series C family and is built with a fixed thermal and fixed magnetic trip unit. It is designed for panel mounting and is suitable for use in a variety of electrical distribution systems. The breaker is constructed for durability and consistent performance under demanding conditions.

• 2 Pole
• 225 Ampere Rating
• 240VAC, 125VDC Voltage Rating
• Thermal Magnetic Trip Unit
• Fixed Thermal / Fixed Magnetic
• Panel Mounting
• Series C Frame
• Interrupt Rating: 65kA @ 240V
• Feed-Thru Design
• Non-Interchangeable Trip Unit
• Operating Temperature: 40°C
• Dimensions: 2.75" W x 3.375" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED2225L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : ED
• Voltage : 240
• Amperage : 225
• Phase : 2
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679454008
• GTIN : 00786679454008
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 2.9
• Certification : UL Listed
