ED2225 - Cutler Hammer 225A 240V 2-Pole Molded Case Circuit Breaker F-Frame Thermal Magnetic

ED2225

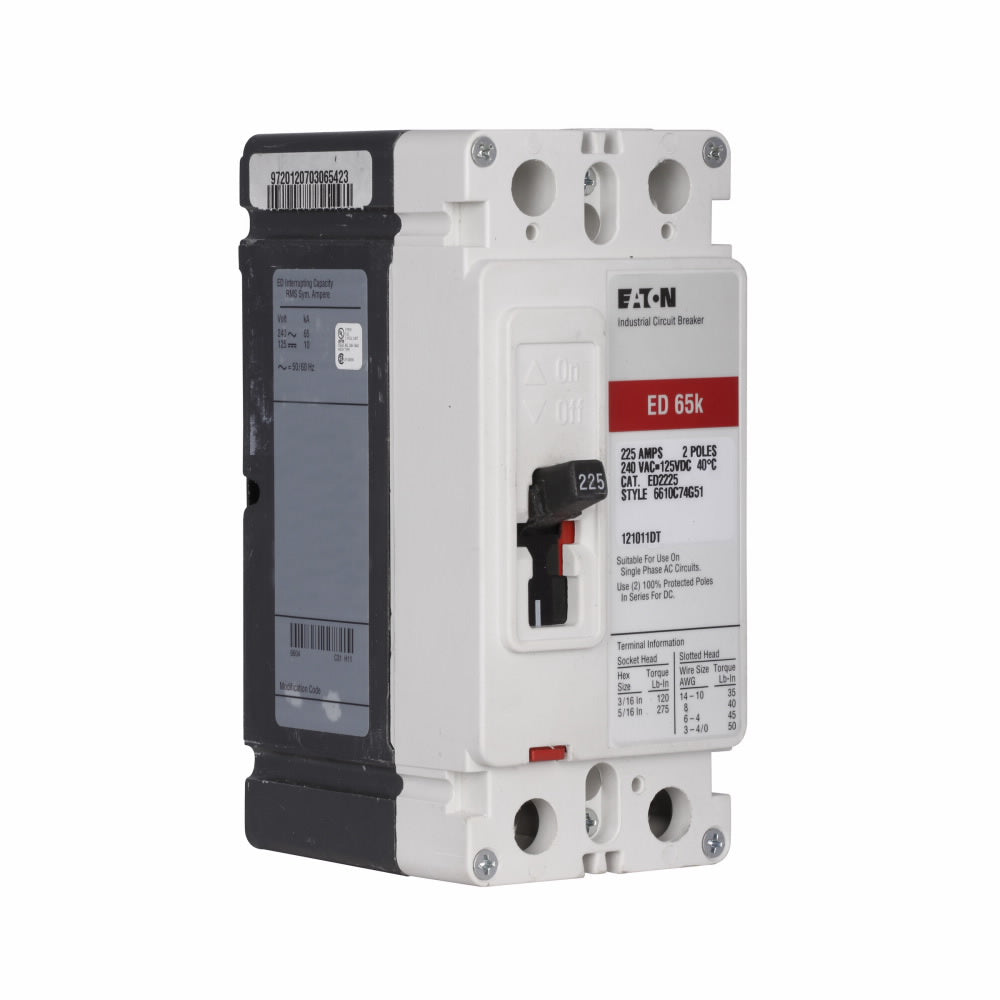

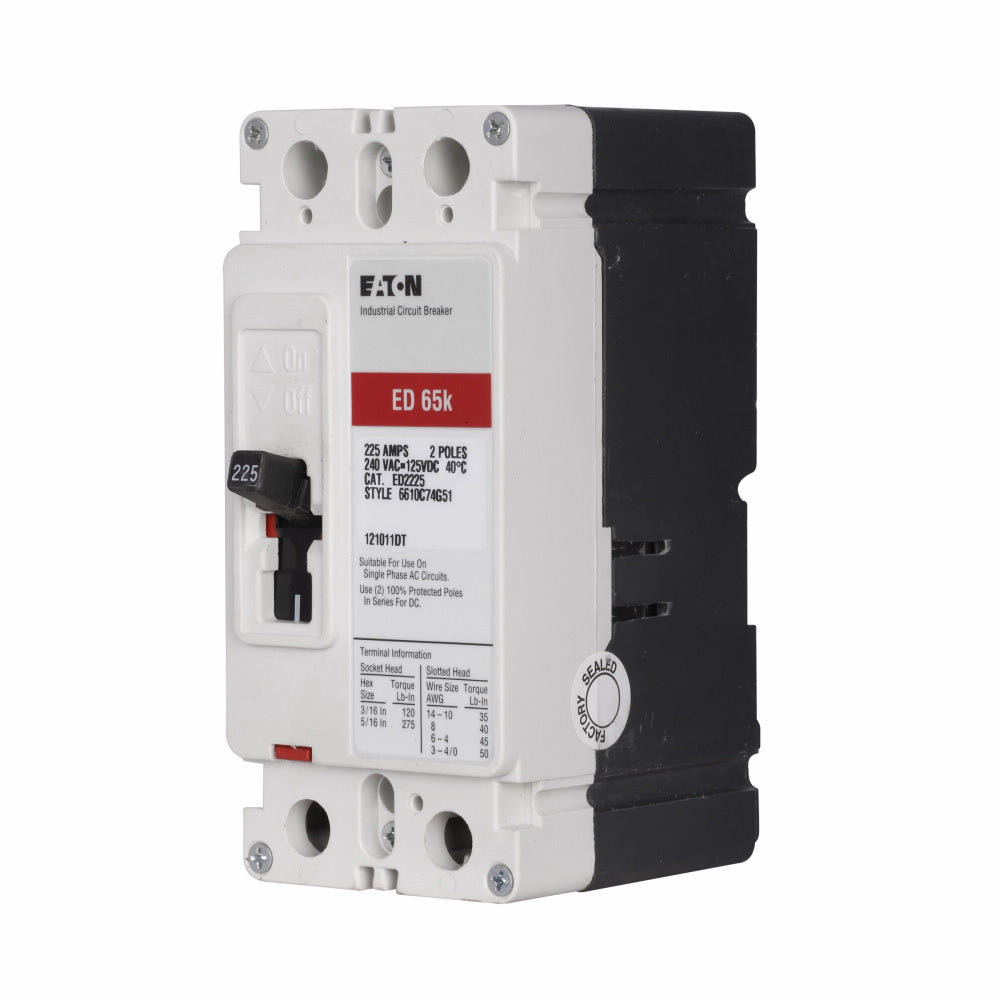

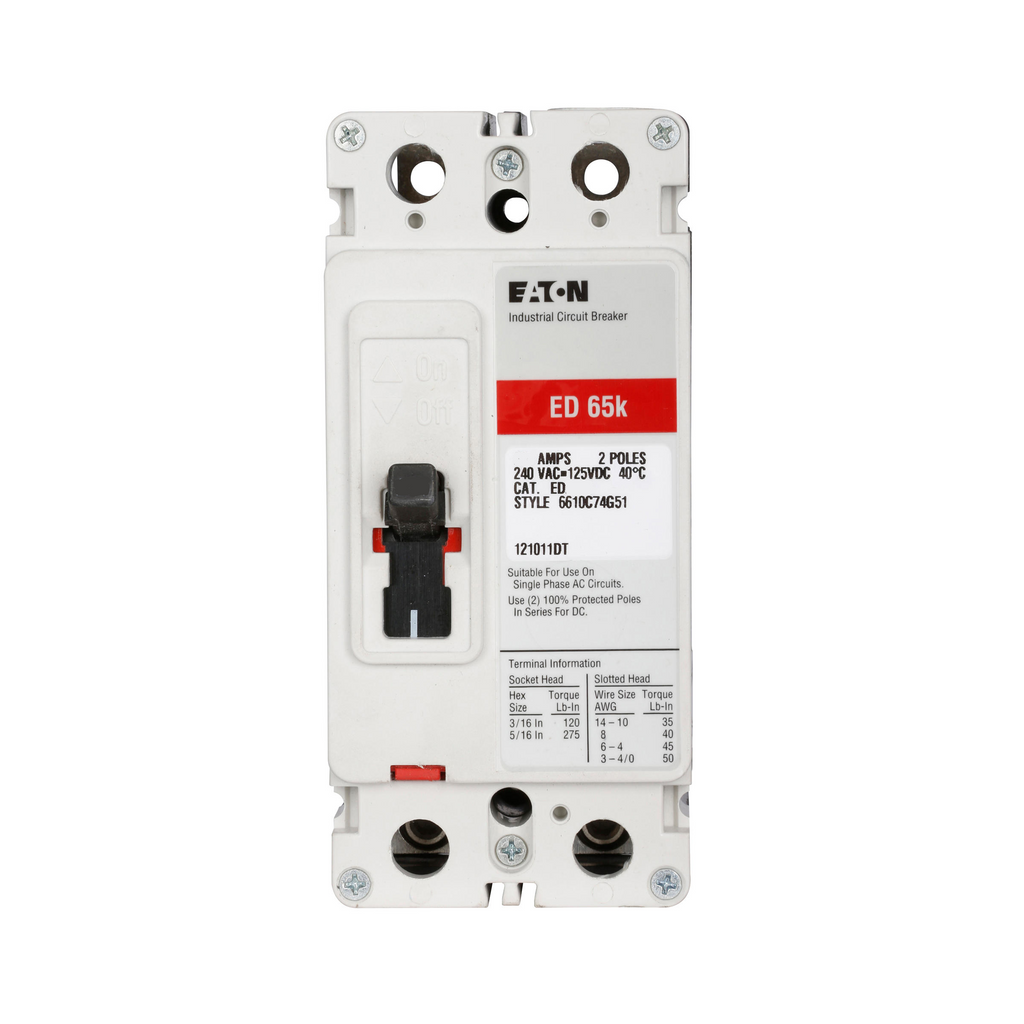

ED2225 is a Cutler Hammer molded case circuit breaker with a 225 amp rating and 2 poles designed for reliable circuit protection.This ED series breaker features a thermal magnetic trip unit, F-frame design, and bolt-on mounting. It is rated for 240 VAC and 125 VDC operation with a 65kA interrupt rating at 240 VAC. UL, CSA, and CE certifications ensure compliance with safety standards. The breaker includes load terminals and is suitable for 40°C ambient temperature operation.

• Manufacturer: Cutler Hammer (Eaton)
• Series: ED (Series C, F-Frame)
• Amperage: 225A
• Voltage Rating: 240 VAC / 125 VDC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 240 VAC, 10kA @ 125 VDC
• Trip Unit: Thermal Magnetic Fixed
• Dimensions (HxWxD): 6.0" x 2.75" x 3.38"
• Weight: Approx. 3.1 lbs
• Certifications: UL Listed, CSA, CE
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED2225
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : ED
• Voltage : 240
• Amperage : 225
• Phase : 2
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679456163
• GTIN : 00786679456163
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 2.9
• Certification : UL Listed
