Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
ECN1612AAA

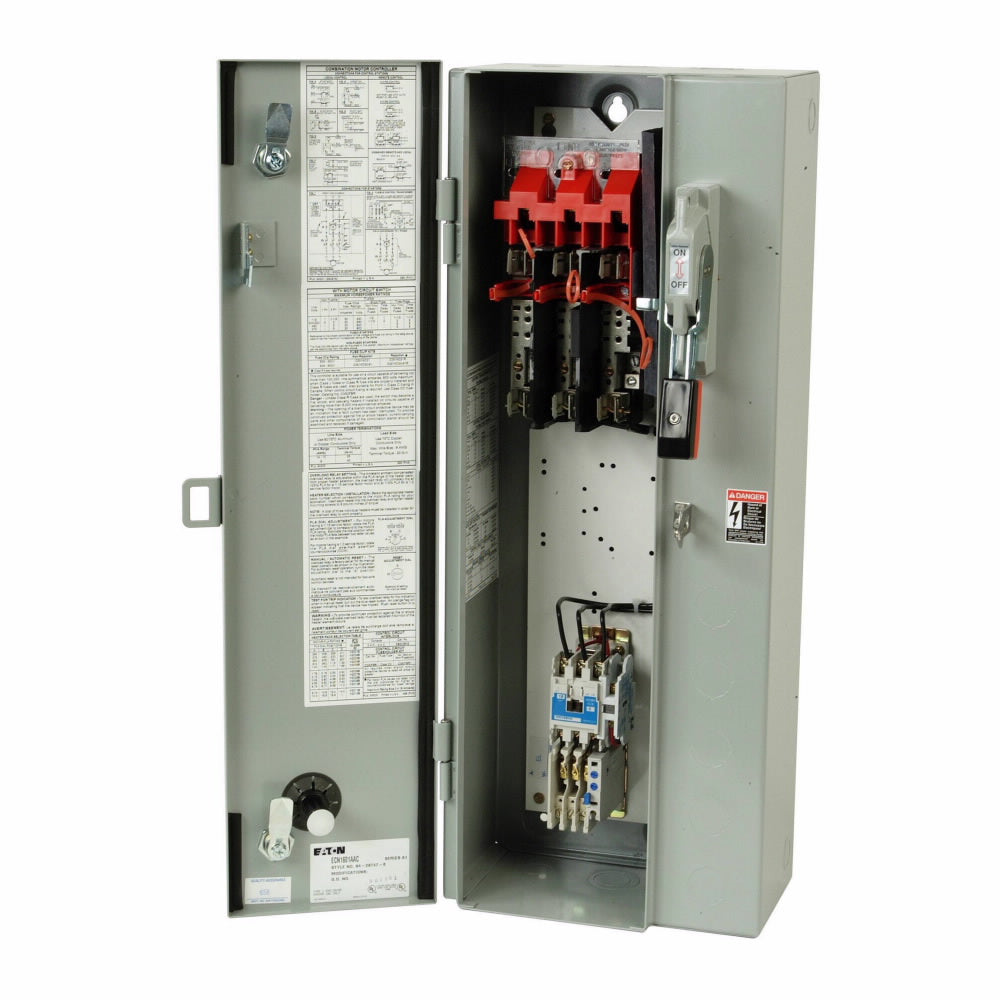

ECN1612AAA is a Cutler Hammer combination full voltage non-reversing motor starter designed for reliable motor control applications.This enclosed motor starter features a NEMA 3R rated enclosure suitable for outdoor or harsh environments, a 30 amp non-fusible disconnect, and operates on a 110/120 Volt AC coil at 50/60 Hz. It is a three-phase starter with NEMA size 1 construction and includes an adjustable bi-metallic ambient compensated overload relay with interchangeable heater packs for motor protection. The starter is UL listed and built to Eaton's quality standards.
- Key Specifications
- Amperage: 30 Amps Disconnect
- Voltage: 110/120 Volt AC Coil, 50/60 Hz
- Poles: 3-Phase
- Mounting Type: Enclosed NEMA 3R
- Interrupt Rating: Non-Fusible Disconnect
- Series/Frame: NEMA Size 1
- Trip Unit: Adjustable Bi-Metallic Overload Relay
- Certifications: UL Listed
- Type: Full Voltage, Non-Reversing
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: ECN1612AAA
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : ECN16
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- UPC : 782114017654
- GTIN : 00782114017654
- Country of Origin : United States
- Dimensions : 30.6 in x 11 in x 12.2 in (Length/Depth x Height x Width)
- Weight : 43.3
- Certification : UL Listed file E1491
