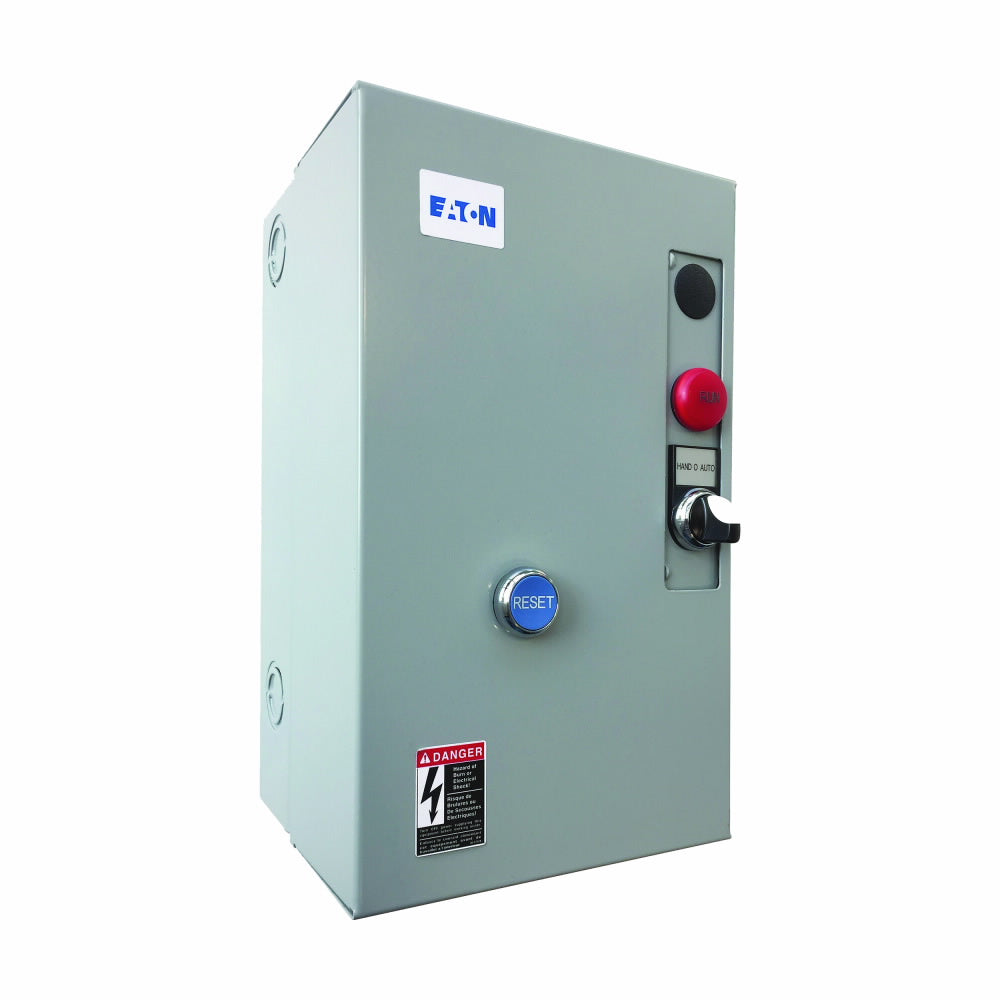

ECN0521EAA - Cutler Hammer Freedom Series 3-Pole Non-Reversing Motor Starter 208V NEMA 1

ECN0521EAA

ECN0521EAA is a Cutler Hammer Freedom Series 3-pole non-reversing motor starter designed for reliable motor control applications with a 208V coil voltage and NEMA 1 enclosure. This starter features a solid-state electronic overload relay, adjustable bimetallic ambient compensated overload protection, and snap-on accessories for flexible configuration. The unit supports straight-through wiring with line lugs at the top and load lugs at the bottom, and is suitable for horizontal or vertical panel mounting. The contactor magnet coil is encapsulated for durability and marked with voltage, frequency, and part number for easy identification.

• Manufacturer: Cutler Hammer
• Series: Freedom
• Starter Type: Non-Reversing
• Enclosure Type: NEMA 1
• Coil Voltage: 208 VAC
• Frequency: 60 Hz
• Number of Poles: 3
• Motor Power Rating: 10 hp at 200 VAC
• Overload Type: Solid-State Electronic
• Mounting: Horizontal or Vertical Panel
• Contact Configuration: 1 NO, 1 NC
• Standards: UL, CSA, IEC, VDE, BS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: ECN0521EAA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : ECN05
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 208 VAC
• Coil Voltage Minimum : 208
• Nema Starter Size : 2
• Frequency : 60 Hz

Product Data

• UPC : 782114016152
• GTIN : 00782114016152
• Country of Origin : United States
• Dimensions : 16.3 in x 9 in x 9.5 in (Length/Depth x Height x Width)
• Weight : 12.1
• Certification : UL Listed file E1491
