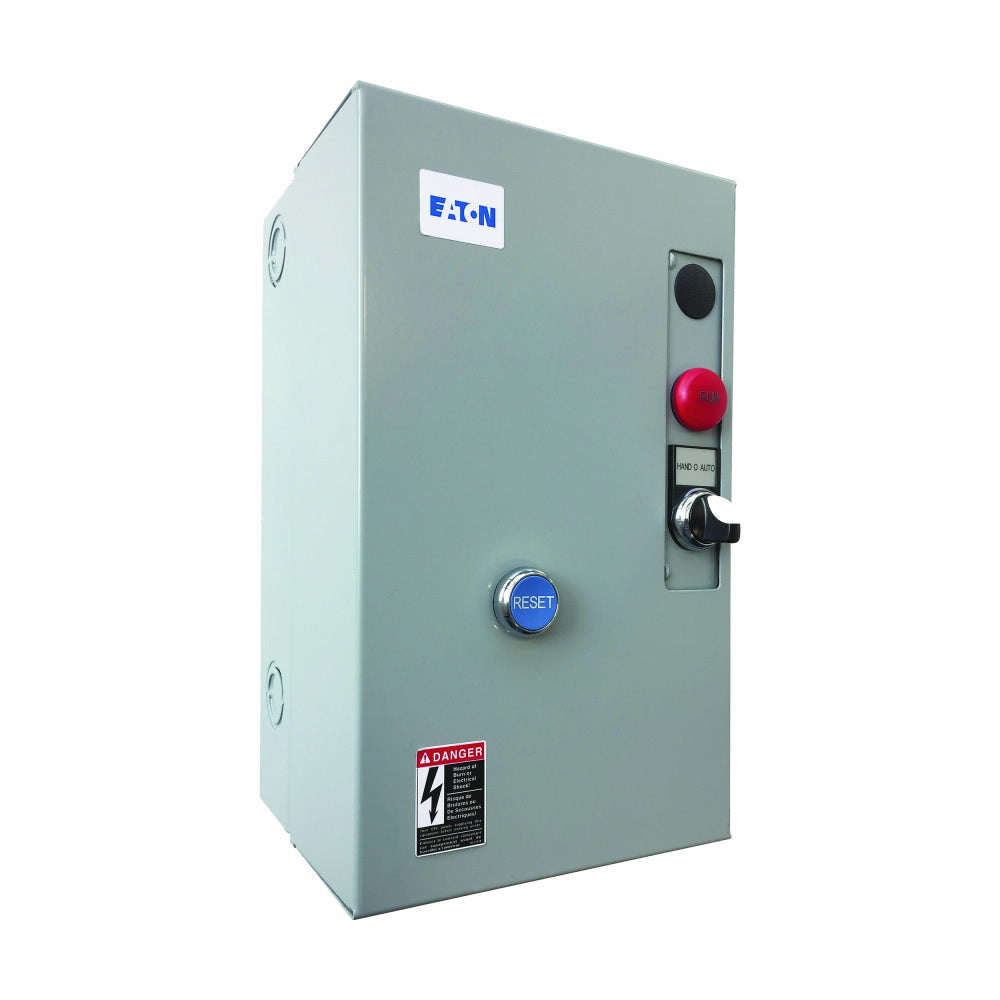

ECN0521BAA - Cutler Hammer Freedom Series 3-Pole Non-Reversing Non-Combination Full Voltage Motor Starter NEMA 1 220-240V 45A

ECN0521BAA

ECN0521BAA is a Cutler Hammer Freedom Series 3-pole non-reversing non-combination full voltage motor starter designed for reliable motor control in industrial applications. This starter features a NEMA 1 enclosure and is rated for 220-240V AC at 50-60 Hz, supporting up to 15 HP at 230V. It is suitable for general duty motor control and provides robust performance for a wide range of industrial needs. The ECN0521BAA is engineered for durability and ease of use, with a compact design and straightforward mounting. It is built to handle demanding environments and offers long service life with minimal maintenance. The starter is ideal for applications requiring dependable motor starting and protection without the need for reversing or combination features.

• Part Number: ECN0521BAA
• Manufacturer: Cutler Hammer
• Series: Freedom Series
• Number of Poles: 3
• Voltage Rating: 220-240V AC
• Frequency Rating: 50-60 Hz
• Motor Power Rating: 15 HP at 230V
• Enclosure Type: NEMA 1
• Mounting Type: Panel Mount
• Interrupt Rating: 45A
• Application: Non-Reversing Non-Combination Full Voltage Motor Starter
• Frame Size: NEMA Size 2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECN0521BAA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : ECN05
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 240

Product Data

• UPC : 782114016138
• GTIN : 00782114016138
• Country of Origin : United States
• Dimensions : 7.62 in x 12.6 in x 6 in (Length/Depth x Height x Width)
• Weight : 11.5 lb
• Certification : UL Listed file E1491
