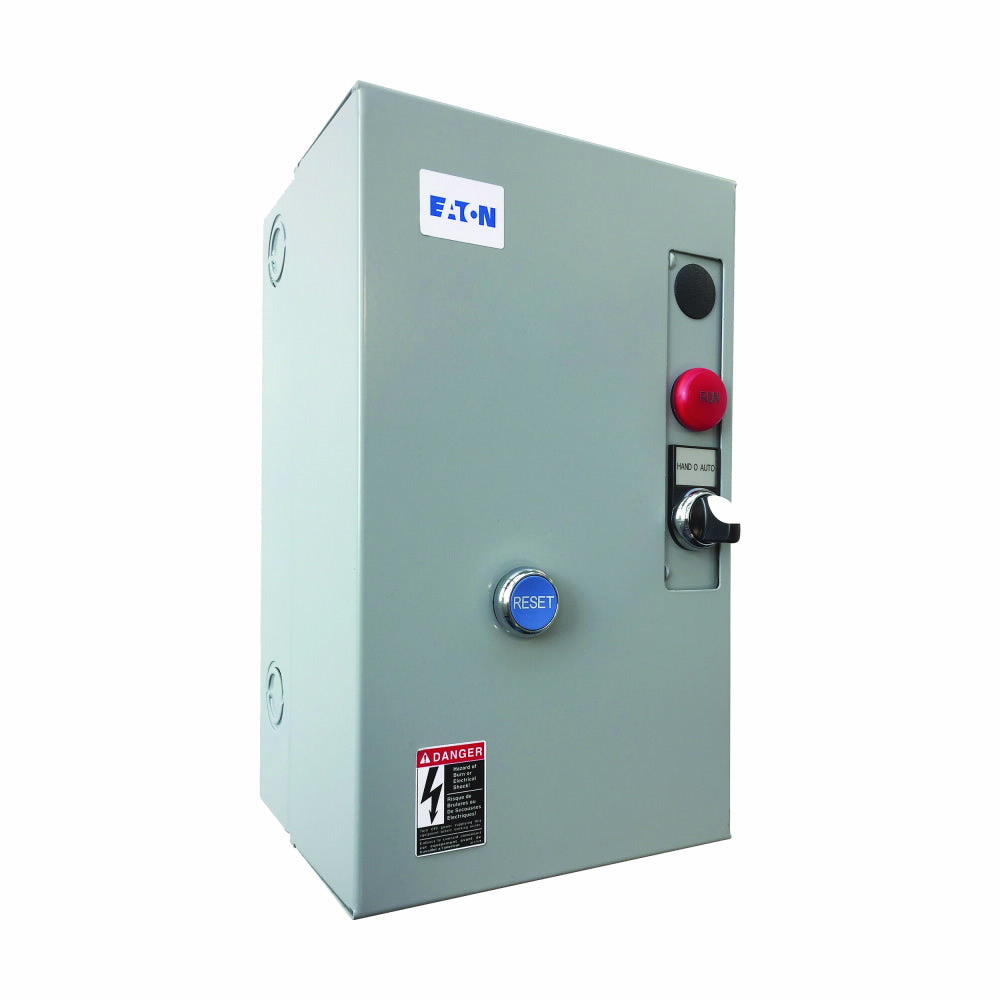

ECN0521AAA - Cutler Hammer Freedom NEMA 1 Non-Reversing Motor Control Starter 110V Coil, Size 2

ECN0521AAA

ECN0521AAA is a Cutler Hammer Freedom NEMA 1 non-reversing motor control starter with a 110V/50Hz-120V/60Hz coil voltage and NEMA size 2 frame.This motor starter is designed for general duty control with a non-combination, non-reversing configuration. It supports up to 20 HP at 460V and is rated for 2,000,000 electrical and 20,000,000 mechanical operations. The unit measures 7.62 inches in length, 12.6 inches in height, and 6 inches in width, weighing approximately 11.5 pounds.

Key Specifications
• Manufacturer: Cutler Hammer
• Part Number: ECN0521AAA
• Series: Freedom
• Mounting Type: NEMA 1 Enclosed
• Frame Size: NEMA Size 2
• Coil Voltage: 110V/50Hz - 120V/60Hz
• Poles: Non-Reversing
• Interrupt Rating: Suitable for general duty control
• Horsepower Rating: Up to 20 HP @ 460V
• Electrical Operations: 2,000,000
• Mechanical Operations: 20,000,000
• Dimensions: 7.62" L x 12.6" H x 6" W
• Weight: 11.5 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Non-Reversing




Specifications

• Part Number: ECN0521AAA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : ECN05
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 110 VAC
• Coil Voltage Minimum : 120
• Nema Starter Size : 2
• Frequency : 50 Hz



Product Data

• UPC : 782114016121
• GTIN : 00782114016121
• Country of Origin : United States
• Dimensions : 7.62 in x 12.6 in x 6 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed file E1491
