Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
ECN0511EAA

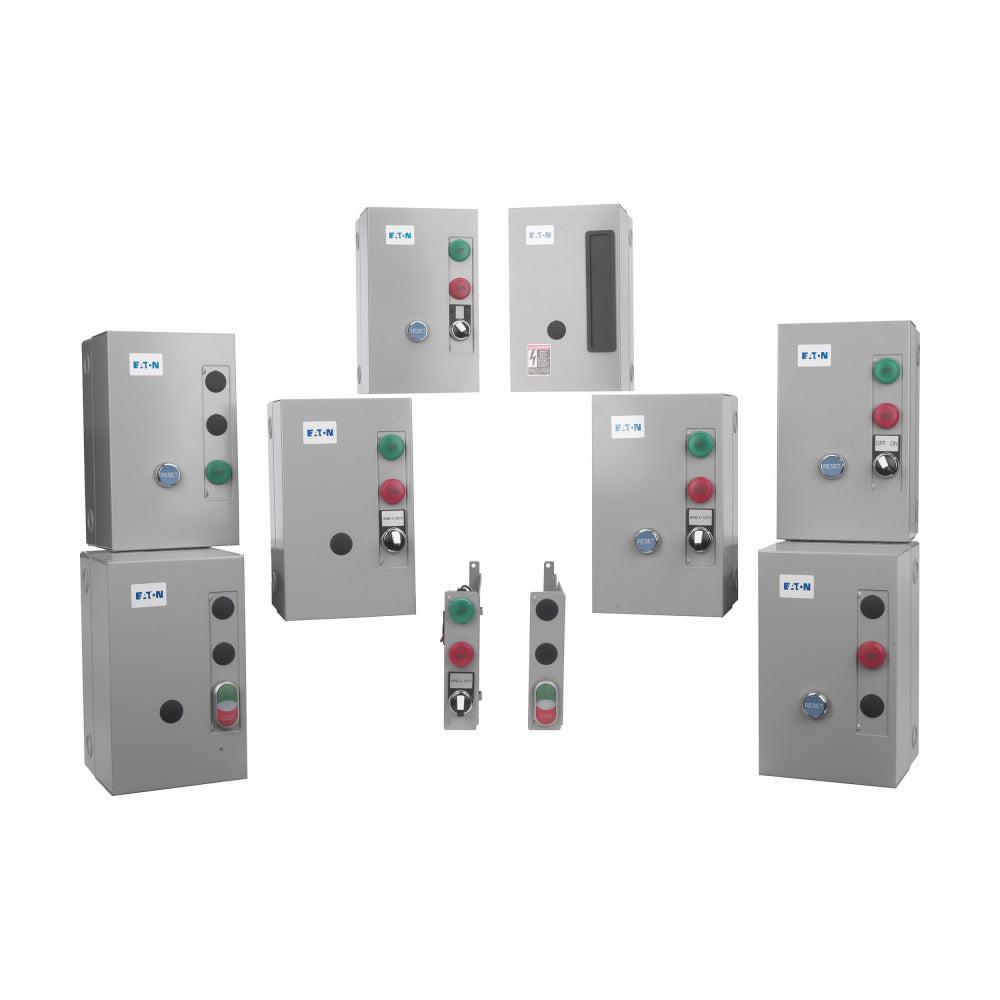

ECN0511EAA is a Cutler Hammer Freedom Series motor starter designed for reliable motor control applications.This 3 pole, non-reversing motor starter supports up to 27 amps and operates at 600 volts with a 208V coil voltage. It features a NEMA 1 enclosure and includes a 4-20A solid-state electronic overload relay for motor protection. The starter is UL listed and sized as NEMA Size 1, suitable for general purpose motor control with a 7.5 HP rating at 200 VAC.
- Key Specifications
- Amperage: 27 Amps
- Voltage: 600V
- Coil Voltage: 208V AC, 60 Hz
- Poles: 3
- Enclosure: NEMA 1
- Type: Non-combination non-reversing starter
- Size: NEMA Size 1
- Overload Relay: 4-20A solid-state electronic
- Motor Power Rating: 7.5 HP at 200 VAC
- Certifications: UL Listed
- Part Number: ECN0511EAA
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : ECN05
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 208
- Coil Voltage Minimum : 208
- Nema Rating : 1
- Enclosure : 1
- Compatible Frames : DK,KD,KDB,HKD,HKDB,KDC,CKD,CHKD
- UPC : 782114016008
- GTIN : 00782114016008
- Country of Origin : United States
- Dimensions : 11.8 in x 7.4 in x 7.6 in (Length/Depth x Height x Width)
- Weight : 7.4 lb
- Certification : UL Listed file E1491
