Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
ECN0511BAA

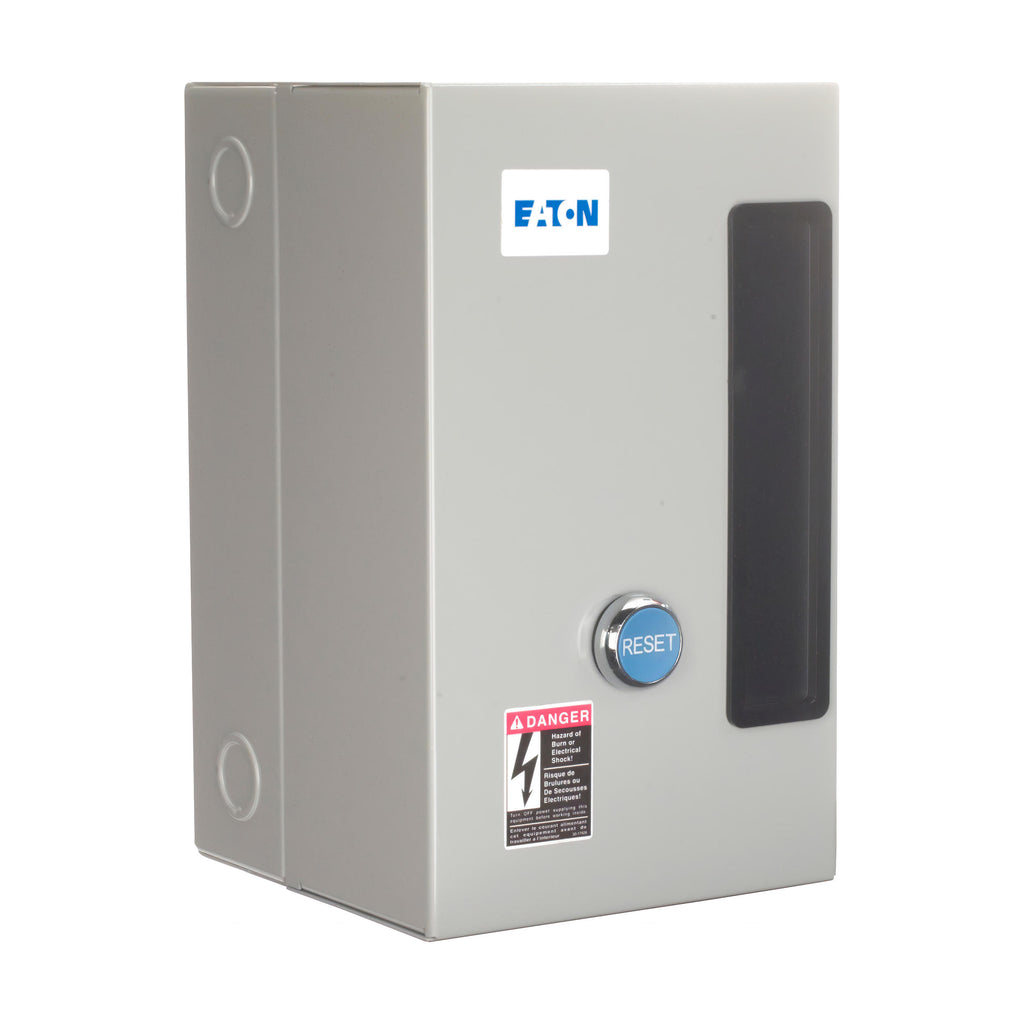

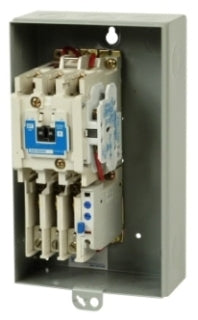

ECN0511BAA is a Cutler Hammer Freedom Series motor control starter designed for reliable motor starting applications.This motor starter features a 27 amp rating, 3 poles, and a 240V coil voltage compatible with 220V/50 Hz to 240V/60 Hz power supplies. It is a non-combination, non-reversing starter housed in a NEMA 1 enclosure with a NEMA size 1 frame. The starter is UL Listed (file E1491) and suitable for standard motor control needs.
- Key Specifications
- Amperage: 27A
- Voltage: 220V/50 Hz - 240V/60 Hz coil voltage
- Poles: 3
- Type: Non-combination non-reversing starter
- Enclosure: NEMA 1
- Size/Frame: NEMA size 1
- Certifications: UL Listed file E1491
- Weight: 7.5 lb
- Dimensions: 11.6 in depth, 7.5 in height, 7.5 in width
- Manufacturer Warranty: 1 year
- Part Number: ECN0511BAA
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Freedom Series
- Type : ECN05
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 240
- Nema Rating : 1
- Enclosure : 1
- UPC : 782114015988
- GTIN : 00782114015988
- Dimensions : 11.6 in x 7.5 in x 7.5 in (Length/Depth x Height x Width)
- Weight : 7.5 lb
