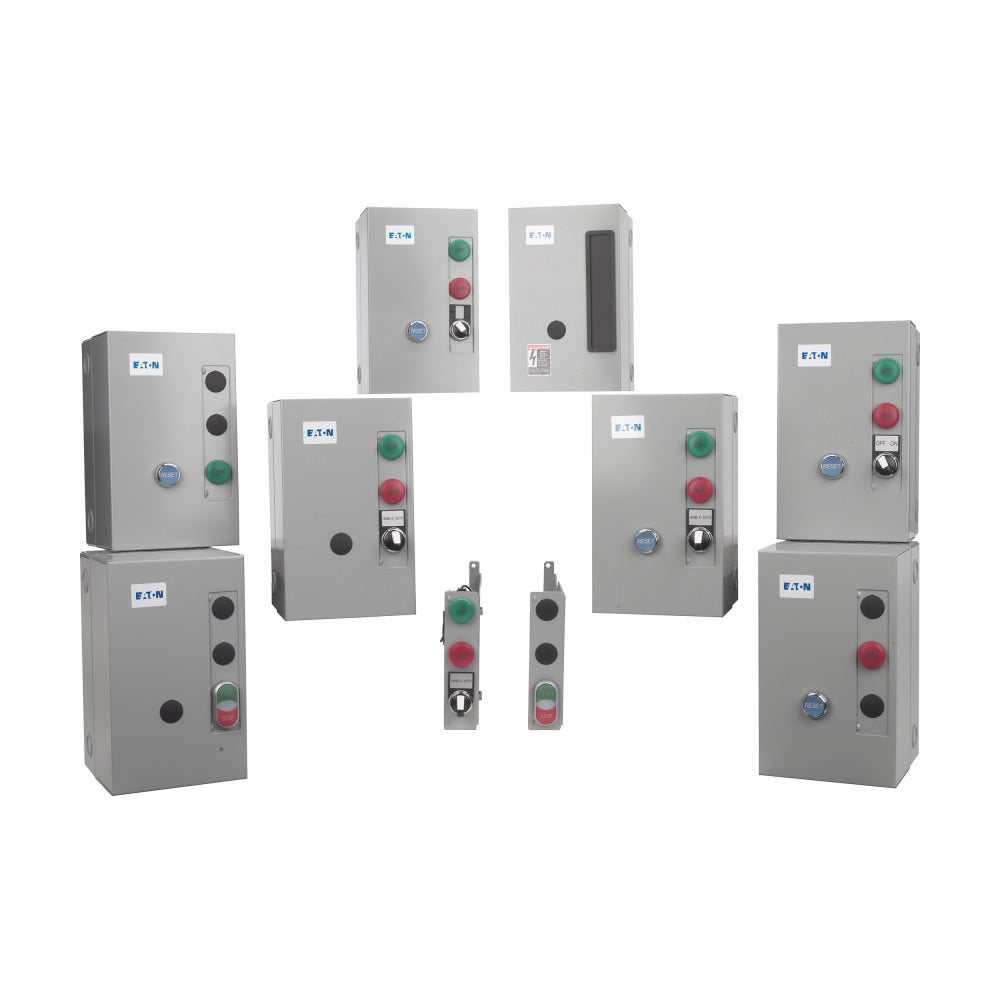

ECN0501BAA - Cutler Hammer Eaton Freedom NEMA Motor Starter, 18 Amp, 240V Coil, NEMA 1 Enclosed, Non-Reversing, 3 HP 1-Phase, NEMA Size 0

ECN0501BAA

ECN0501BAA is a Cutler Hammer Eaton Freedom NEMA motor starter designed for reliable motor control in industrial and commercial applications.

This non-combination, non-reversing starter features a 240V coil, NEMA 1 enclosed construction, and is rated for 3 HP at 1-phase. It is engineered for durability and compliance with major safety standards, making it suitable for a wide range of motor control needs.

Key Specifications
• Amperage: 18 A
• Voltage: 220V/50 Hz–240V/60 Hz
• Poles: Not specified in available data
• Mounting Type: Panel or surface (NEMA 1 enclosed)
• Interrupt Rating: Not specified in available data
• Series/Frame: Freedom Series, NEMA Size 0
• Trip Unit: Not specified in available data
• Certifications: ABS Type Approved, cUL Listed, IEC 947 Type 2, OSHPD Certified (OSP-0015-10), UL Listed
• Horsepower: 3 HP at 1-phase
• Enclosure Type: NEMA 1, enclosed
• Overall Dimensions: 254.2 mm H x 152.3 mm W x 151.8 mm D (10.01 in x 6 in x 5.98 in)
• Non-reversing, non-combination starter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECN0501BAA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 4
• Amperage : 18
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 240
• Compatible Frames : DK,KD,KDB,HKD,HKDB,KDC,CKD,CHKD

Product Data

• UPC : 78211401580
• GTIN : 00782114015803
• Country of Origin : United States
• Dimensions : 11.6 in x 7.4 in x 7.7 in (Length/Depth x Height x Width)
• Weight : 5.5
• Certification : UL Listed file E1491
