Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
ECL03C1A9A

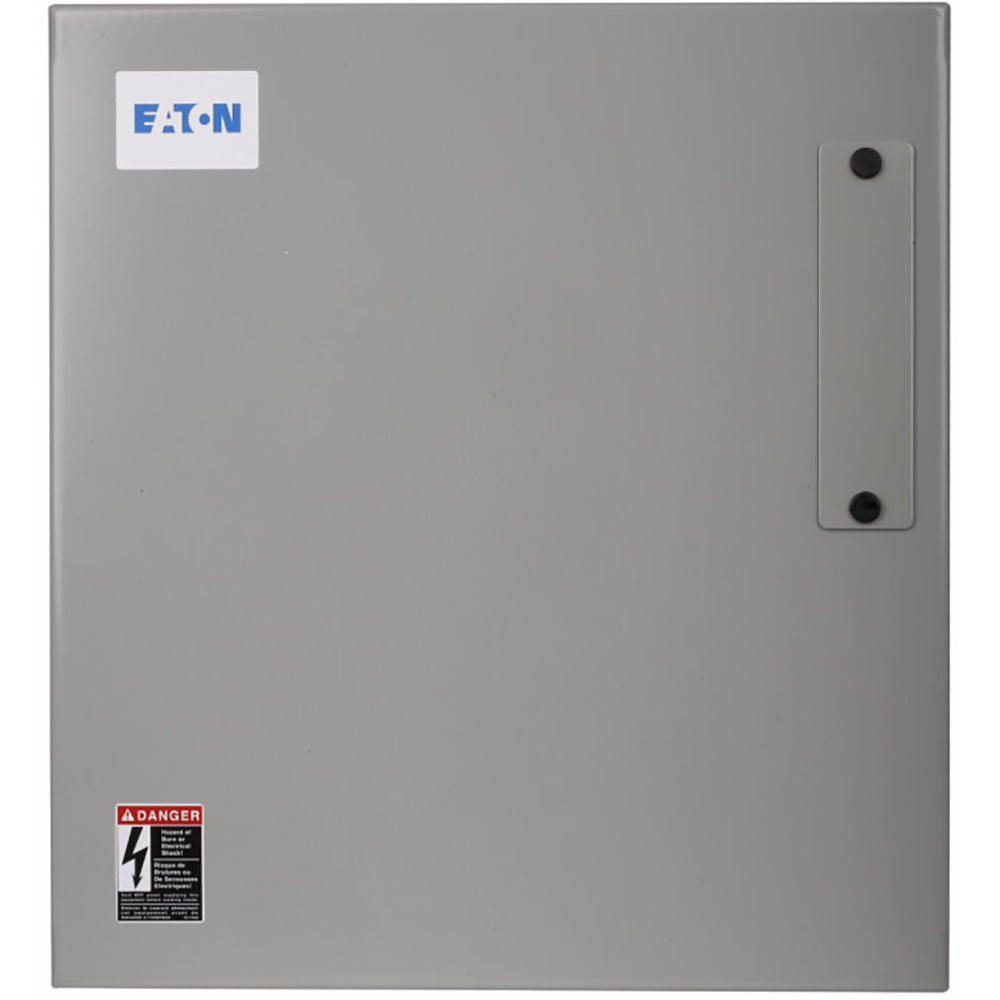

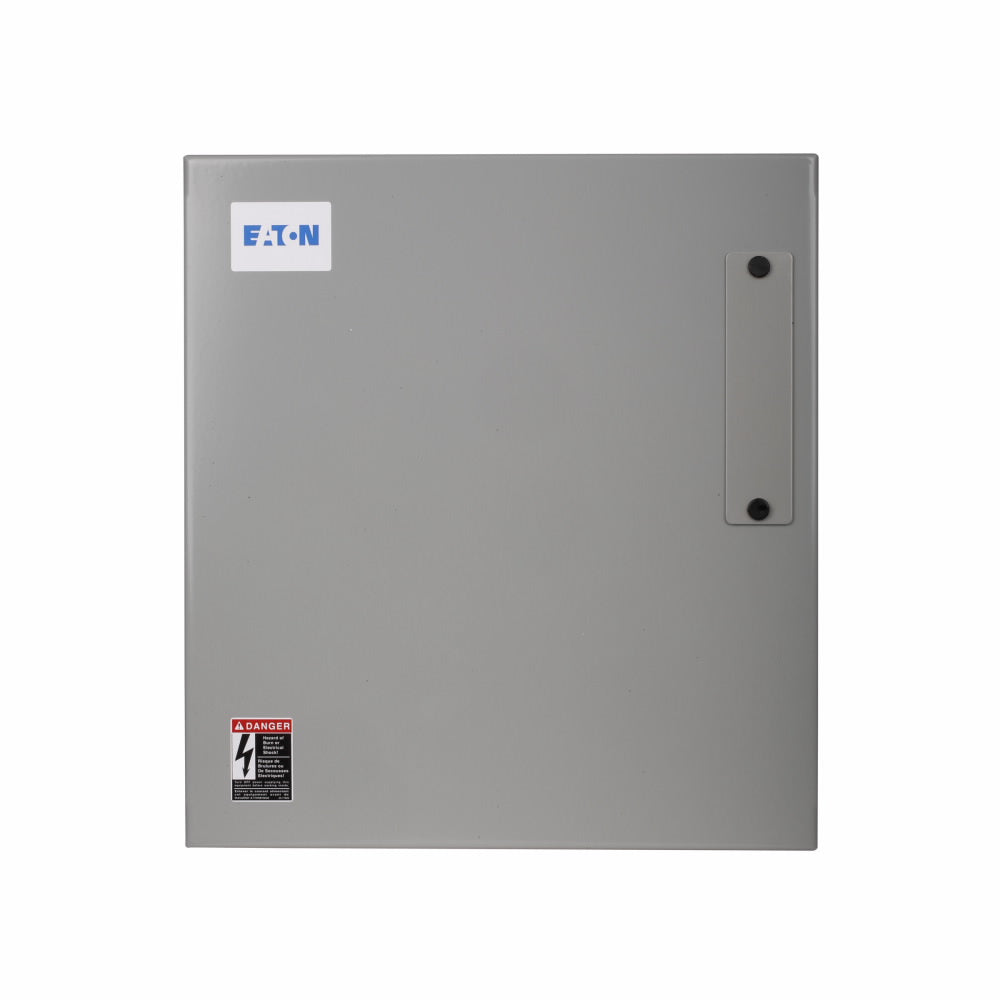

ECL03C1A9A is a Cutler Hammer electrically held lighting contactor designed for reliable lighting control applications.This 30 amp, 9-pole contactor features a 120V coil voltage (110-120 Vac, 50/60 Hz) and is part of the Eaton CN35 series. It is constructed with painted steel and rated for NEMA 1 environments. The contactor is engineered to handle large initial inrush currents typical of tungsten lamp loads without contact welding, ensuring durability and long service life.
- Amperage Rating: 30A
- Number of Poles: 9
- Coil Voltage: 110-120 Vac, 50/60 Hz
- Type: Electrically Held Lighting Contactor
- Series/Frame: CN35
- Mounting: Enclosed, NEMA 1
- Material: Painted Steel
- Designed for tungsten lamp inrush currents
Specifications
- Part Number: ECL03C1A9A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class ECL03
- Type : ECL03
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 9
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
Product Data
- UPC : 782114016886
- GTIN : 00782114016886
- Country of Origin : United States
- Dimensions : 7.73 in x 13.21 in x 5.84 in (Length/Depth x Height x Width)
- Weight : 13.1
- Certification : cUL Listed,UL Listed
