Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
ECL03C1A6A

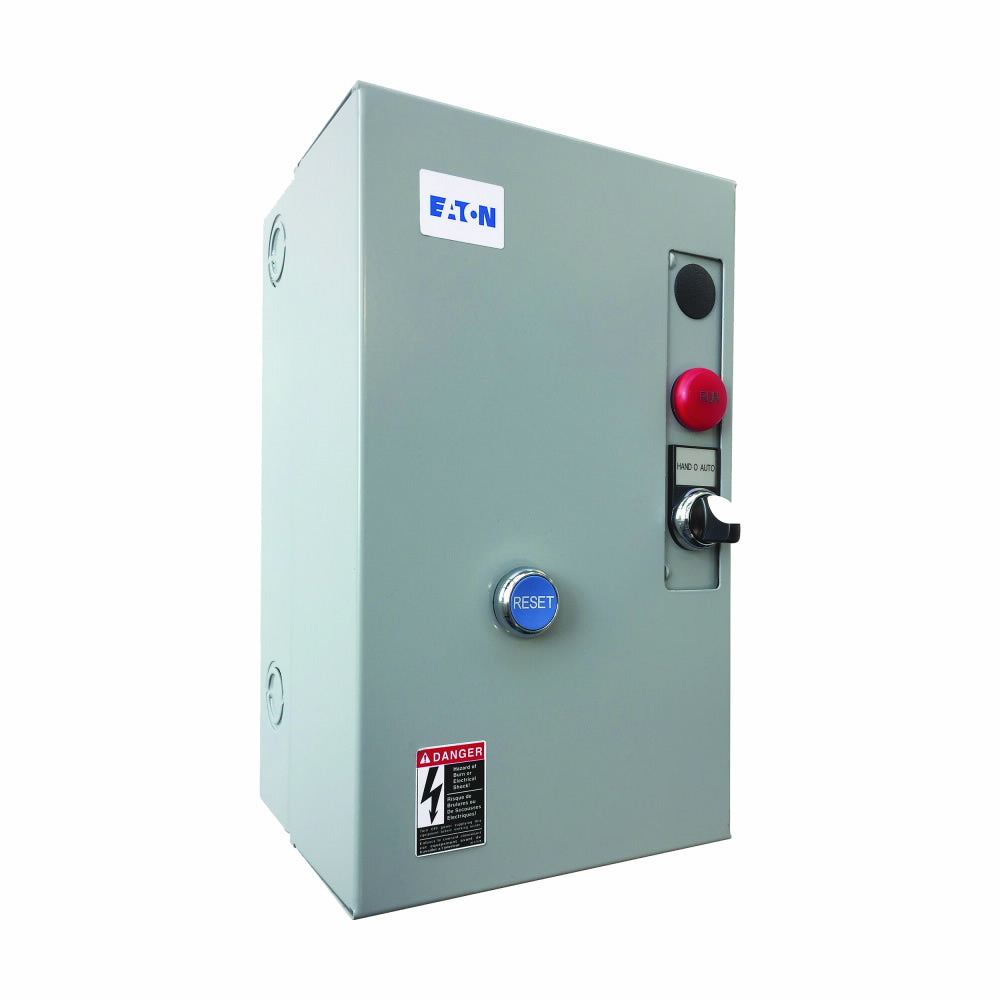

ECL03C1A6A is a Cutler Hammer 30 amp electrically held lighting contactor designed for 3-phase motor control applications.This contactor features a 6-pole configuration with a coil voltage of 110-120V AC at 50/60 Hz. It is built with a painted steel NEMA 1 enclosure and a 45 mm frame size. The contactor is part of the Eaton CN35 series and supports a maximum load voltage of 480V for tungsten lamp applications and 600V for ballast or mercury vapor types. It includes an ON/OFF pushbutton accessory and is UL and cUL listed for safety and reliability.
- Key Specifications
- Amperage Rating: 30A
- Coil Voltage: 110-120V AC, 50/60 Hz
- Number of Poles: 6
- Enclosure Type: NEMA 1
- Enclosure Material: Painted Steel
- Frame Size: 45 mm
- Series: Eaton CN35
- Operation: Electrically Held
- Contact Rating: 30A
- Certifications: UL Listed, cUL Listed
- Accessory: ON/OFF Pushbutton
- Weight: Approximately 13 lbs
Specifications
- Part Number: ECL03C1A6A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class ECL03
- Type : ECL03
- Voltage : 4
- Amperage : 30
- Phase : 3
- Poles : 6
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Compatible Frames : DK,KD,KDB,HKD,HKDDC,HKDB,KDC,CKD,CHKD,E2K,E2KM
Product Data
- UPC : 782114016879
- GTIN : 00782114016879
- Country of Origin : United States
- Dimensions : 7.62 in x 12.6 in x 6 in (Length/Depth x Height x Width)
- Weight : 13 lb
- Certification : cUL Listed,UL Listed
