Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Enclosure
Description
ECC225R

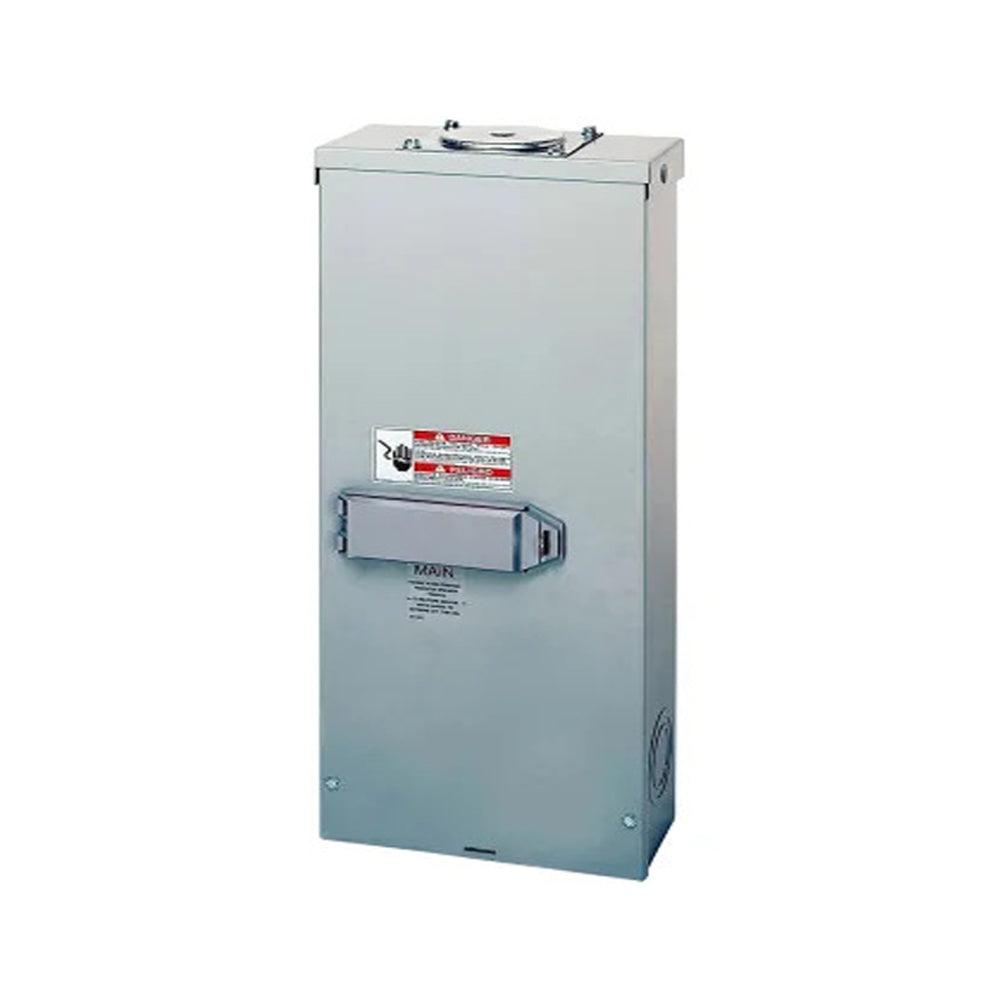

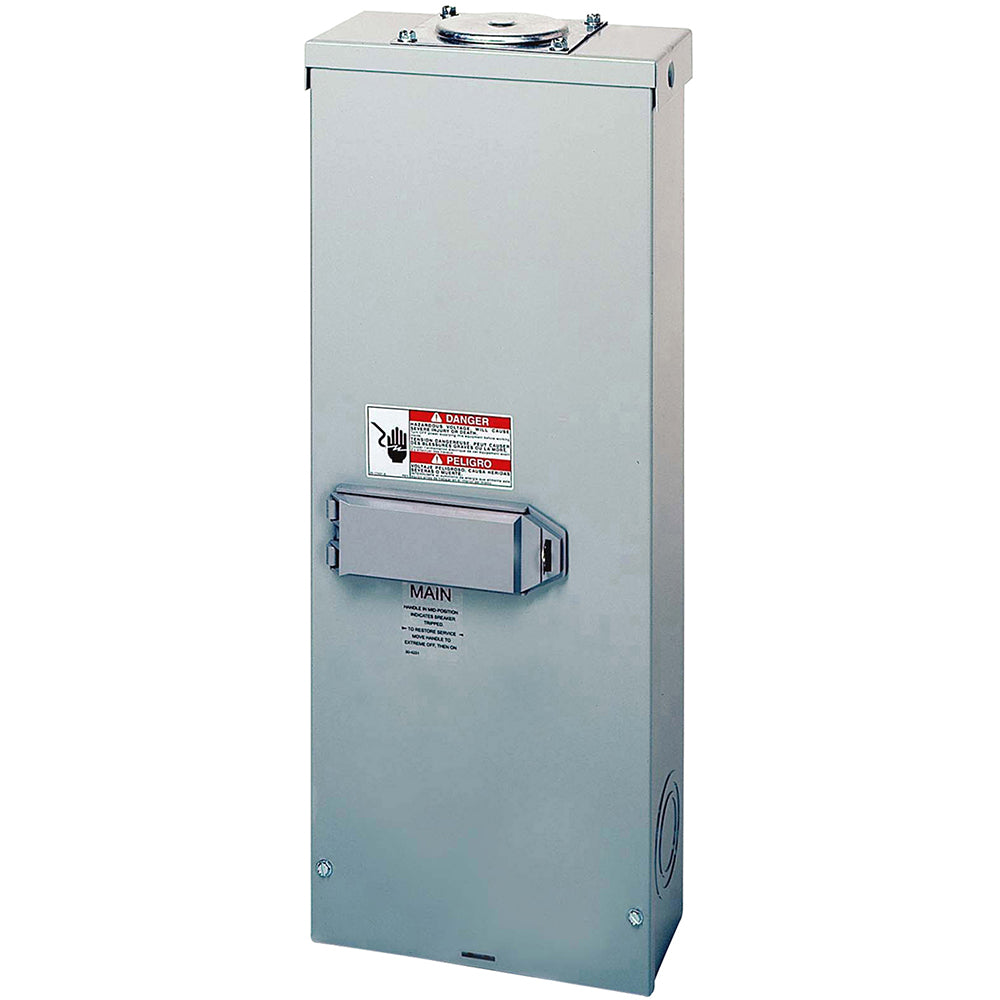

ECC225R is a NEMA 3R rated circuit breaker enclosure designed for outdoor use, compatible with Cutler Hammer CC series molded case circuit breakers. This enclosure provides durable protection for 2-pole and 3-pole breakers up to 225A and 240V, making it ideal for residential and light commercial applications. Constructed from steel, the ECC225R features a surface-mount design for easy installation and reliable weatherproof performance. The enclosure is UL Listed and approved for service entrance use, with a factory-installed ground lug and pre-drilled holes for additional grounding options. It is suitable for both single-phase and three-phase systems, offering flexibility for various electrical configurations.
- Part Number: ECC225R
- Manufacturer: Cutler Hammer
- Amperage Rating: 225A
- Voltage Rating: 240V
- Poles: 2-Pole and 3-Pole
- Mounting Type: Surface Mount
- Interrupt Rating: 10 kAIC
- Enclosure Type: NEMA 3R
- Series/Frame: ECC Series
- Material: Steel
- Certifications: UL Listed
- Application: Outdoor, Service Entrance
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: ECC225R
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Family : CC Series
- Type : ECC
- Voltage : 240
- Amperage : 225
- Phase : 3
- Nema Rating : 3R
- Compatible Frames : CC
Product Data
- UPC : 782114225219
- GTIN : 00782114225219
- Dimensions : 5.5 in x 25 in x
- Weight : 18
