ECB32030G3 - Square D 30A 3-Pole Molded Case Circuit Breaker 240V 65kA AIC Bolt-On Mounting

Save $24.37
SKU: ECB32030G3-New
Condition: New
Price:
$865.63 $890.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

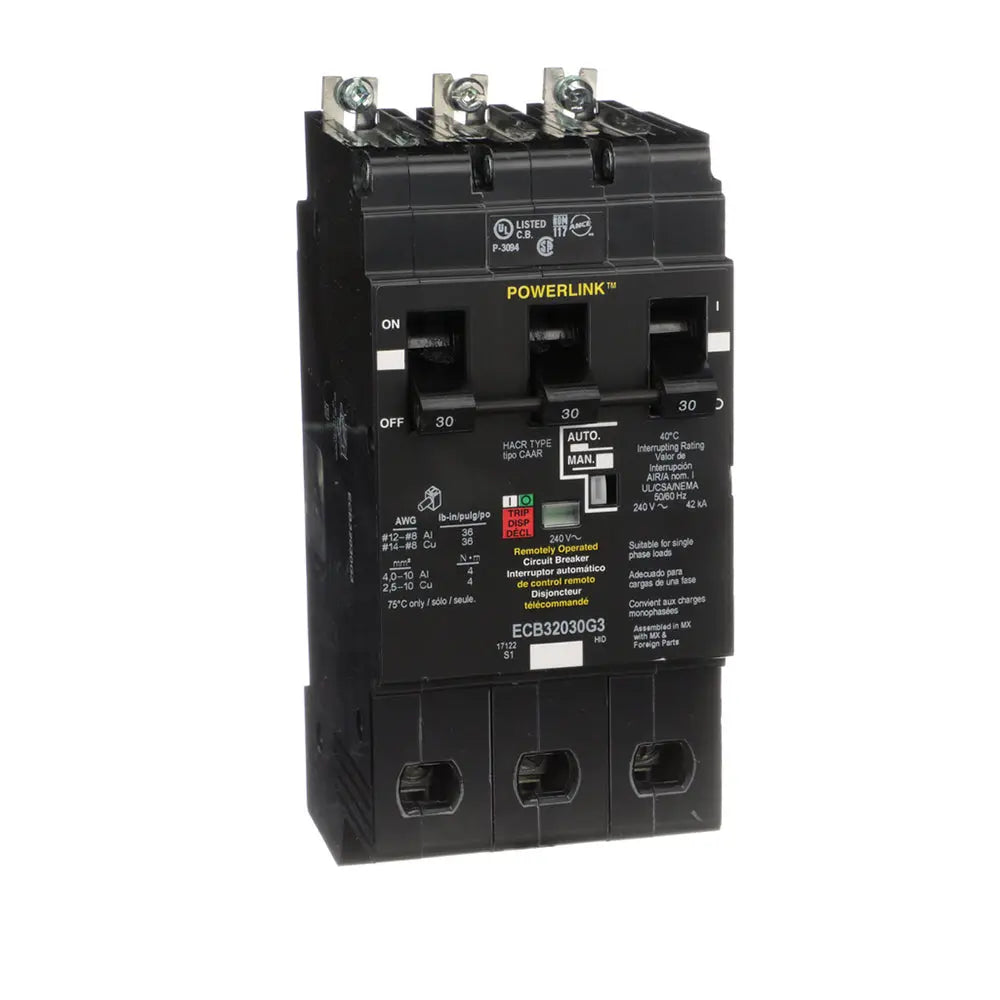

ECB32030G3 - Square D Bolt-On 240V 30A 3 pole circuit breaker 65kA@240V - Essential Electric Supply
ECB32030G3 - Square D Bolt-On 240V 30A 3 pole circuit breaker 65kA@240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
ECB32030G3 - Square D Bolt-On 240V 30A 3 pole circuit breaker 65kA@240V - Essential Electric Supply
ECB32030G3 - Square D Bolt-On 240V 30A 3 pole circuit breaker 65kA@240V - Essential Electric Supply

Description

ECB32030G3


ECB32030G3 is a 30A, 3-pole molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems.This Square D Powerlink G3 series breaker features a 240VAC voltage rating, 65kA interrupting capacity at 240V, and bolt-on mounting for secure installation. It is suitable for use in lighting panels and general power circuits, offering HID and HACR ratings for versatile applications.
  • Part Number: ECB32030G3
  • Manufacturer: Square D
  • Series: Powerlink G3
  • Amperage: 30A
  • Poles: 3
  • Voltage: 240VAC
  • Interrupting Rating: 65kA@240V
  • Mounting Type: Bolt-On
  • Frame Type: ECB
  • Switching Duty: HID, HACR Rated
  • Wire Size: 10-8 AWG Copper, 12-8 AWG Aluminum
  • Certifications: UL 489, UL 1066, ANSI C37
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: ECB32030G3
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerlink
  • Type : ECB-G3
  • Voltage : 240
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Bolted Connection
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al)
  • Breaker Type : ECB-G3
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901300175
  • GTIN : 00785901300175
  • Country of Origin : Mexico
  • Weight : 3.79
  • Standards : UL Listed, CSA
  • Certification : UL Listed, CSA
  • Wire Size : AWG 12 to AWG 8, AWG 10 to AWG 8, Aluminum/Copper
