ECB14020G3 - Square D 20A 480V 1P Bolt-On Remotely Operated Power Link Molded Case Circuit Breaker, ECB-G3 Series, Thermal-Magnetic Trip, HACR, SWD

Save $39.71
SKU: ECB14020G3-New
Condition: New
Price:
$197.29 $237.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

ECB14020G3 - Square D Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply

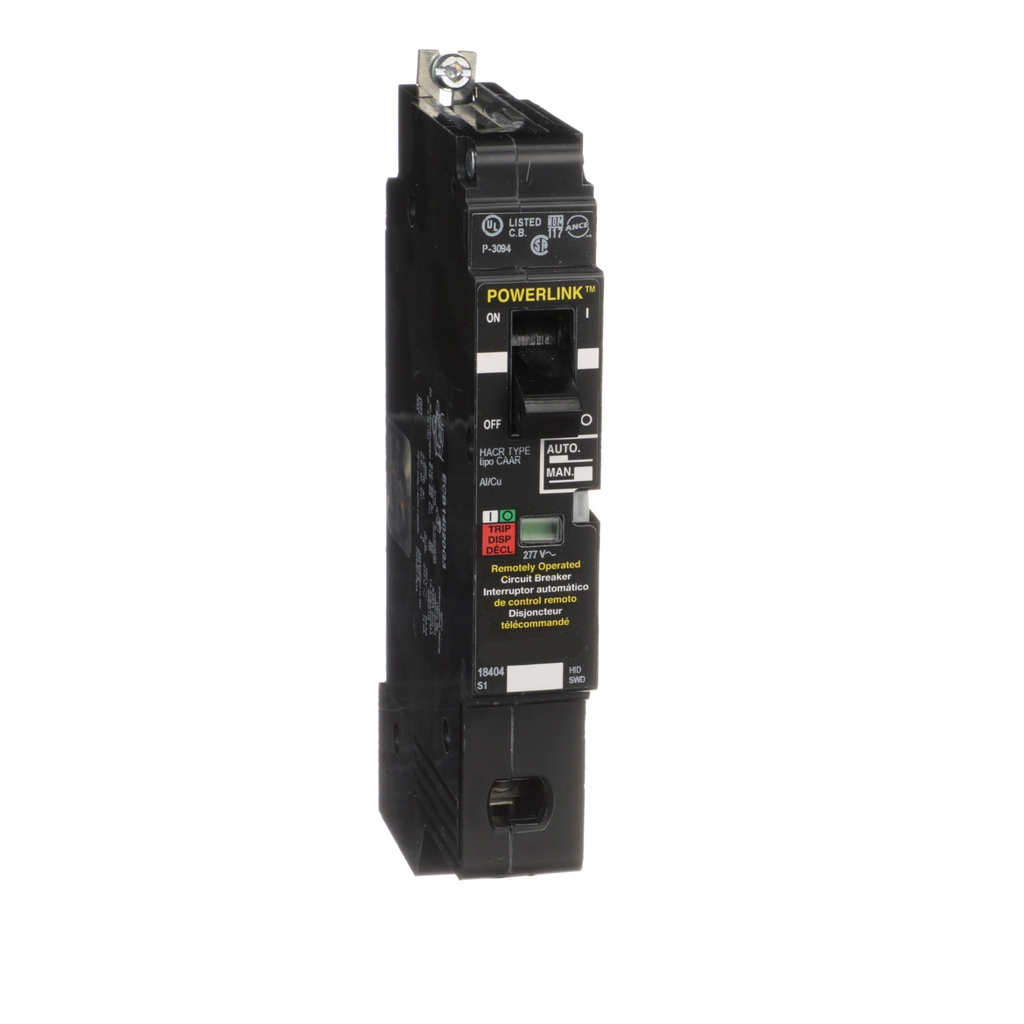

ECB14020G3 - Square D 20A 480V 1P Bolt-On Remotely Operated Power Link Molded Case Circuit Breaker, ECB-G3 Series, Thermal-Magnetic Trip, HACR, SWD - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

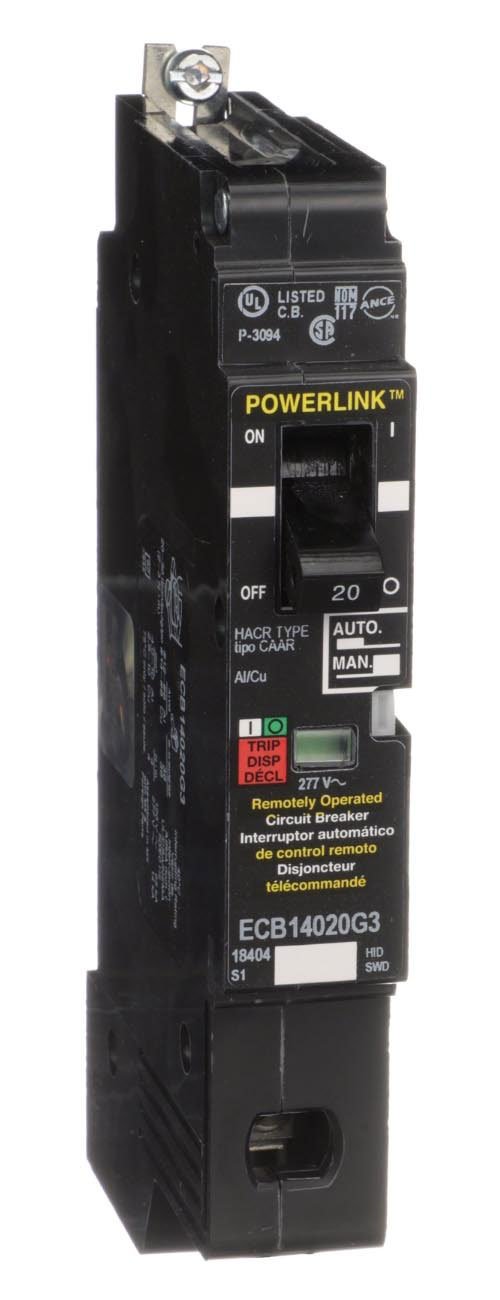

ECB14020G3 - Square D Bolt-On 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
ECB14020G3 - Square D 20A 480V 1P Bolt-On Remotely Operated Power Link Molded Case Circuit Breaker, ECB-G3 Series, Thermal-Magnetic Trip, HACR, SWD - Essential Electric Supply

Description

ECB14020G3


ECB14020G3 is a Square D remotely operated, bolt-on molded case circuit breaker designed for reliable power distribution and lighting control applications.

This single-pole breaker features a 20A rating, 480Y/277V voltage, and is part of the ECB-G3 series. It offers a thermal-magnetic trip unit with long-time and instantaneous (LI) protection, a 14kA interrupt rating at 480V, and is certified for HACR and SWD applications. The motorized mechanism allows for remote operation, and a manual override ensures control in emergencies. Contact status indication provides accurate branch circuit status at remote locations.

    Key Specifications
  • Part Number: ECB14020G3
  • Manufacturer: Square D
  • Amperage: 20A
  • Voltage: 480Y/277V
  • Poles: 1
  • Mounting Type: Bolt-on
  • Interrupt Rating: 14kA at 480V
  • Series/Frame: ECB-G3
  • Trip Unit: Thermal-magnetic, LI (Long-Time & Instantaneous)
  • Certifications: HACR, SWD
  • Operation: Remotely operated (24V DC motor), manual override
  • Contact Status: Remote indication
  • Typical Use: Power Link lighting control systems, branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: ECB14020G3
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerlink
  • Type : ECB-G3
  • Voltage : 480
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 14kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Bolted Connection
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG (Cu/Al)
  • Breaker Type : ECB-G3
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901000976
  • GTIN : 00785901000976
  • Country of Origin : Mexico
  • Dimensions : Width 26.38 in (670.05 mm) Height 39 in (990.60 mm)
  • Weight : 1.39
  • Standards : UL Listed, CSA
  • Certification : UL Listed, CSA
  • Wire Size : AWG 12 to AWG 8, AWG 10 to AWG 8, Copper/Aluminum
