E57FAL12A2SA-M - Eaton 2-Wire AC Tubular Metal Faced Inductive Proximity Sensor, 20-250V AC, 100mA, 2mm Sensing, Shielded, NEMA 4/4X/6/6P/12/13, IP67, Stainless Steel, 3-Pin Micro Connector, E57 Series

E57FAL12A2SA-M

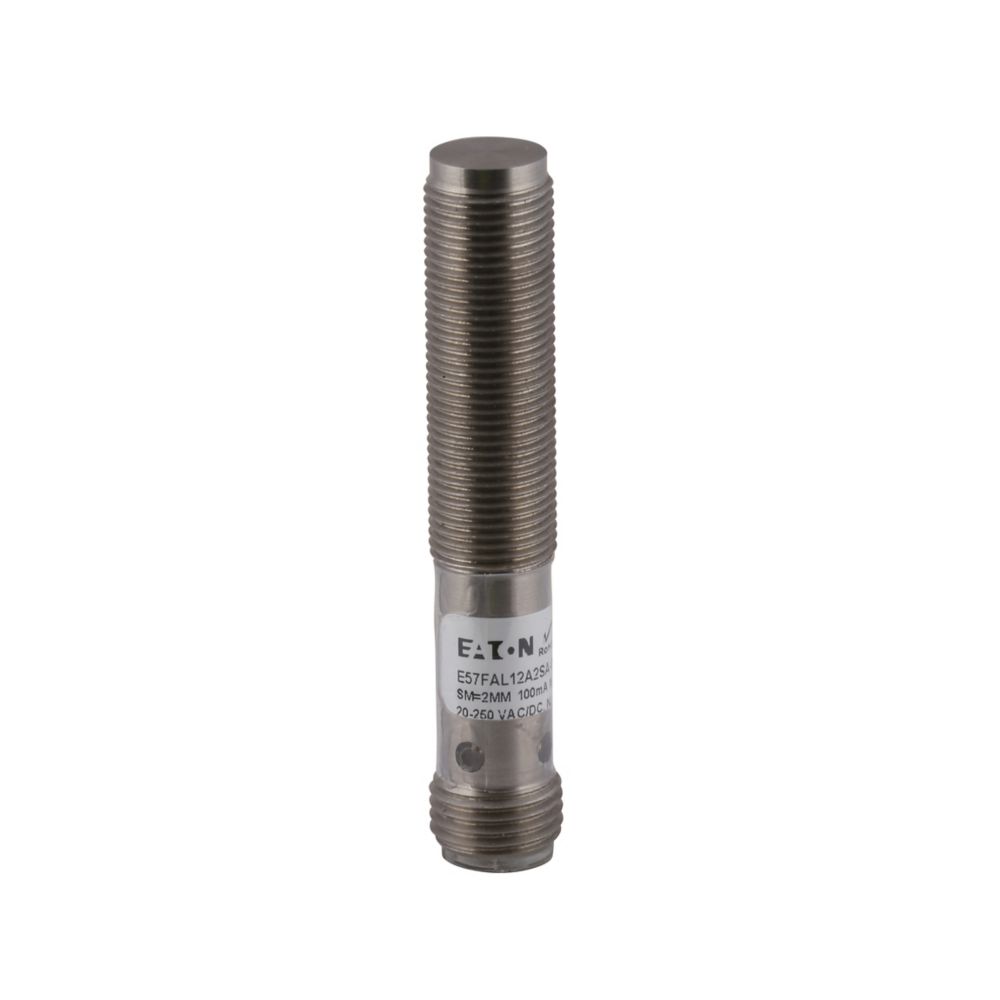

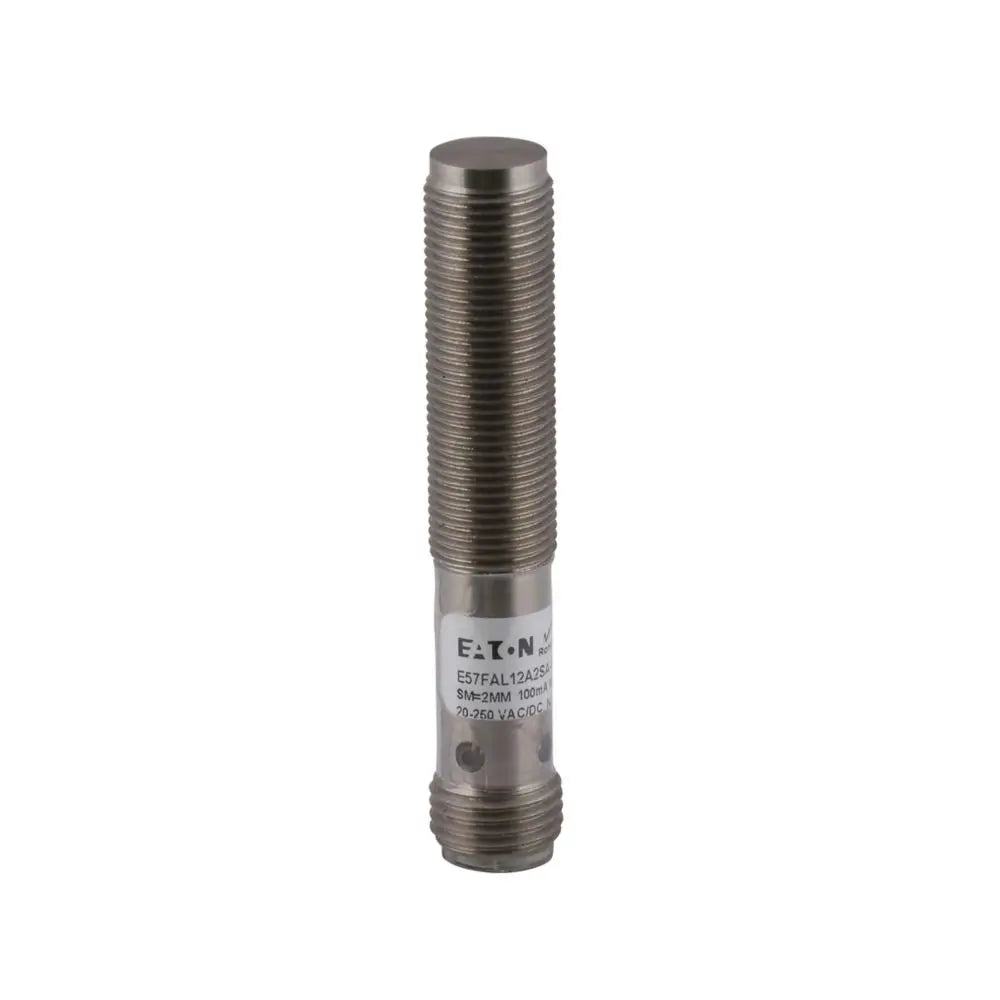

E57FAL12A2SA-M is a tubular metal faced inductive proximity sensor from Eaton, designed for reliable non-contact detection in industrial automation applications.

This sensor features a shielded, stainless steel housing for durability in harsh environments, with a 2mm sensing distance and a 3-pin dual key micro connector for easy installation. It is rated for 20-250V AC operation and is suitable for a wide range of industrial uses, including machine tools, automotive, and conveyor systems. The sensor includes a red LED for output status indication and meets multiple environmental protection standards.

Key Specifications
• Part Number: E57FAL12A2SA-M
• Manufacturer: Eaton
• Type: Tubular metal faced inductive proximity sensor
• Series/Frame: E57
• Mounting Type: Straight, tubular
• Voltage: 20-250V AC
• Amperage: 100mA max AC
• Contact Configuration: 2-wire AC, normally open (NO)
• Sensing Distance: 2mm
• Connection: 3-pin dual key micro connector
• Enclosure Material: Stainless steel
• Environmental Rating: NEMA 4, 4X, 6, 6P, 12, 13; IP67
• Operating Temperature: -13°F to 158°F
• Certifications: UL Listed, CSA Certified, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E57FAL12A2SA-M
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Automation
• Item Subcategory : Sensor
• Temp Rating : -13–158 °F (-25–70 °C)
• Aux Contacts : 2-Wire AC, NO

Product Data

• UPC : 078211396794
• GTIN : 00782113967943
• Dimensions : 0.47 in x 2.67 in x 0.47 in (Length/Depth x Height x Width)
• Weight : 0.06
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL, CSA, CE
