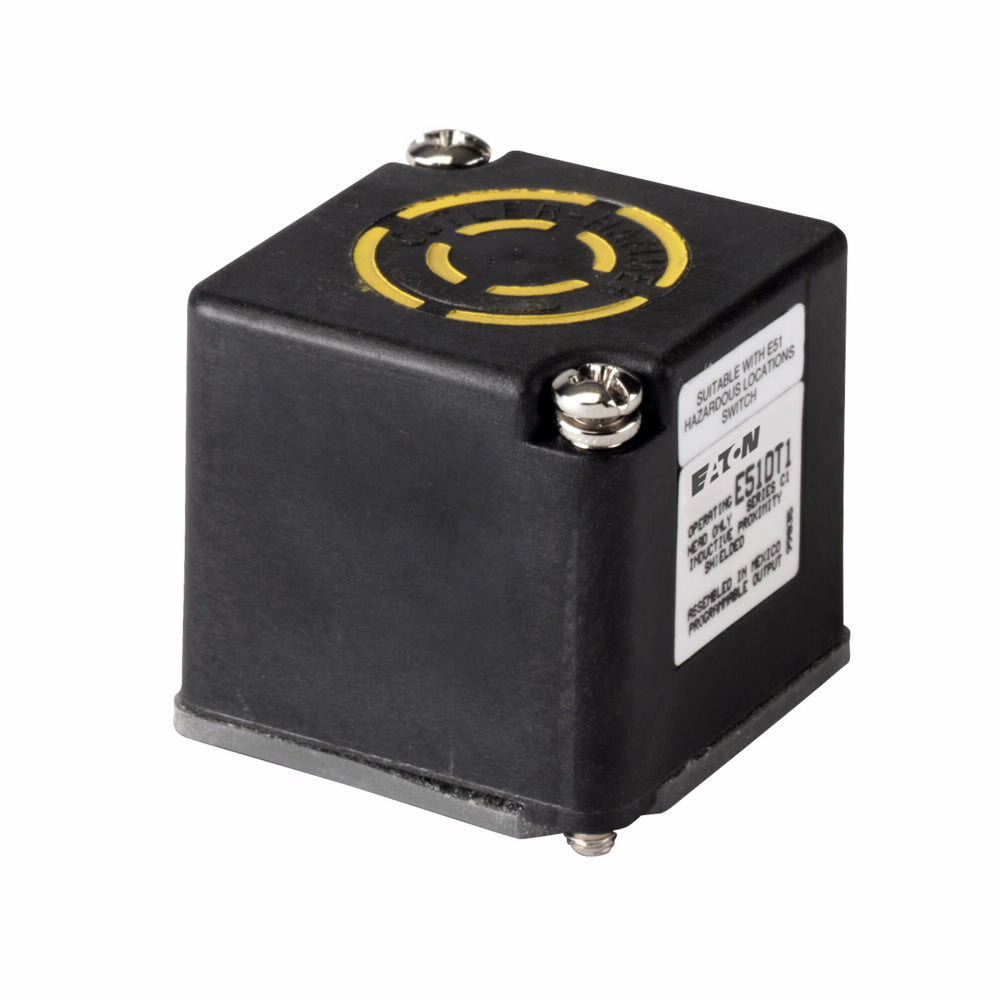

E51DT1 Cutler Hammer Inductive Proximity Sensor Head, E51 Series, 0.51 in Range, Top Sensing, Shielded

E51DT1

E51DT1 Cutler Hammer Inductive Proximity Sensor Head, E51 Series, 0.51 in Range, Top Sensing, Shielded

The Cutler Hammer E51DT1 is a shielded inductive proximity sensor head in the Eaton E51 Series, rated for a 0.51 in (13 mm) nominal sensing range with a top sensing orientation and standard operating frequency. The head is UL Listed and CSA Certified, carries NEMA 3, 3S, 4, 4X, 6, 6P, 12, and 13 environmental ratings with IP67 ingress protection, and operates from -13 F to 158 F. An integral selector switch sets the output to normally open or normally closed.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

The E51DT1 is a head-only component of the modular E51 limit switch style sensor platform. It mounts to an E51 Series sensor body, which supplies the connection and output electronics, and detects metallic targets without contact. Captive screws support rapid head replacement during maintenance.

Common Applications

• Position sensing on stationary industrial machinery
• Metal target detection in automation and logic control systems
• Upgrade of mechanical limit switches on the E51 platform
• Conveyor, packaging, and material handling equipment
• Washdown and corrosive environments

Key Features

• Shielded construction: Permits flush mounting in metal for precise detection.
• 0.51 in sensing range: Nominal 13 mm range at standard operating frequency.
• Top sensing orientation: Sensing face located on top of the head.
• Programmable output: Integral selector switch sets normally open or normally closed operation.
• Modular E51 platform: Plug-in head installs on any E51 Series sensor body with captive screws.
• Industrial-grade sealing: NEMA 4X and IP67 ratings support washdown and outdoor duty.

Specifications

• Manufacturer: Cutler Hammer (Eaton)
• Catalog Number: E51DT1
• Series: E51
• Product Type: Inductive proximity sensor head
• Sensing Range: 0.51 in (13 mm)
• Sensing Position: Top
• Shielding: Shielded
• Frequency Rating: Standard
• Output Function: Selectable NO or NC
• Enclosure Material: Plastic
• Environmental Rating: NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13; IP67
• Operating Temperature: -13 F to 158 F
• Certifications: UL Listed, CSA Certified

Product Identification

• UPC/GTIN: 782113344904
• Dimensions: 1.51 in H x 1.51 in W x 1.38 in D
• Weight: 0.1 lb

FAQ

What is the Cutler Hammer E51DT1? The E51DT1 is a shielded inductive proximity senso

Specifications

• Part Number: E51DT1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Automation
• Item Subcategory : Sensor
• Family : E51 Series

Product Data

• UPC : 782113344904
• GTIN : 00782113344904
• Country of Origin : Mexico
• Dimensions : 1.38 in x 1.51 in x 1.51 in (Length/Depth x Height x Width)
• Weight : 0.1 lb
• Certification : CSA, UL Listed
