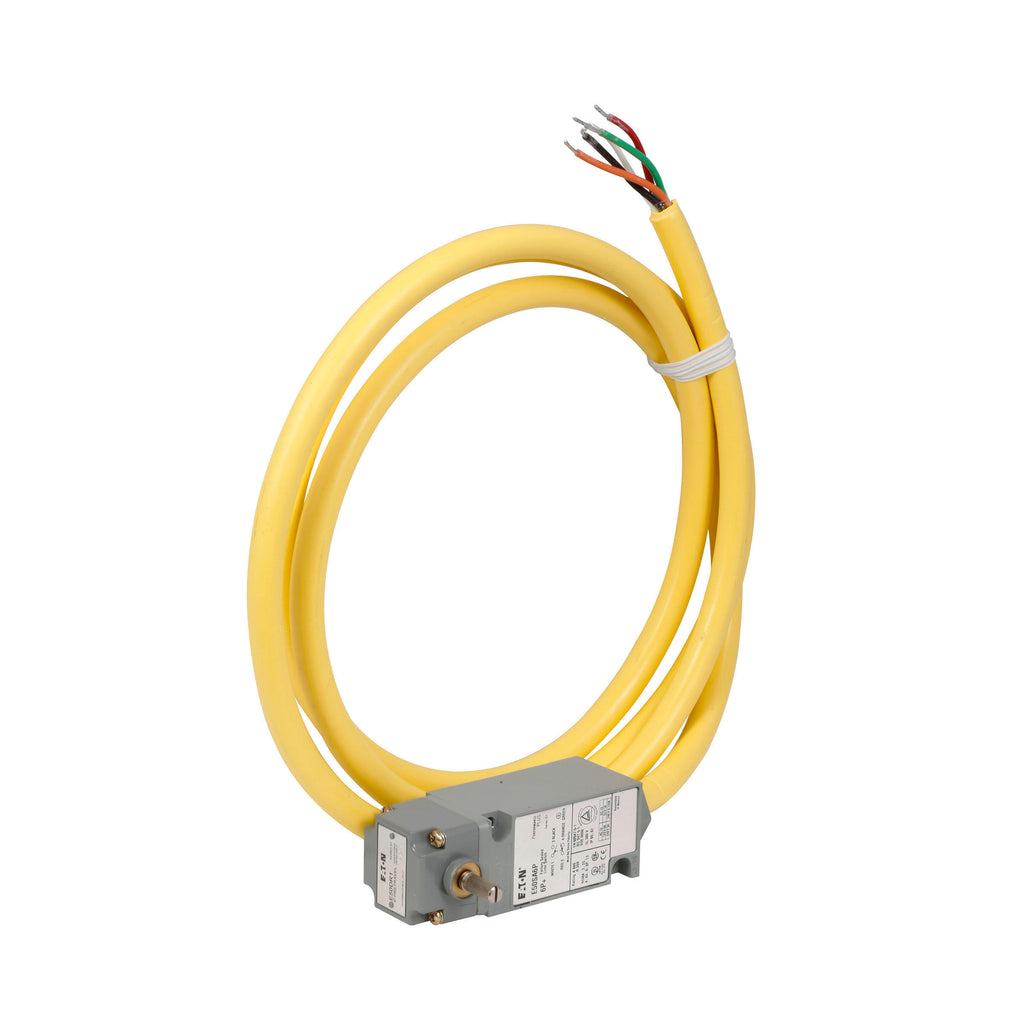

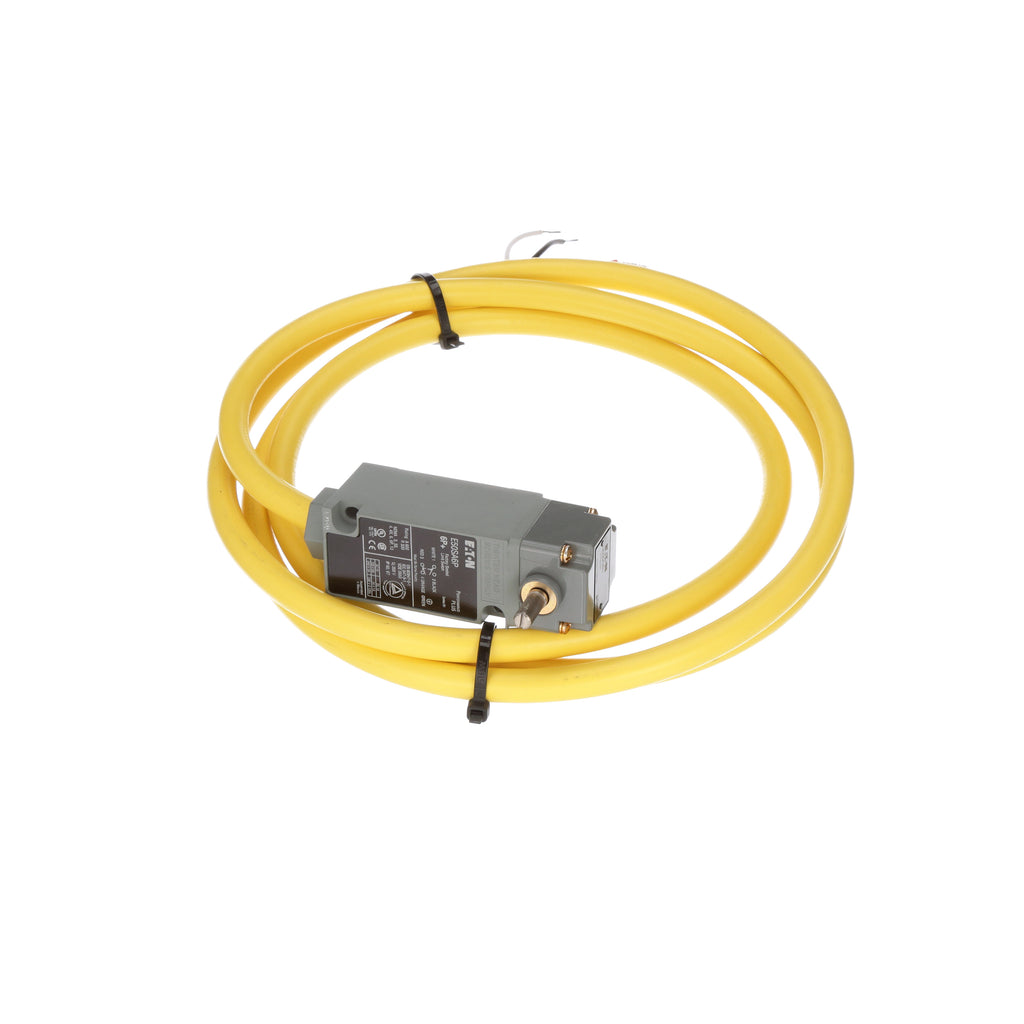

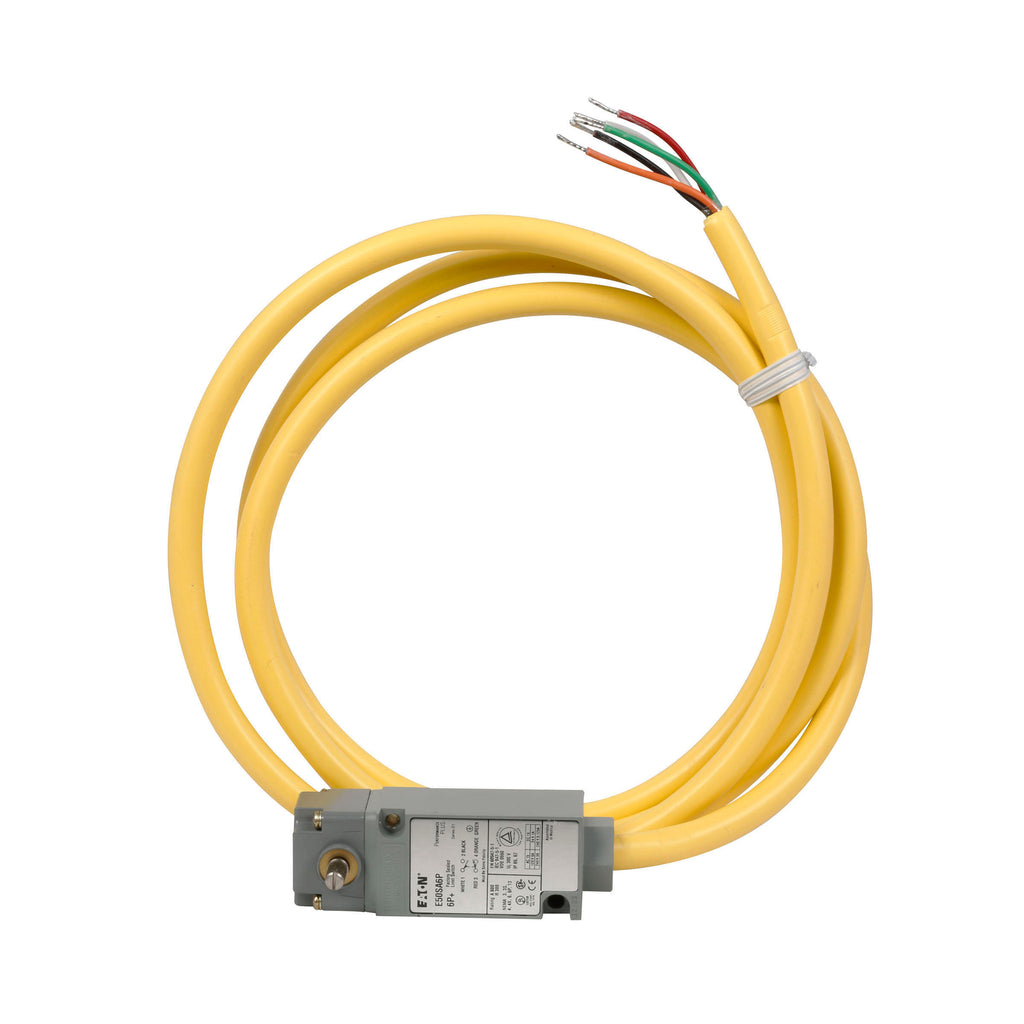

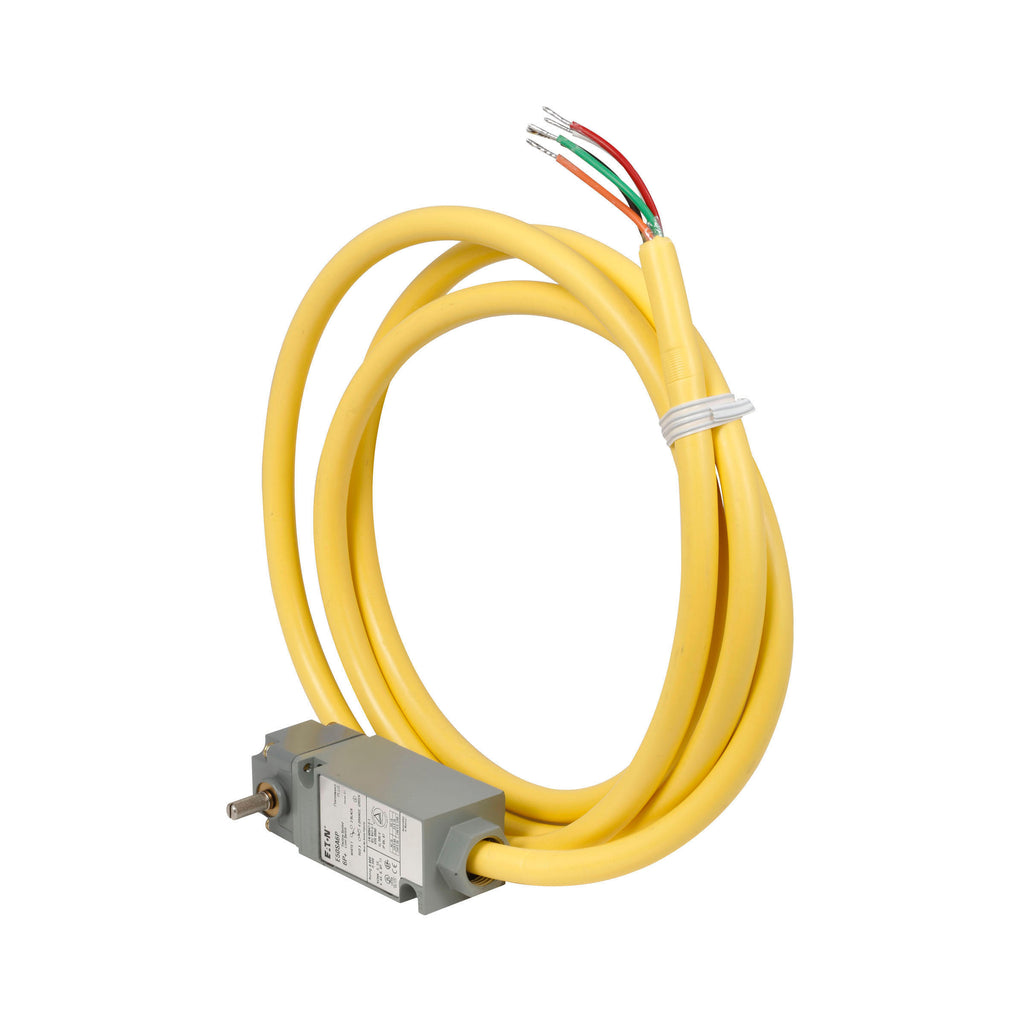

E50AR16P - Cutler Hammer E50 Series Heavy Duty Plug-In Limit Switch, 10A 600V 1 Pole, Side Rotary Spring Return, NEMA 1/3/3S/4/4X/6/6P/13, UL/CSA/CE Certified

E50AR16P

E50AR16P is a Cutler Hammer E50 Series heavy duty plug-in limit switch designed for demanding industrial motor control applications.

This assembly features a side rotary, standard spring return actuator, 1NO-1NC contact configuration, and a robust die cast zinc enclosure. It is engineered for reliability in harsh environments, with modular plug-in components for easy maintenance and installation. The switch is rated for a wide range of NEMA and IP environmental protections, making it suitable for diverse industrial settings.

Key Specifications
• Part Number: E50AR16P
• Manufacturer: Cutler Hammer (Eaton)
• Series/Frame: E50
• Amperage: 10A at 240 Vac, 1A at 250 Vdc
• Voltage: 600V
• Poles: 1
• Mounting Type: Plug-in, compatible with DIN rail
• Contact Configuration: 1NO-1NC
• Actuator: Side rotary, standard spring return
• Enclosure: Die cast zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K
• Operating Temperature: 10° to 200°F (-10° to 105°C)
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Cord: 96 ft SOOW-A or SOOW-J cable

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E50AR16P
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Limit Switch
• Family : E50 Series
• Type : E50AR

Product Data

• UPC : 782113119557
• GTIN : 00782113119557
• Country of Origin : Mexico
• Dimensions : 1.54 in x 4.67 in x 3.03 in (Length/Depth x Height x Width)
• Weight : 2.1 lb
• Certification : CE, CSA, UL
