E22KG7 - Eaton E22 Series 22.5mm Non-Metallic Heavy-Duty Key Selector Switch, 3 Positions, NEMA 3R, UL 508 Certified

E22KG7

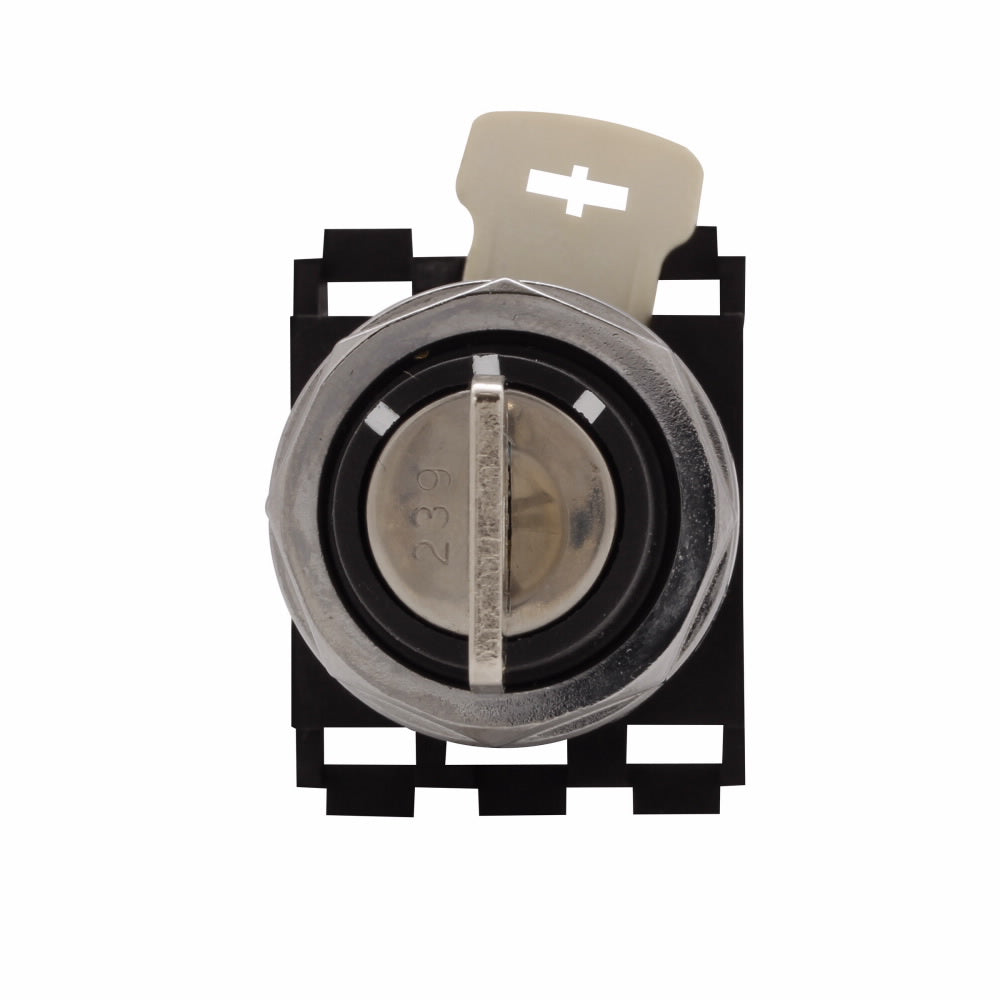

E22KG7 is a 22.5 mm non-metallic heavy-duty key selector switch from Eaton's E22 Series designed for motor control applications.This selector switch features a three-position maintained key operation with key removal allowed only from the maintained position. It includes a chrome bezel and a 45° throw cam 1 mechanism. The switch supports up to 2 contact blocks (4 circuits) with the supplied 3-way mounting adapter and can accept up to 5 contact blocks (10 circuits) with an optional 5-way adapter. It is non-illuminated and rated for NEMA 3R, 4, 4X, 12, and 13 enclosures, compliant with UL 508 and CE standards.

Key Specifications
• Part Number: E22KG7
• Manufacturer: Eaton
• Series: E22
• Mounting Type: Panel Mount
• Number of Positions: 3 (maintained)
• Key Type: Flat Key, removal from maintained position only
• Cam Code: Cam 1, 45° throw
• Bezel: Chrome
• Illumination: Non-illuminated
• Enclosure Ratings: NEMA 3R, 4, 4X, 12, 13
• Certifications: UL 508, CE Marked
• Max Contact Blocks: 2 standard, 5 optional

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E22KG7
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory

Product Data

• UPC : 782113471181
• GTIN : 00782113471181
• Country of Origin : Dominican Republic
• Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 1
