Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
DU324

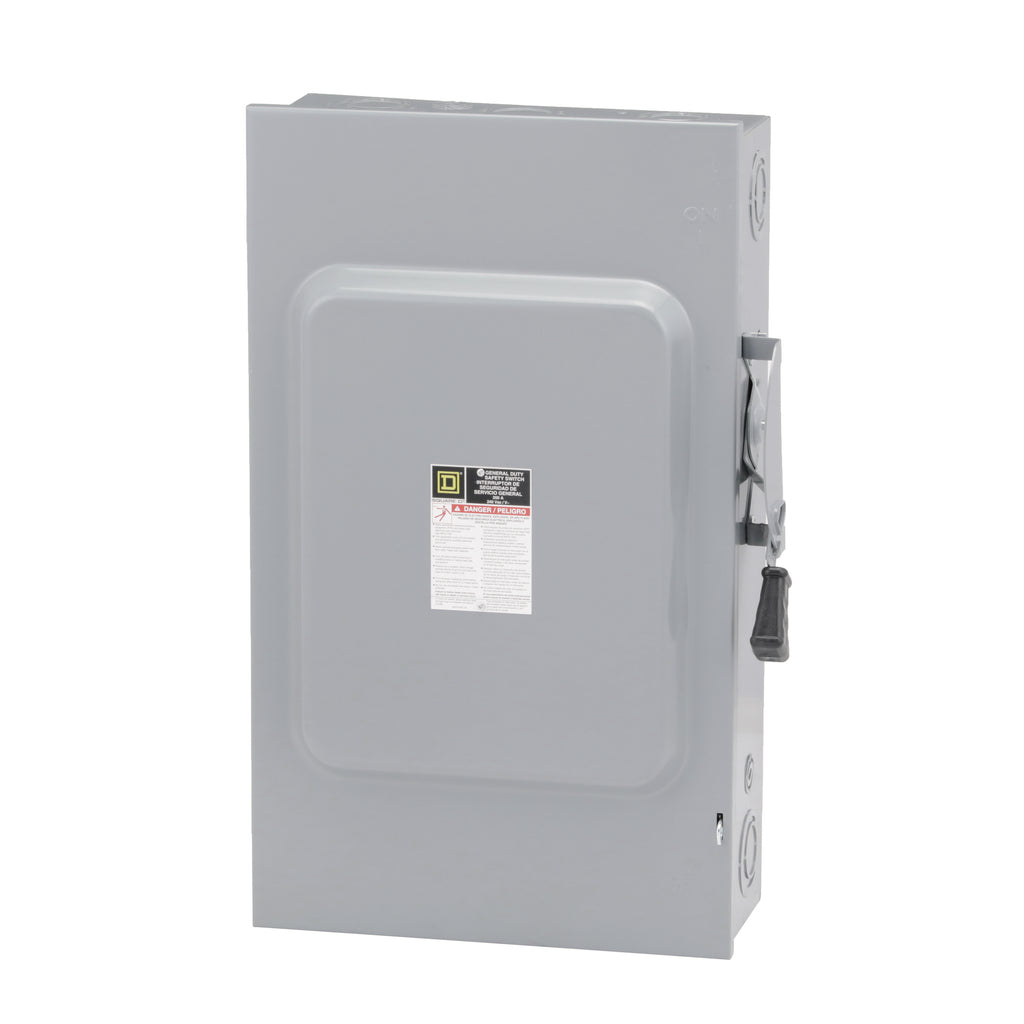

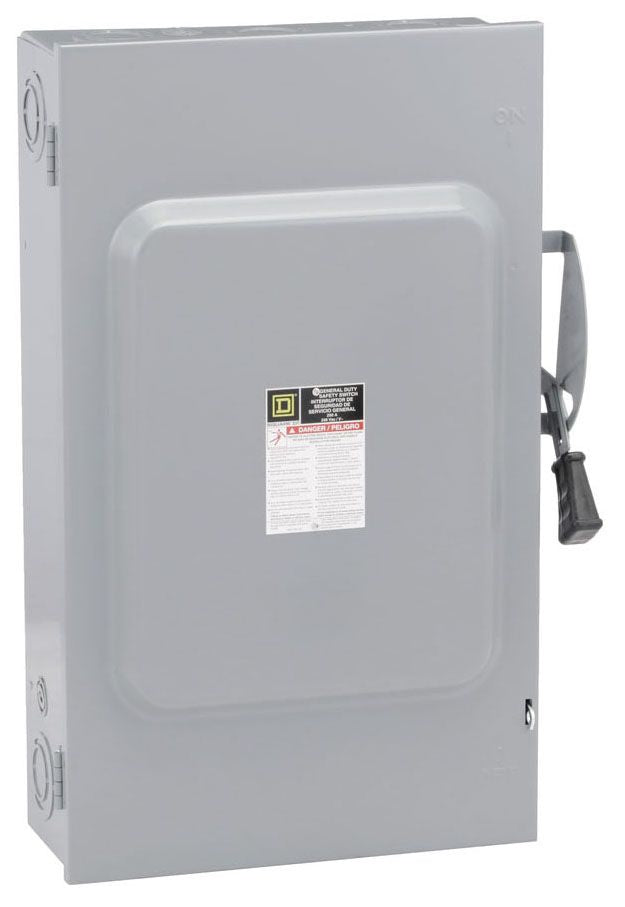

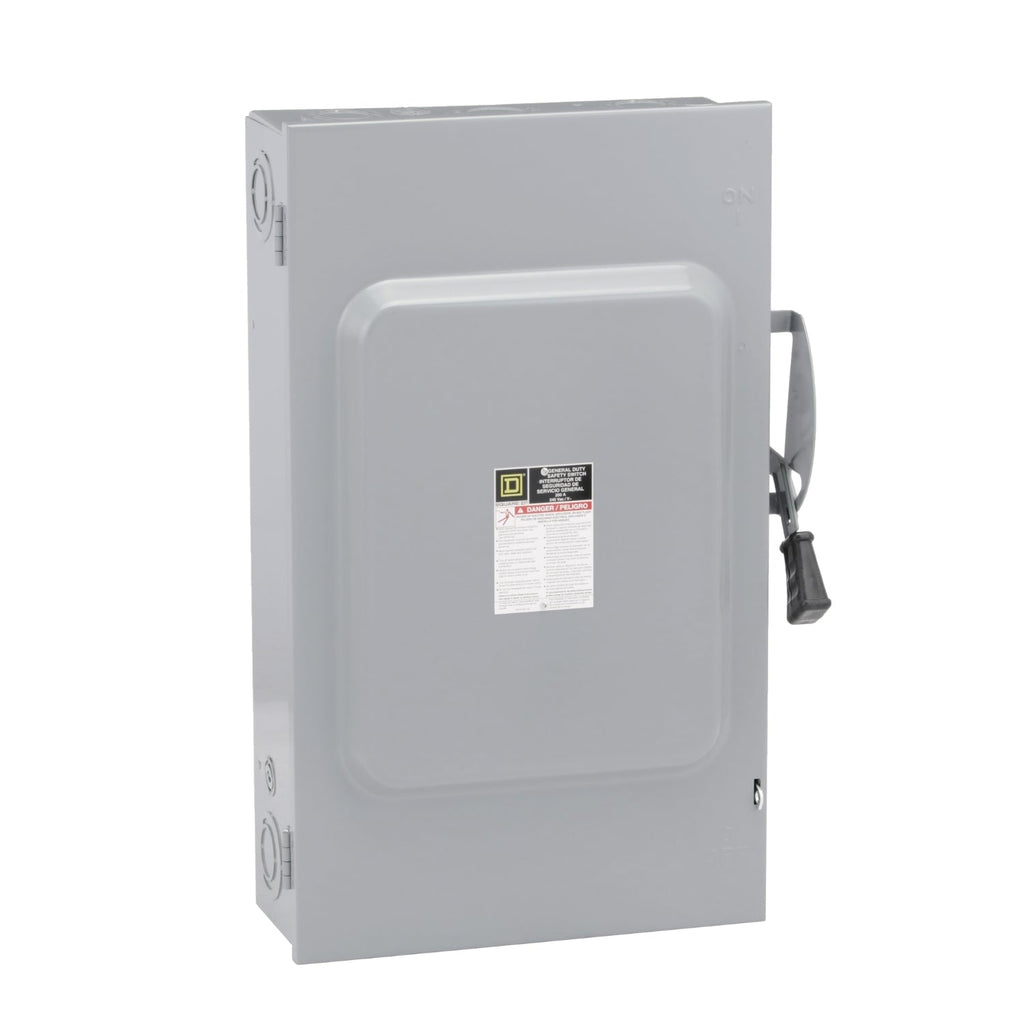

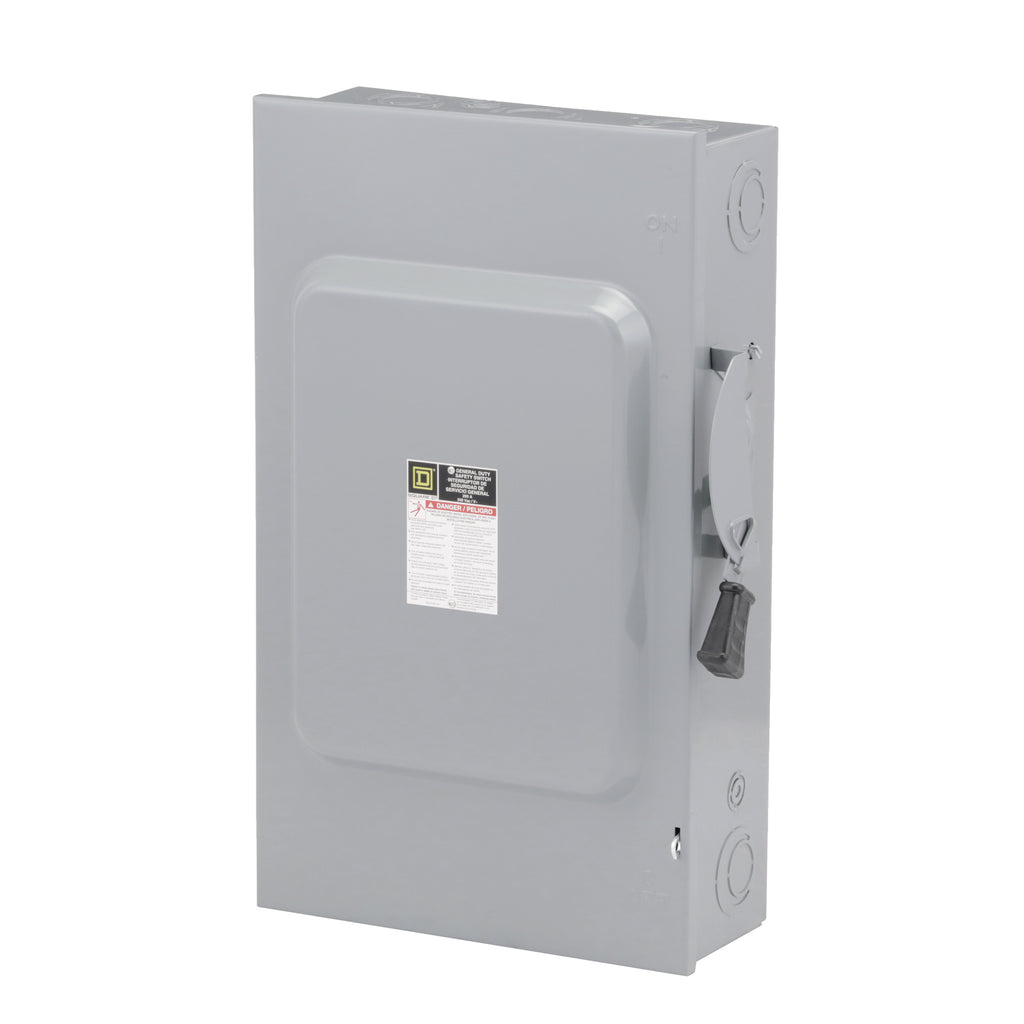

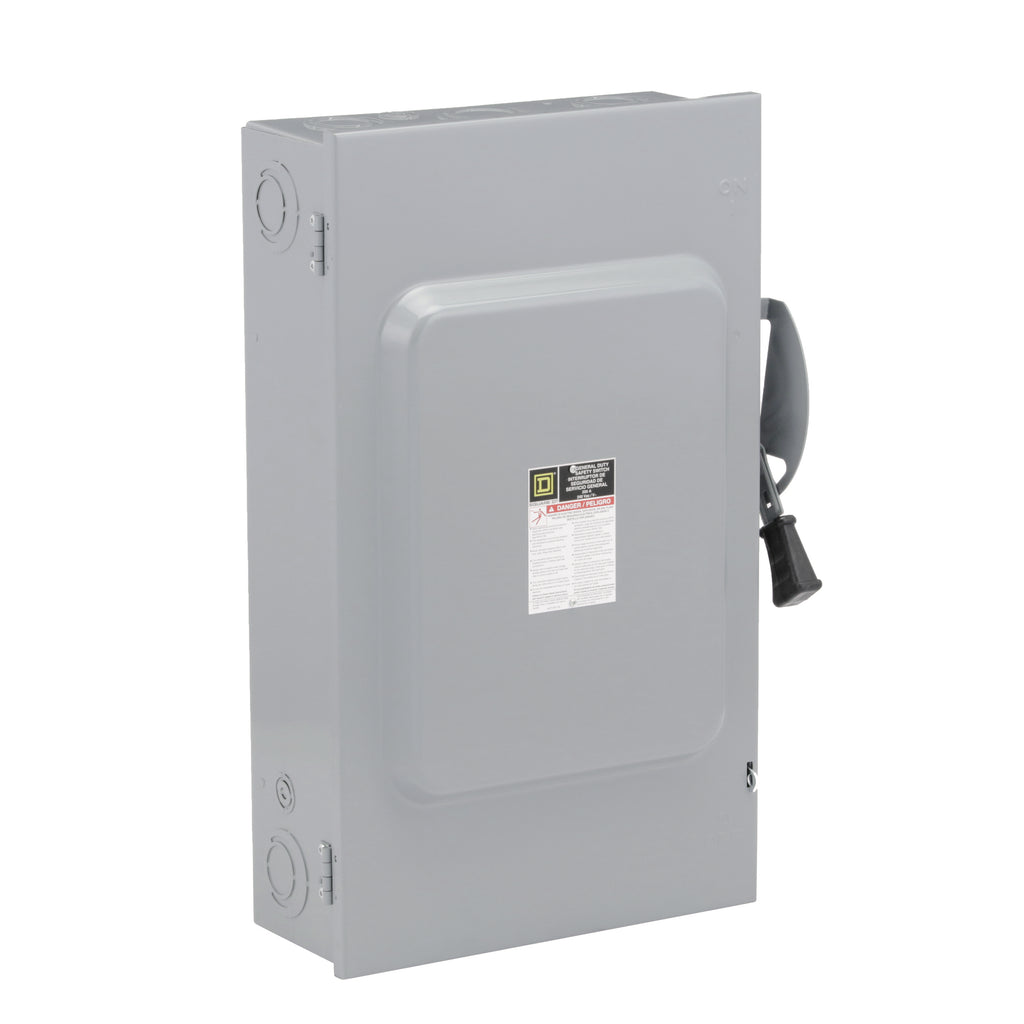

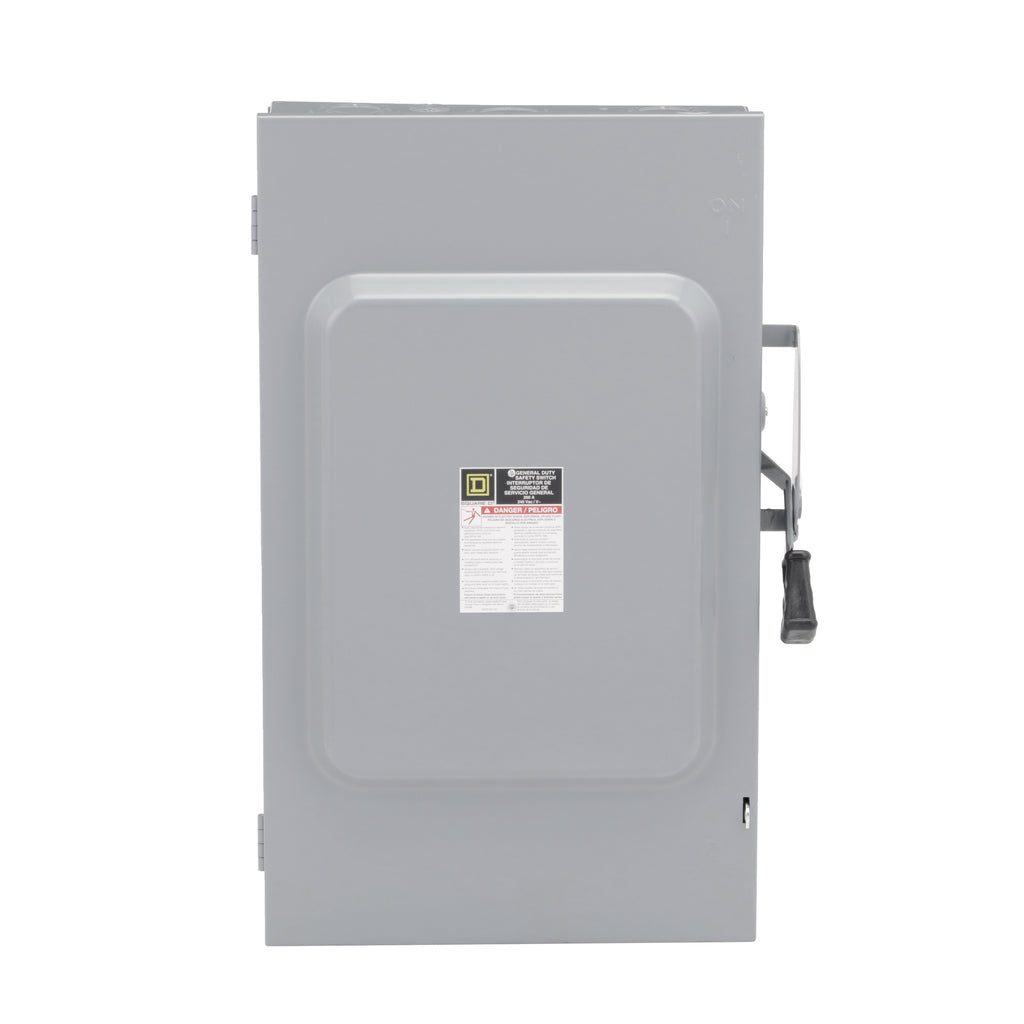

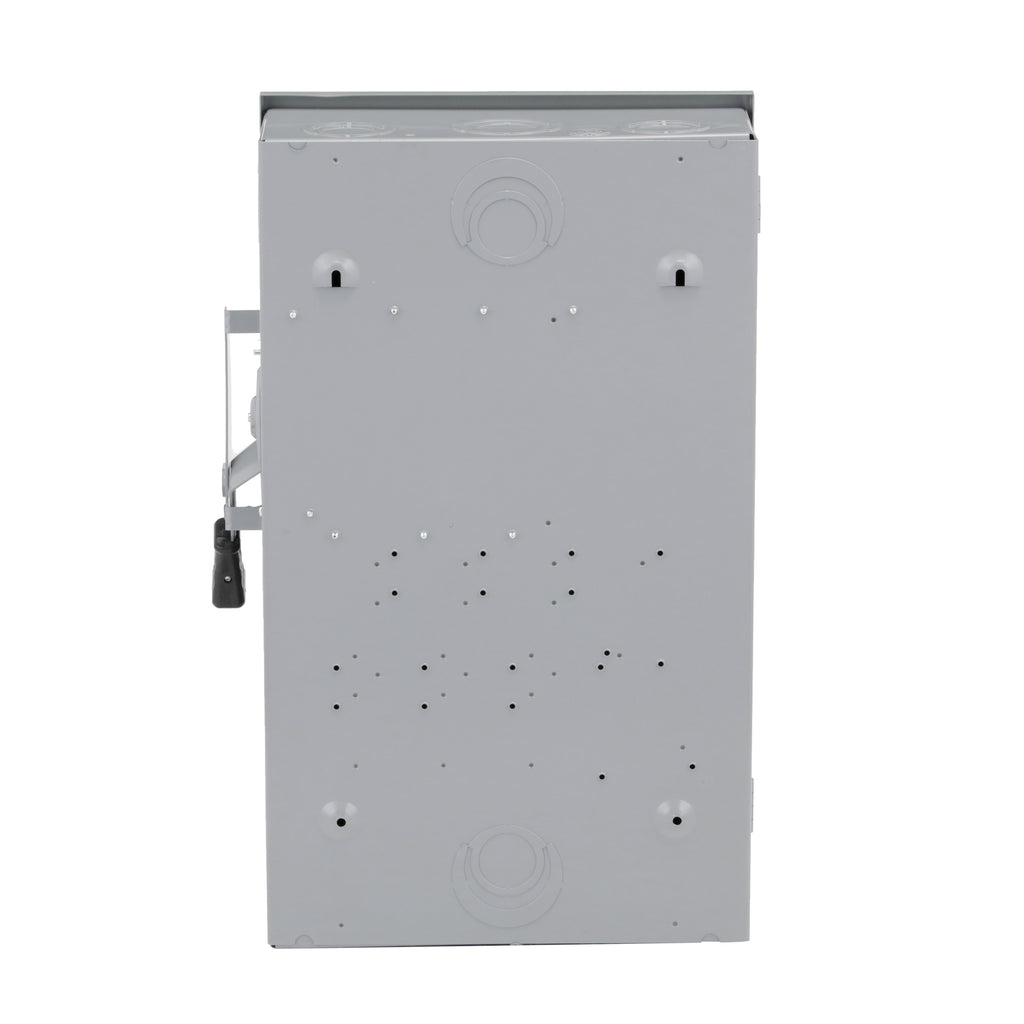

DU324 is a Square D general duty safety switch rated for 200 amps and 240 volts with 3 poles, designed for reliable power distribution control.This non-fusible safety switch features a general duty rating suitable for residential and commercial applications, supporting typical loads such as lighting, air conditioning, and appliances. It is surface mounted with a NEMA 1 enclosure and includes lugs for electrical connections. The switch has a short circuit interrupt rating of 100kA and complies with UL standards.
- Amperage: 200A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Surface Mounted
- Interrupt Rating: 100kA
- Series/Frame: F1 Series
- Trip Unit: Non-Fusible
- Enclosure: NEMA 1
- Certifications: UL Listed
- Application: General Duty
Specifications
- Part Number: DU324
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : DU
- Voltage : 240 AC
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : NSE
Product Data
- UPC : 785901491866
- GTIN : 00785901491866
- Country of Origin : United States
- Dimensions : 29 in (736.6 mm) x 19 in (482.6 mm) x 8.25 in (209.55 mm) (Height x Width x Depth)
- Weight : 39.899
- Certification : UL listed
