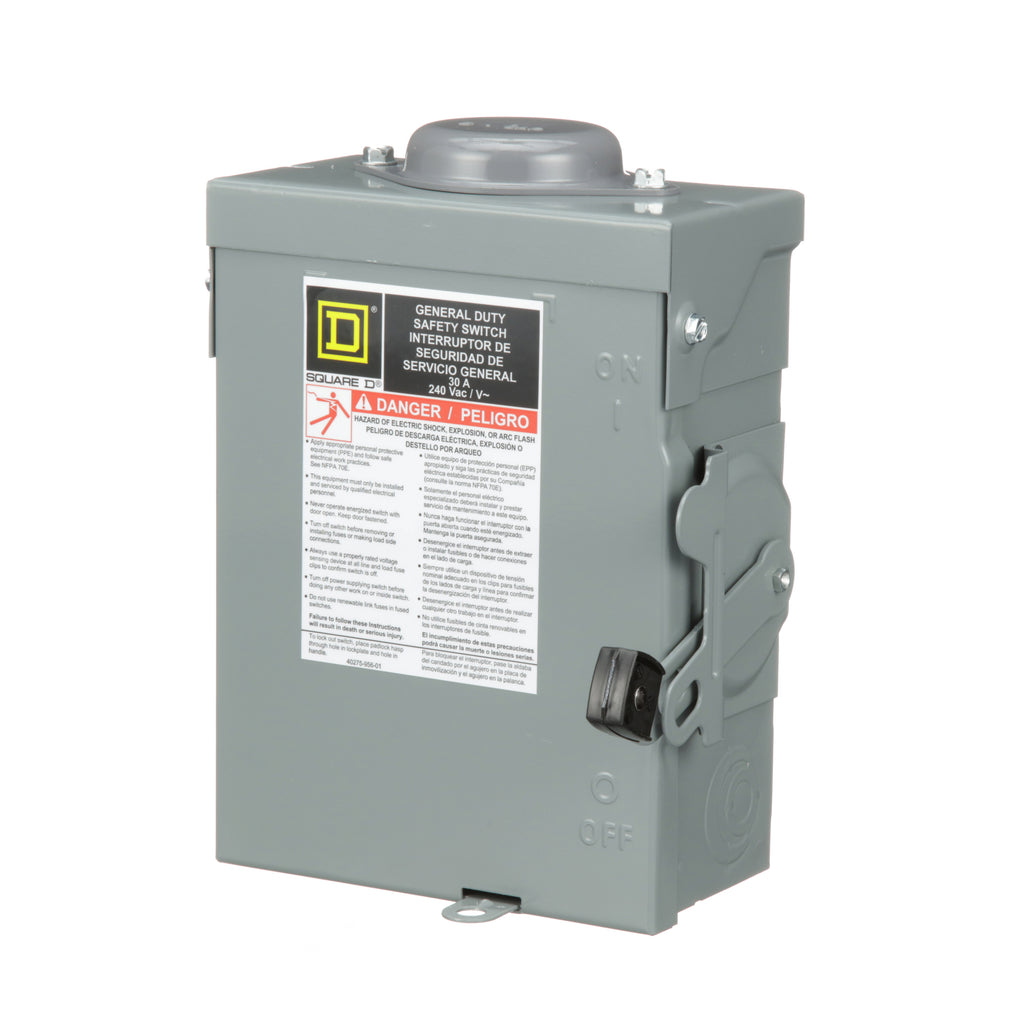

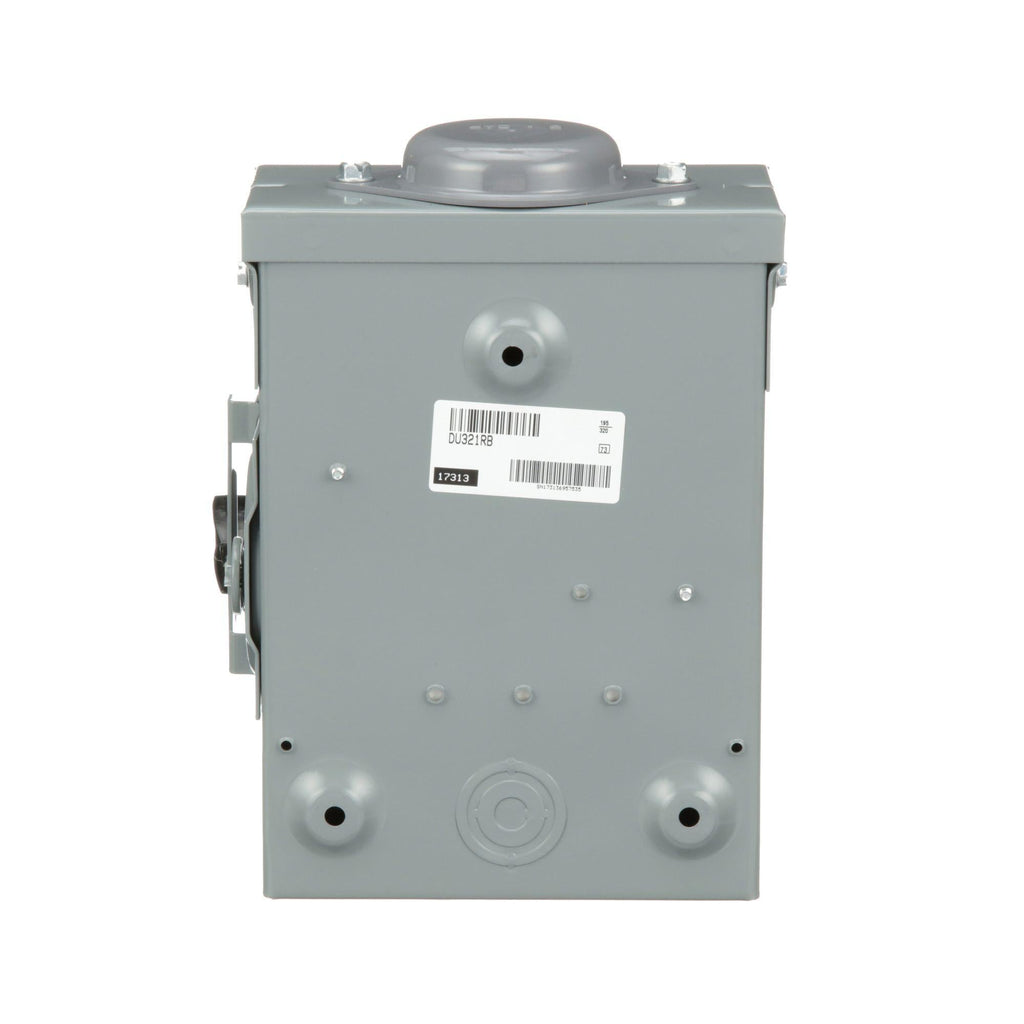

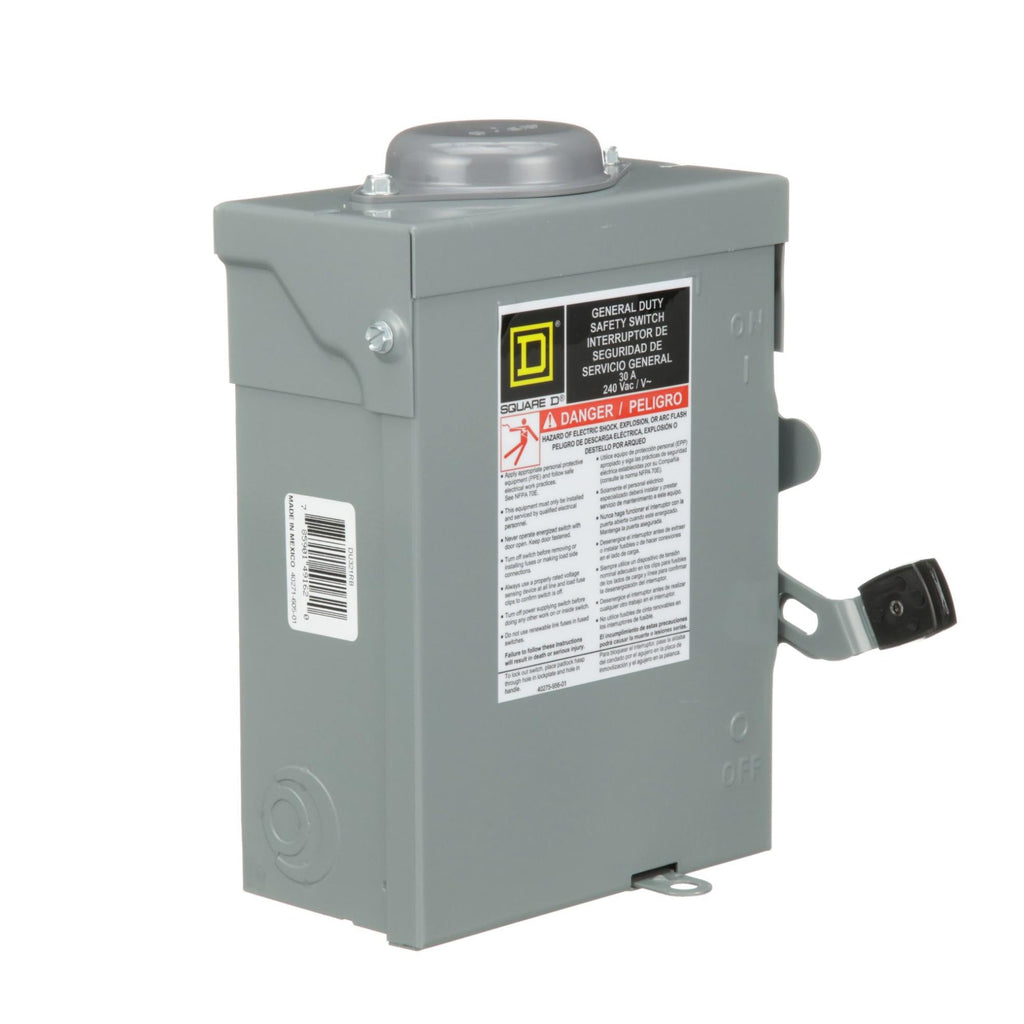

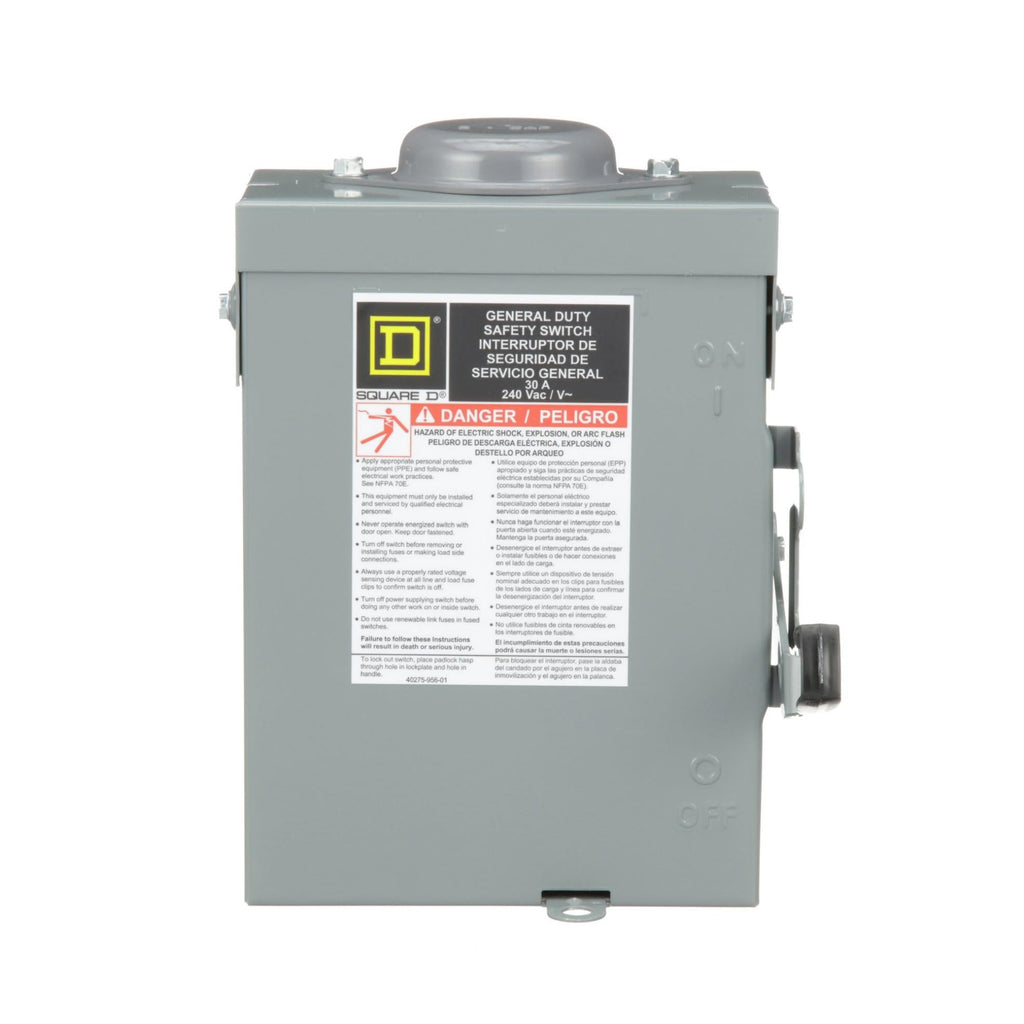

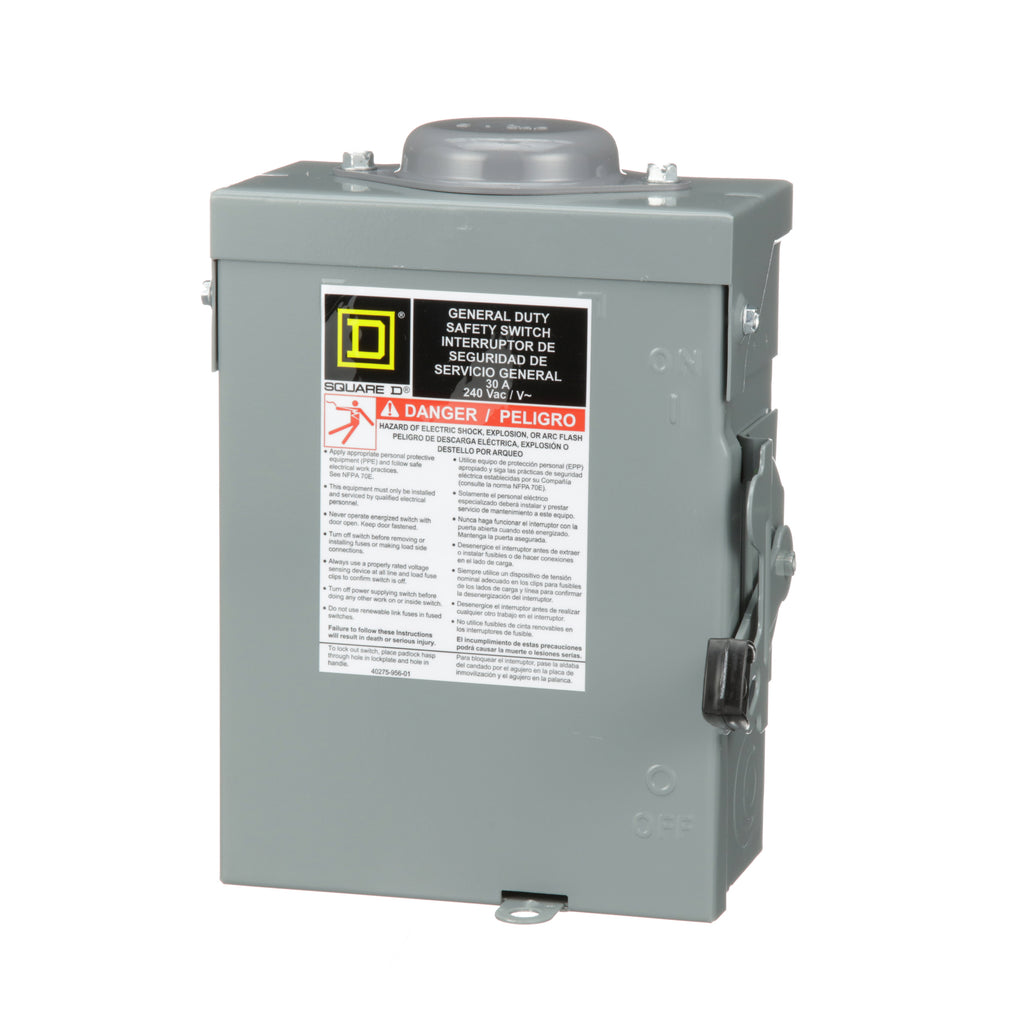

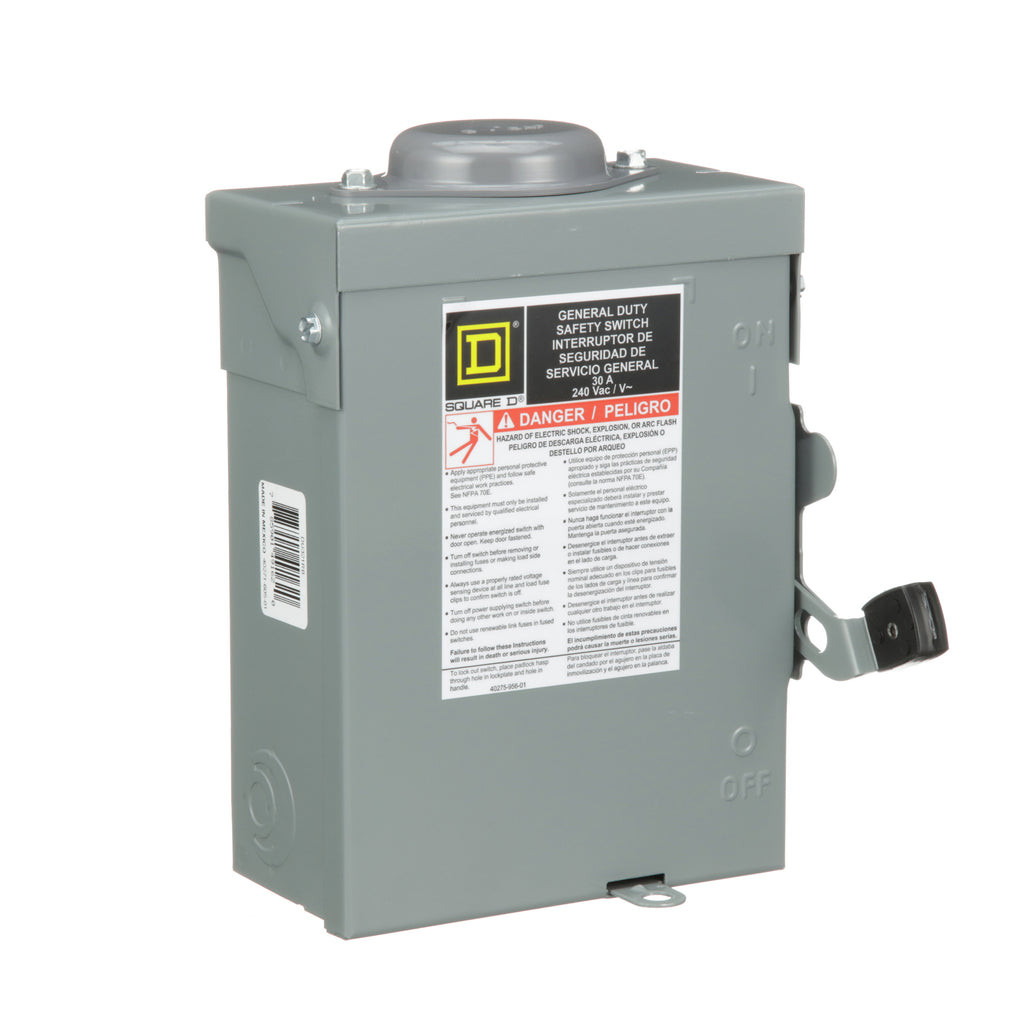

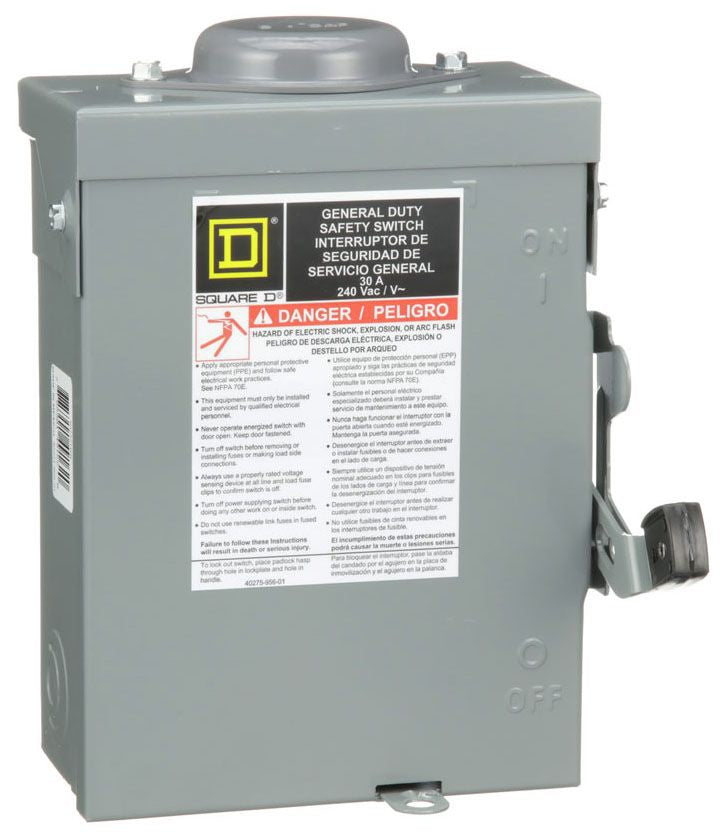

DU321RB - Square D 30A 240V 3P General Duty Non-Fusible Safety Switch NEMA 3R Surface Mount

DU321RB

This switch features a single throw mechanism, surface mounting type, and is designed for general duty applications. It supports 3-phase power with a 7.5 hp motor rating and has a short circuit interrupt rating of 100kA. The enclosure is finished in gray baked enamel providing iceproof and rainproof protection suitable for outdoor use. This model does not include a neutral and is UL listed for safety compliance.

Key Specifications
• Amperage: 30 A
• Voltage: 240 V AC
• Poles: 3
• Mounting Type: Surface mount
• Interrupt Rating: 100 kA short circuit
• Series/Frame: E2 Series
• Trip Unit: Non-fusible, single throw
• Enclosure: NEMA 3R, iceproof rainproof
• Phase: 3-phase
• Motor HP Rating: 7.5 hp
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: DU321RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : DU
• Voltage : 240 AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R



Product Data

• UPC : 785901491620
• GTIN : 00785901491620
• Country of Origin : Mexico
• Dimensions : 9.63 in (244.60 mm) x 7.75 in (196.85 mm) x 3.75 in (95.25 mm) (Height x Width x Depth)
• Weight : 4.85
• Certification : UL listed
