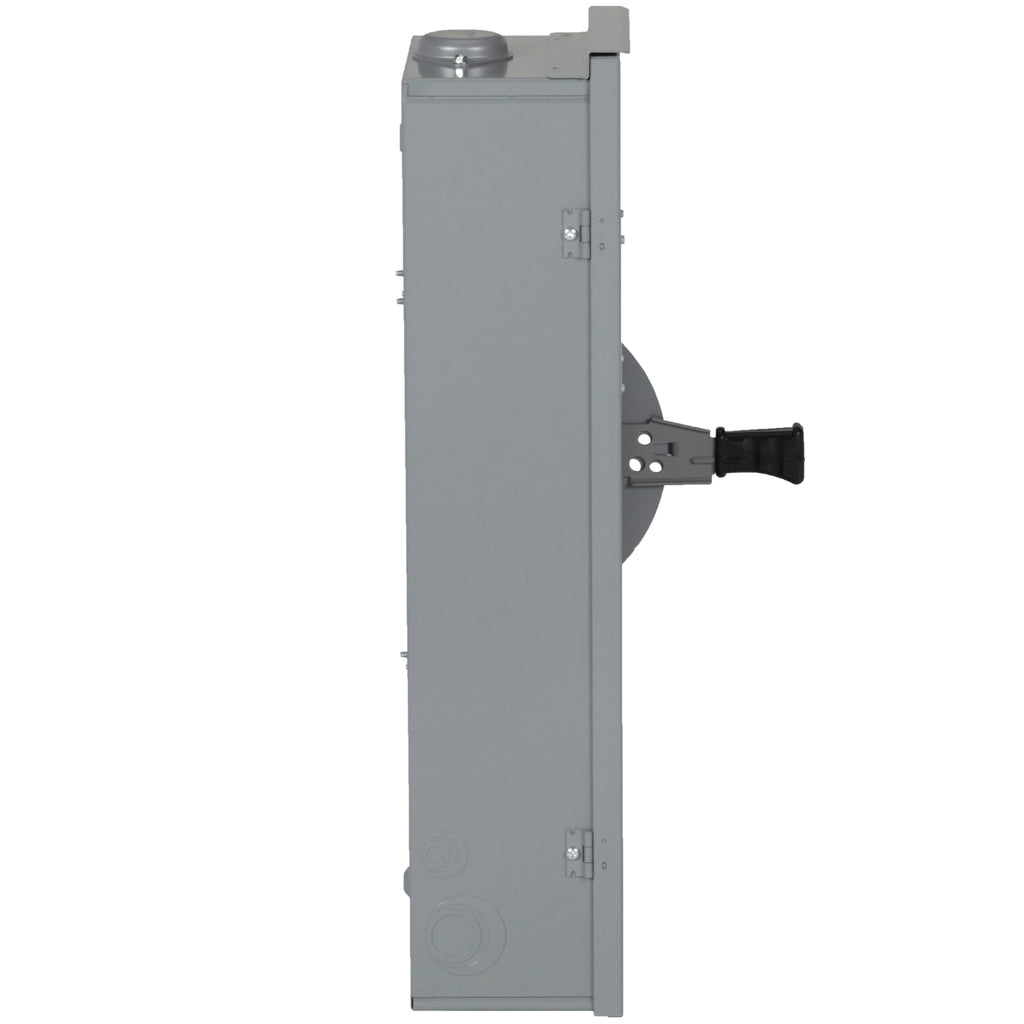

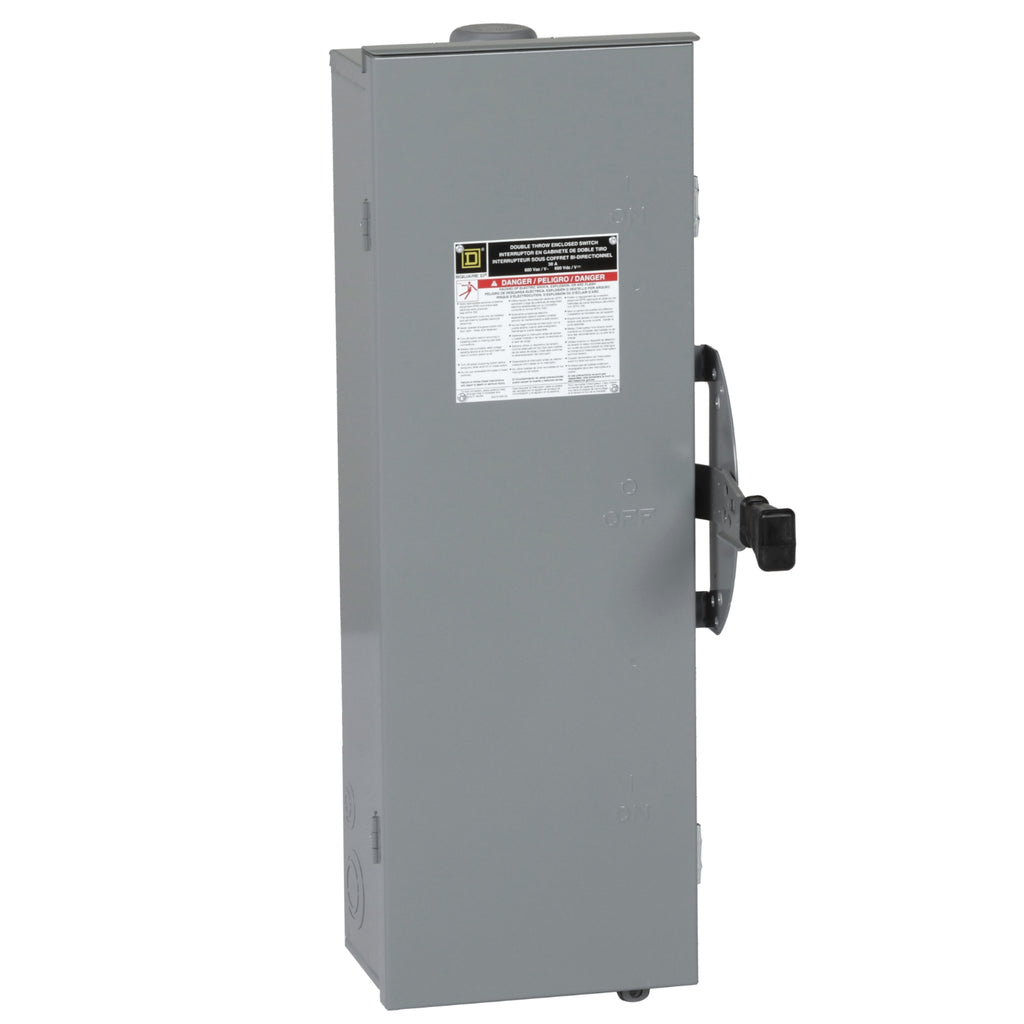

DTU361RB - Square D 30A 600VAC 3-Pole Double Throw Safety Switch NEMA 3R Surface Mount

DTU361RB

DTU361RB is a Square D 3-pole, 30 amp, 600VAC/VDC double throw safety switch designed for reliable power distribution and control.DTU361RB features a heavy-duty galvannealed steel enclosure with NEMA 3R rating for outdoor and indoor use. It supports surface mounting and is UL listed for safety and performance. The switch is non-fusible with a 200kA interrupting rating at 600V, suitable for heavy-duty industrial applications. It accommodates AWG 12 to AWG 2 copper or aluminum wiring and complies with RoHS and REACh standards.

Key Specifications
• Amperage: 30 Amps
• Voltage: 600VAC/VDC
• Poles: 3
• Mounting Type: Surface
• Interrupting Rating: 200kA at 600V
• Series/Frame: DTU
• Trip Unit: Double Throw
• Enclosure Material: Galvannealed Steel
• NEMA Rating: 3R
• Fusibility: Non-Fusible
• Certifications: UL Listed, RoHS, REACh
• Wire Gauge: AWG 12 to AWG 2 Copper/Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTU361RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600 AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : H, K, R, J, T
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : RLF

Product Data

• UPC : 78590130875
• GTIN : 00785901308751
• Country of Origin : United States
• Dimensions : 30.5 in (774.7 mm) x 10.45 in (265.43 mm) x 6.93 in (176.02 mm) (Height x Width x Depth)
• Weight : 37
• Certification : UL listed
