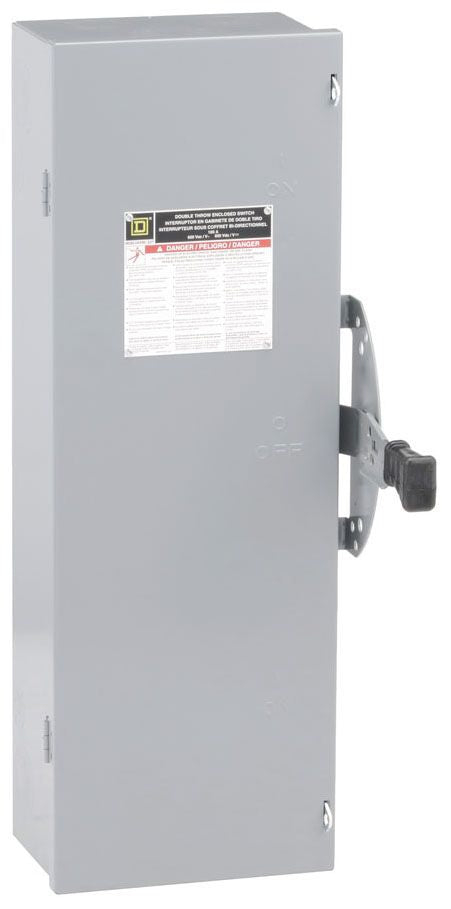

DTU363 - Square D 100A 600V 3-Pole Double Throw Safety Switch NEMA 1 Non-Fusible

DTU363

DTU363 is a Square D 100 amp, 600 volt, 3-pole double throw safety switch designed for reliable power isolation and transfer.DTU363 features a non-fusible design with a NEMA 1 indoor enclosure, suitable for industrial and commercial applications requiring manual load transfer between two power sources. It supports a maximum horsepower rating of 20 hp at 240 V AC and complies with UL 98 standards for safety switches.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 600 Volts AC/DC
• Number of Poles: 3
• Mounting Type: Surface Mounted
• Interrupt Rating: 10 kA
• Series/Frame: F Series
• Trip Unit: Non-Fusible
• Enclosure Rating: NEMA 1 (Indoor)
• Dimensions: 29.94" H x 11.96" W x 6.93" D
• Certifications: UL Listed, RoHS Compliant, Buy American Act Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTU363
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : DTU
• Voltage : 600 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : H, K, R, J, T
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : RLF

Product Data

• UPC : 785901308683
• GTIN : 00785901308683
• Country of Origin : United States
• Dimensions : 29.94 in (760.48 mm) x 11.96 in (303.78 mm) x 6.93 in (176.02 mm) (Height x Width x Depth)
• Weight : 36.29
• Certification : UL listed
