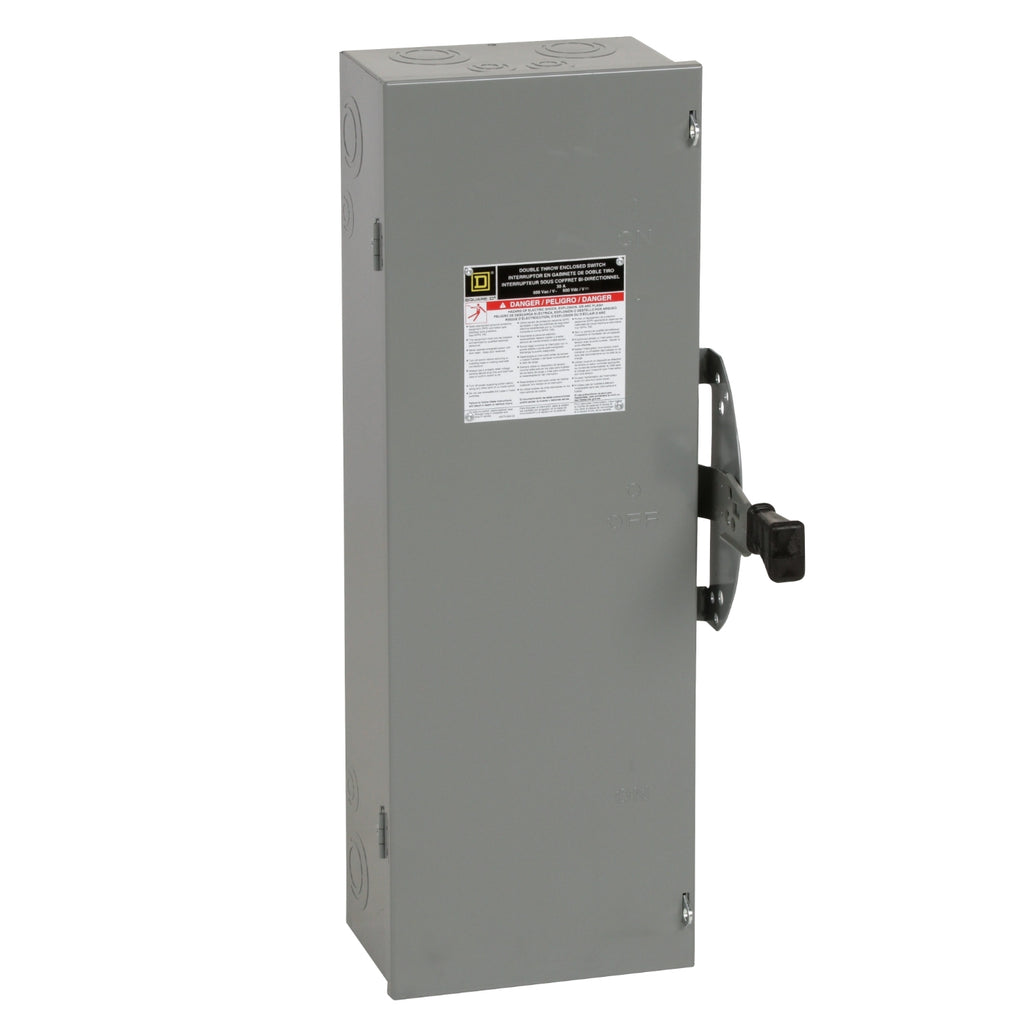

DTU361 - Square D 30 Amp 600VAC/VDC 3-Pole Non-Fusible Double Throw Safety Switch NEMA 1 Surface Mount

DTU361

DTU361 is a Square D 3-pole, 30 Amp, 600VAC/VDC non-fusible double throw safety switch designed for indoor use with a NEMA 1 steel enclosure.This switch features a 200kA interrupt rating at 600V, surface mounting type, and screw clamp connections compatible with AWG 12 to AWG 2 aluminum or copper wiring. It is UL listed and suitable for residential, light commercial, and industrial applications requiring heavy-duty duty rating.

Key Specifications
• Amperage: 30 Amp
• Voltage: 600VAC/VDC
• Poles: 3
• Interrupt Rating: 200kAIC at 600V
• Mounting Type: Surface
• Frame Type: D
• Connection Type: Screw Clamp
• Enclosure Rating: NEMA 1
• Fusibility: Non-Fusible
• Standards: UL Listed, RoHS, REACh
• Wire Gauge: AWG 12 to AWG 2 Aluminum/Copper
• Configuration: Double Throw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTU361
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 600 AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : H, K, R, J, T
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : RLF

Product Data

• UPC : 785901308669
• GTIN : 00785901308669
• Country of Origin : United States
• Dimensions : 29.94 in (760.48 mm) x 11.96 in (303.78 mm) x 6.93 in (176.02 mm) (Height x Width x Depth)
• Weight : 34.99
• Certification : UL listed
