Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
DTU323RB

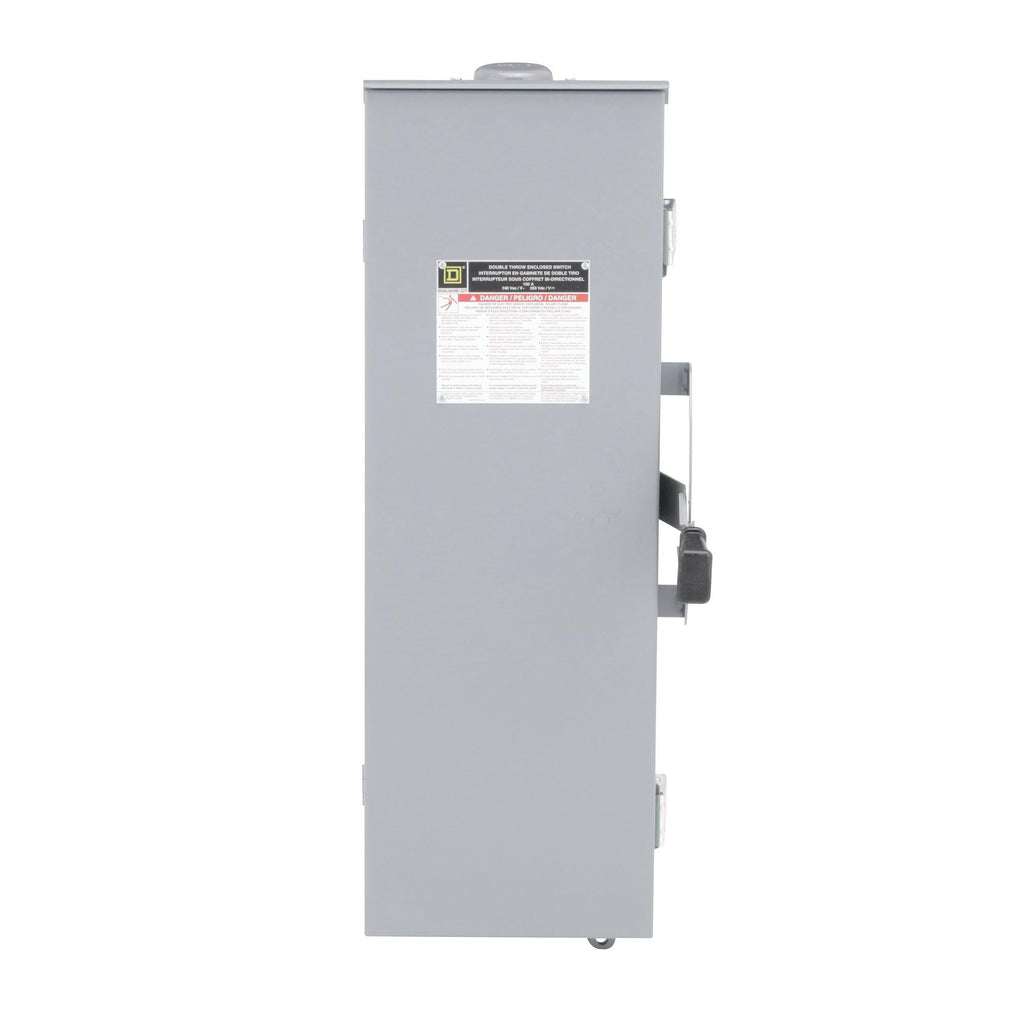

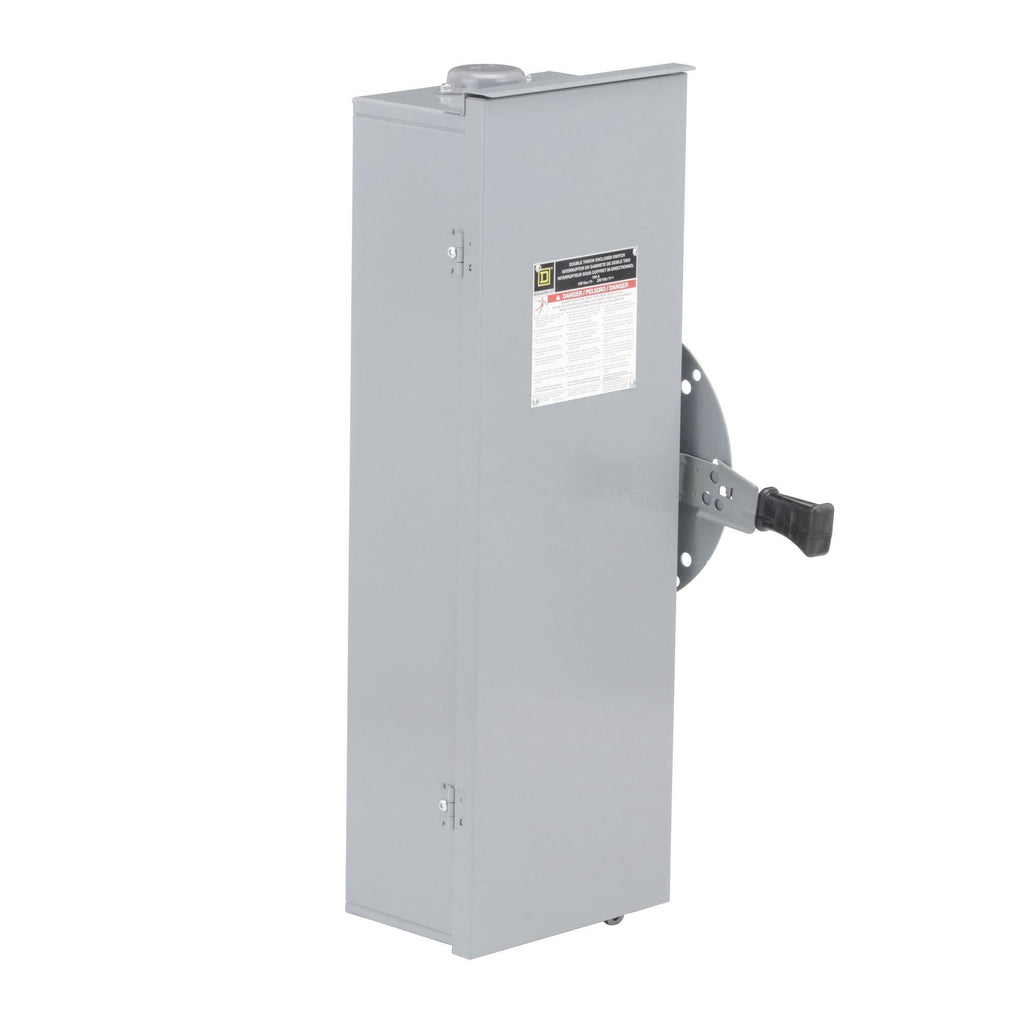

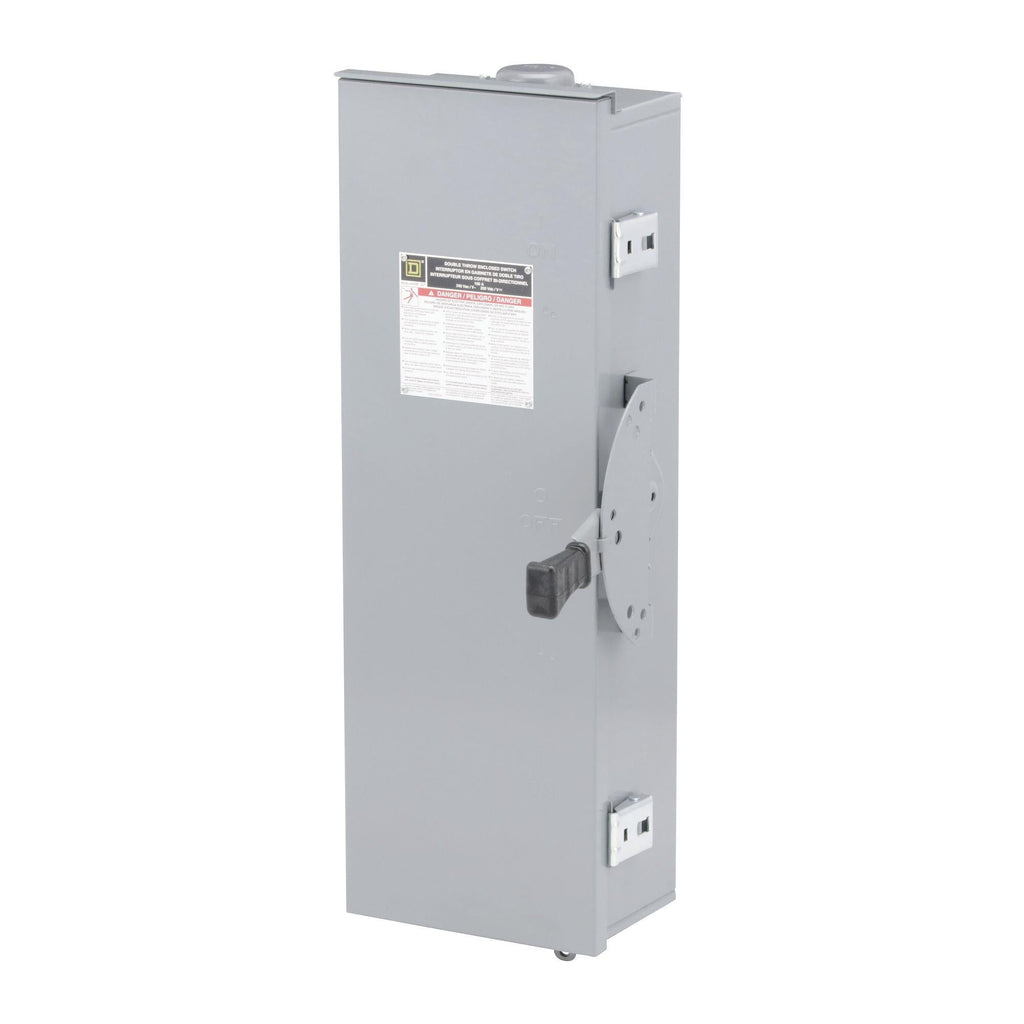

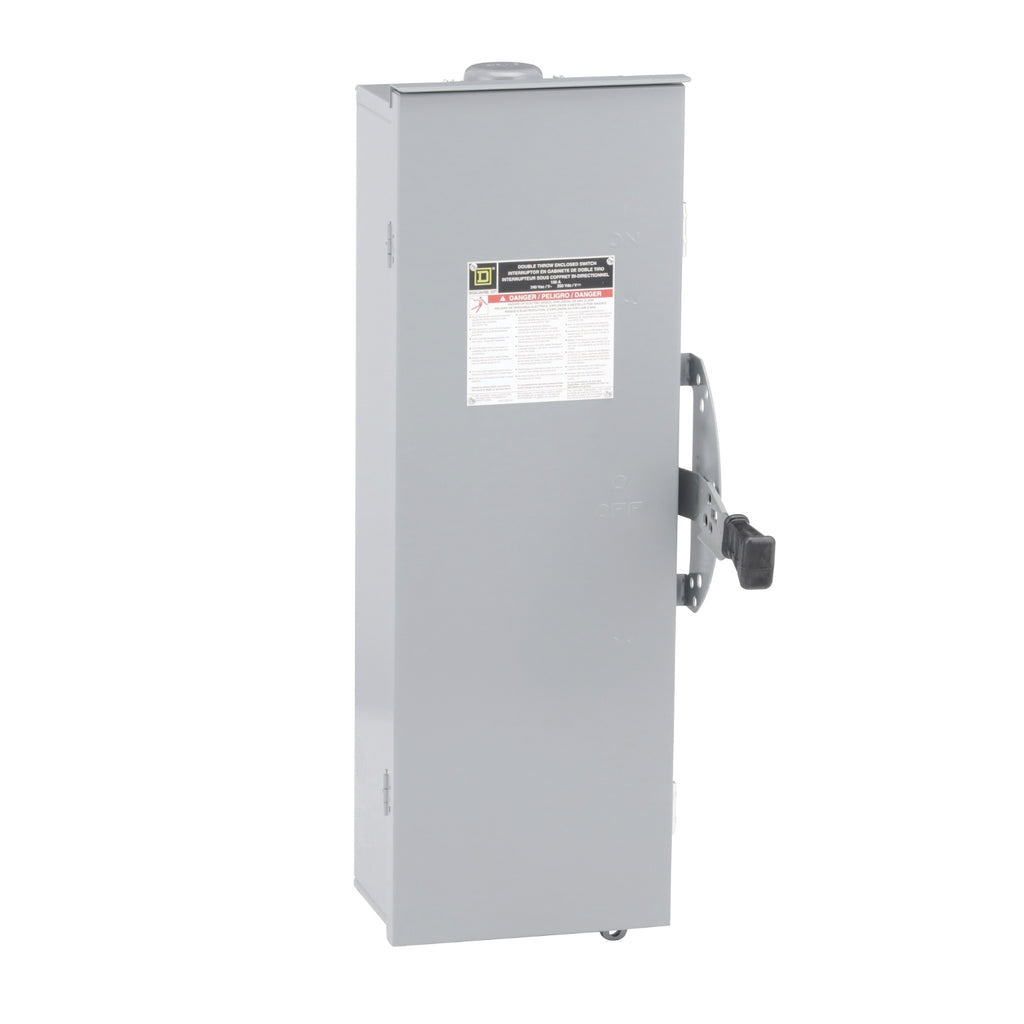

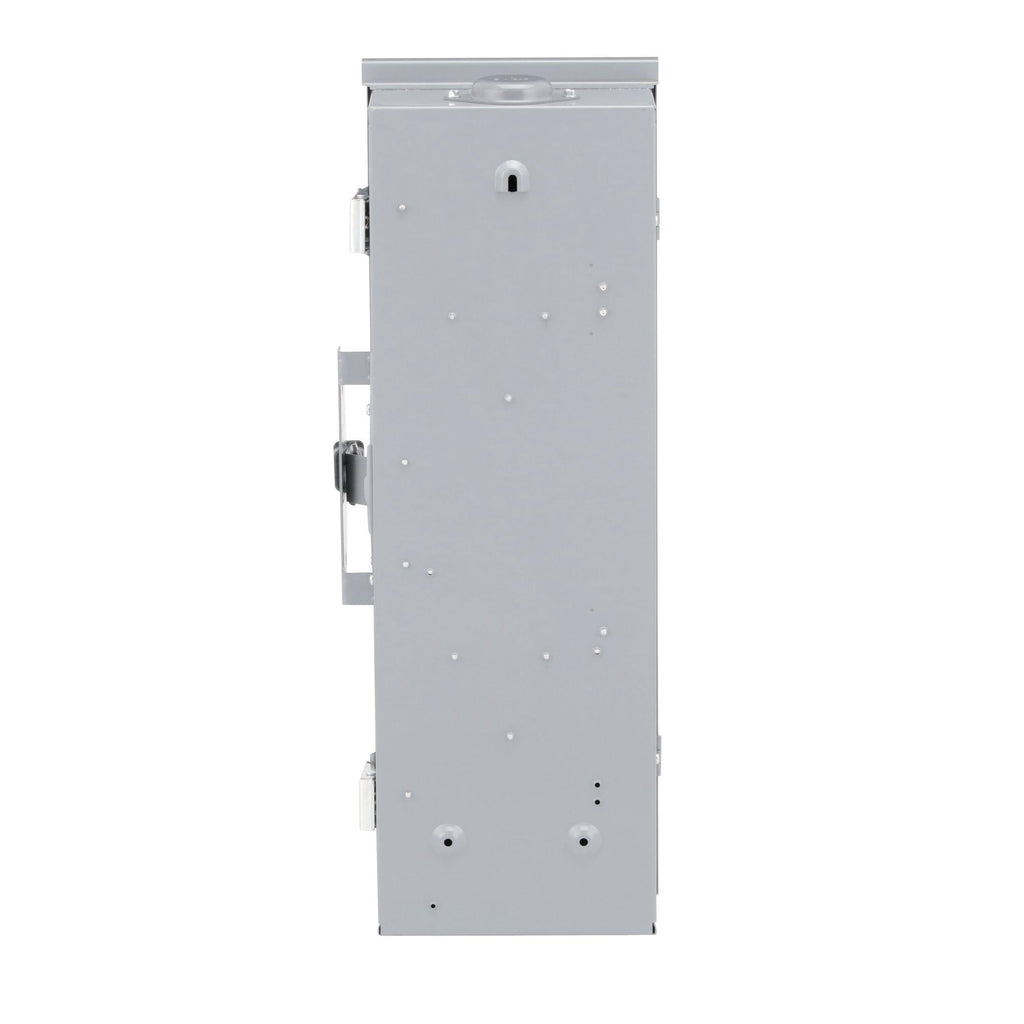

DTU323RB is a Square D 100 Amp, 240 Volt, 3 Pole non-fusible safety switch designed for reliable power distribution and safety disconnect applications.This switch features a NEMA 3R rated enclosure suitable for indoor and outdoor use, surface mounting, and a 200kA interrupting rating. It is constructed with a galvanized steel frame and provides robust protection and durability for electrical circuits.
- Manufacturer: Square D
- Amperage: 100 Amps
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Interrupt Rating: 200kA
- Mounting Type: Surface Mount
- Frame Type: D
- Non-Fusible
- Enclosure Rating: NEMA 3R
- Indoor/Outdoor Use
Specifications
- Part Number: DTU323RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 240 AC
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : H, K, R, J, T
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : RLF
Product Data
- UPC : 78590130873
- GTIN : 00785901308737
- Country of Origin : United States
- Dimensions : 30.5 in (774.7 mm) x 11.96 in (303.78 mm) x 6.93 in (176.02 mm) (Height x Width x Depth)
- Weight : 38.519
- Certification : UL listed
