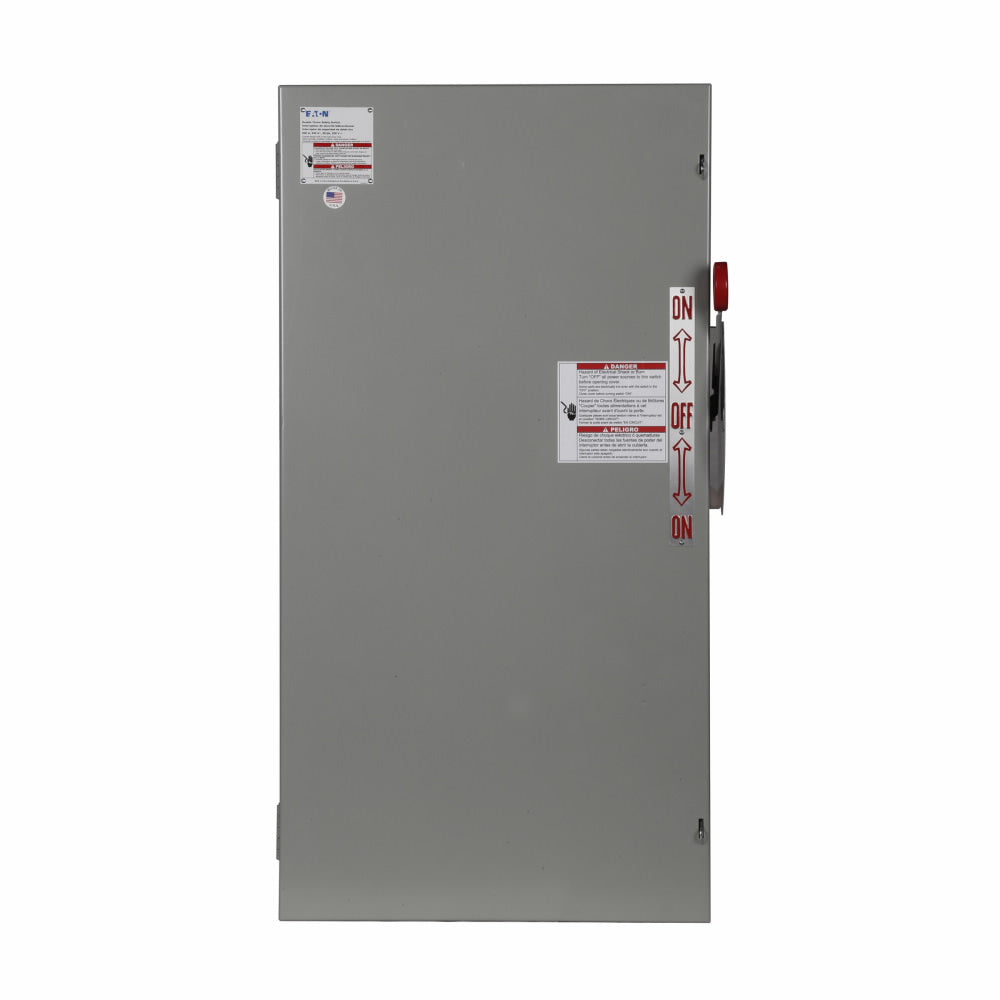

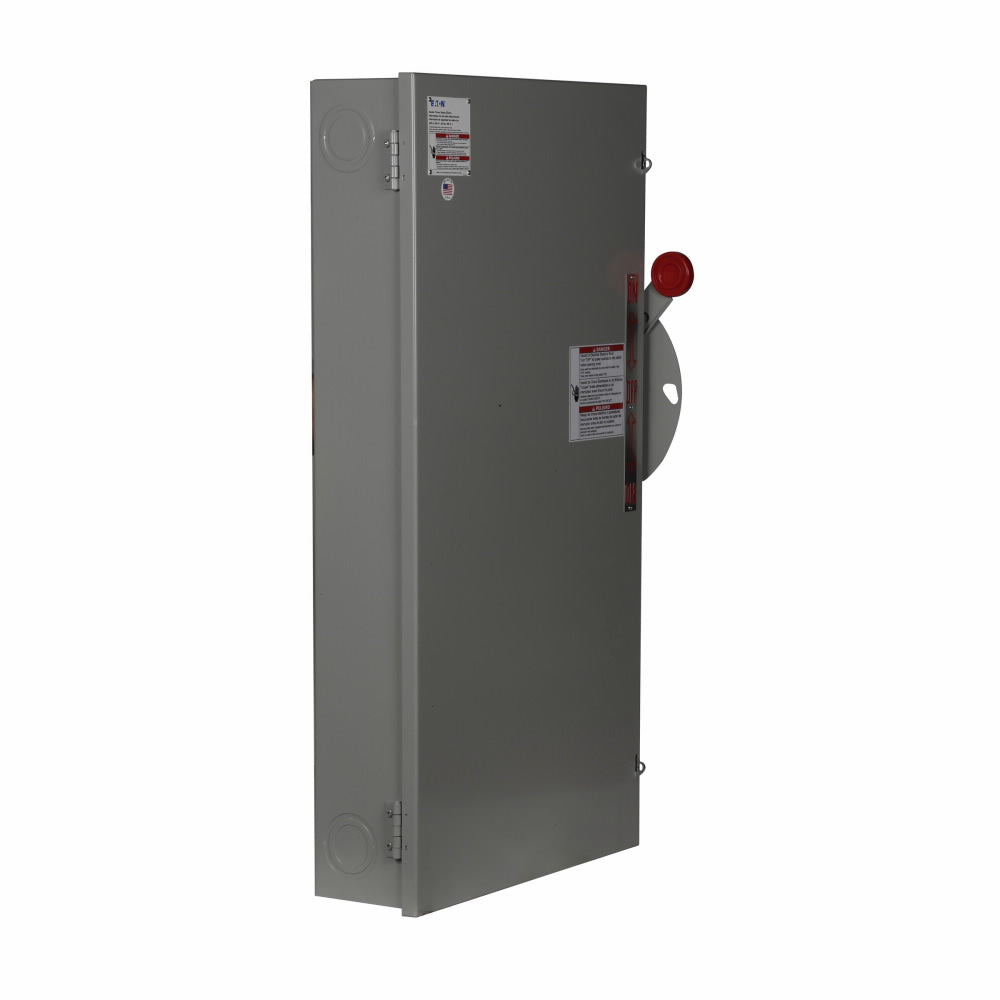

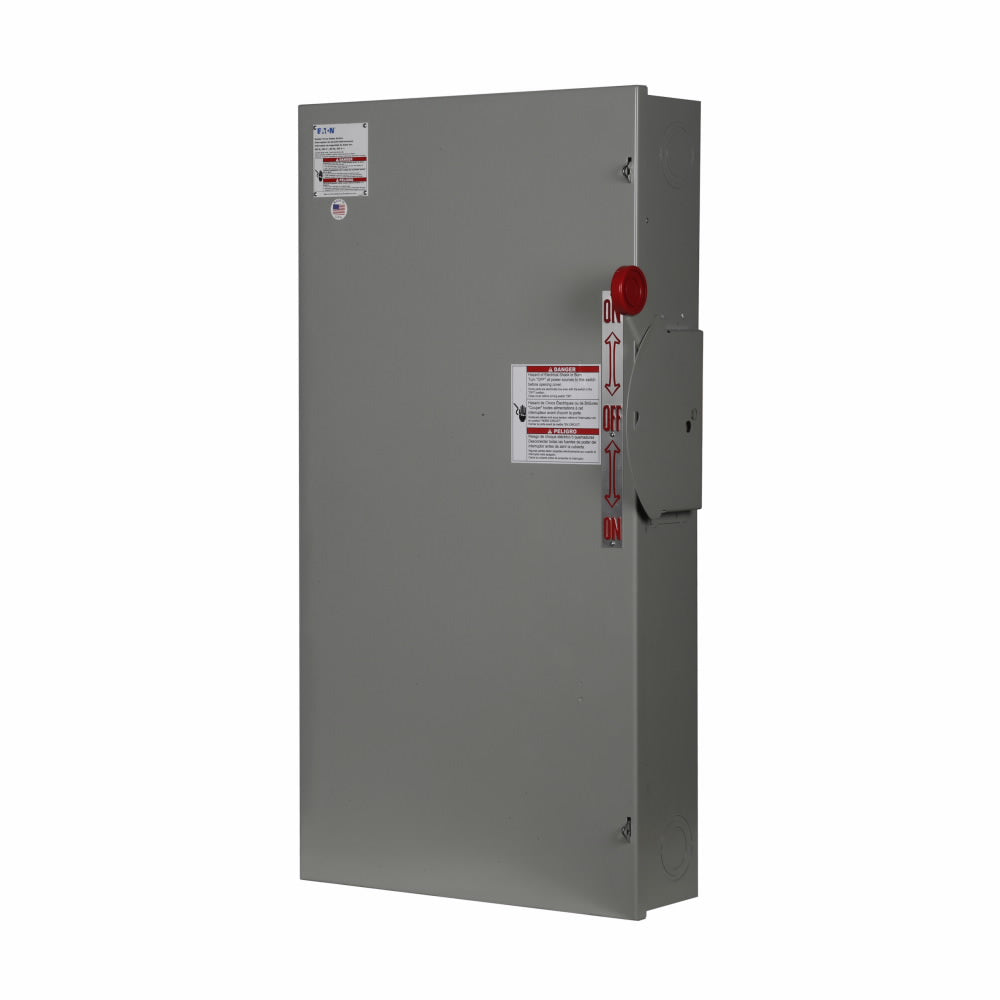

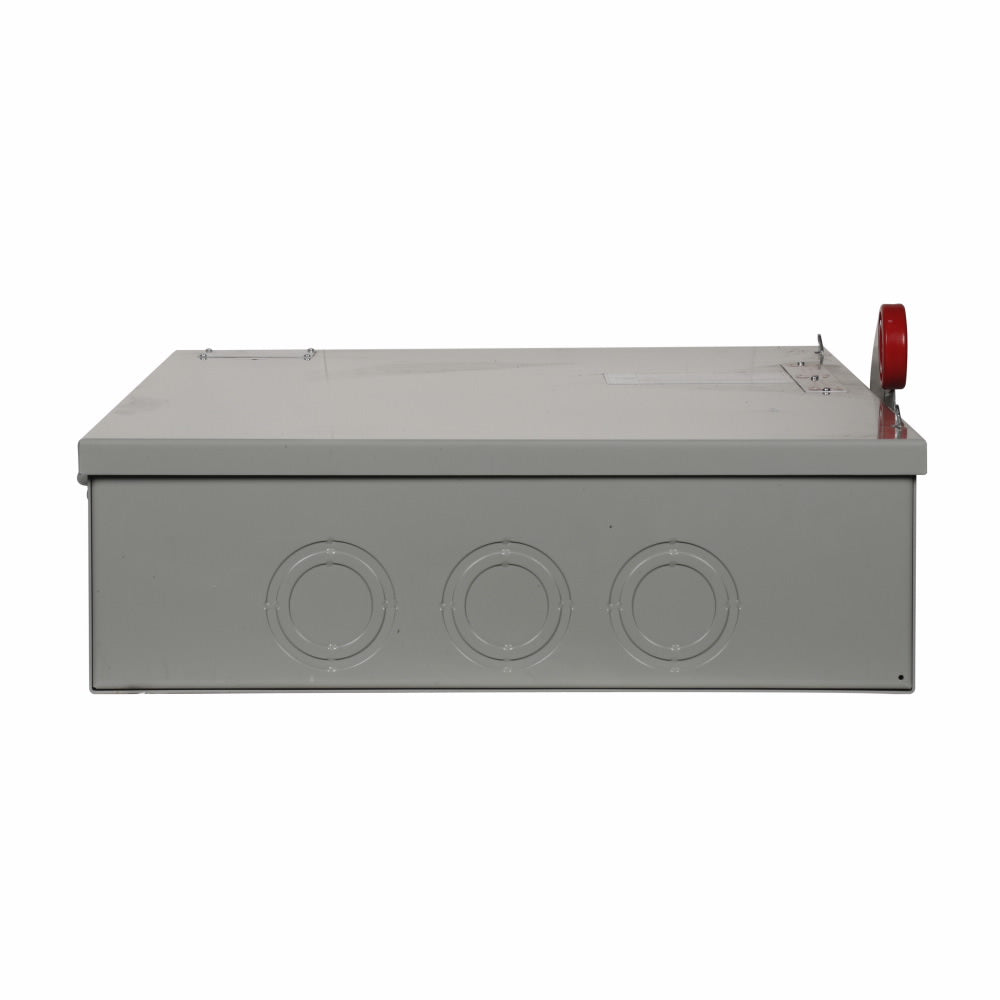

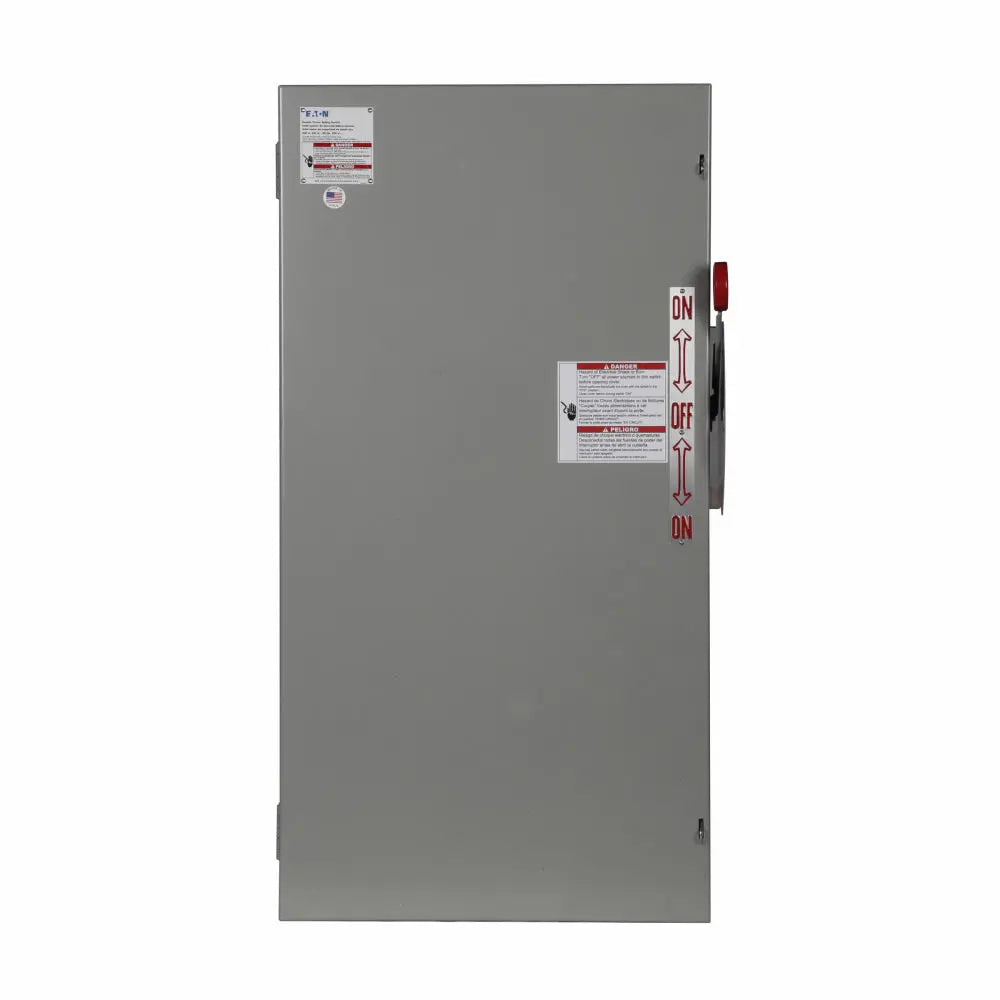

DT364UGK - Cutler Hammer 200A 3-Pole 600V Non-Fusible Heavy Duty Safety Switch

DT364UGK

DT364UGK is a heavy-duty, non-fusible safety switch designed for industrial and commercial power distribution applications requiring reliable disconnect and load-switching capabilities.

This double-throw safety switch delivers robust performance in demanding environments with a painted steel NEMA 1 enclosure. The non-fusible design accepts Class R fuses and provides manual on-off control with a visible blade disconnect mechanism. Rated for both AC and DC service, this switch is suitable for motor control and general load switching across multiple voltage systems.

• Current Rating: 200 Amperes
• Poles: 3-Pole
• Voltage: 600 VAC, 250 VDC
• Phase: 3-Phase
• Type: Non-Fusible, Double-Throw
• Enclosure Rating: NEMA 1
• Interrupt Rating: 100 kA at 600V
• Horsepower: 60 HP at 240 VAC, 125 HP at 480 VAC, 150 HP at 600 VAC
• Enclosure Material: Painted Steel
• Mounting: Surface Mount
• Blade Configuration: Visible Disconnect

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DT364UGK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DT Series
• Type : DT
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@600V
• Configuration : Double
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : SEDA

Product Data

• UPC : 782113613970
• GTIN : 00782113226941
• Country of Origin : United States
• Dimensions : 11.26 in x 37.69 in x 19.15 in (Length/Depth x Height x Width)
• Weight : 80
• Certification : UL Listed
