Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DT362URK

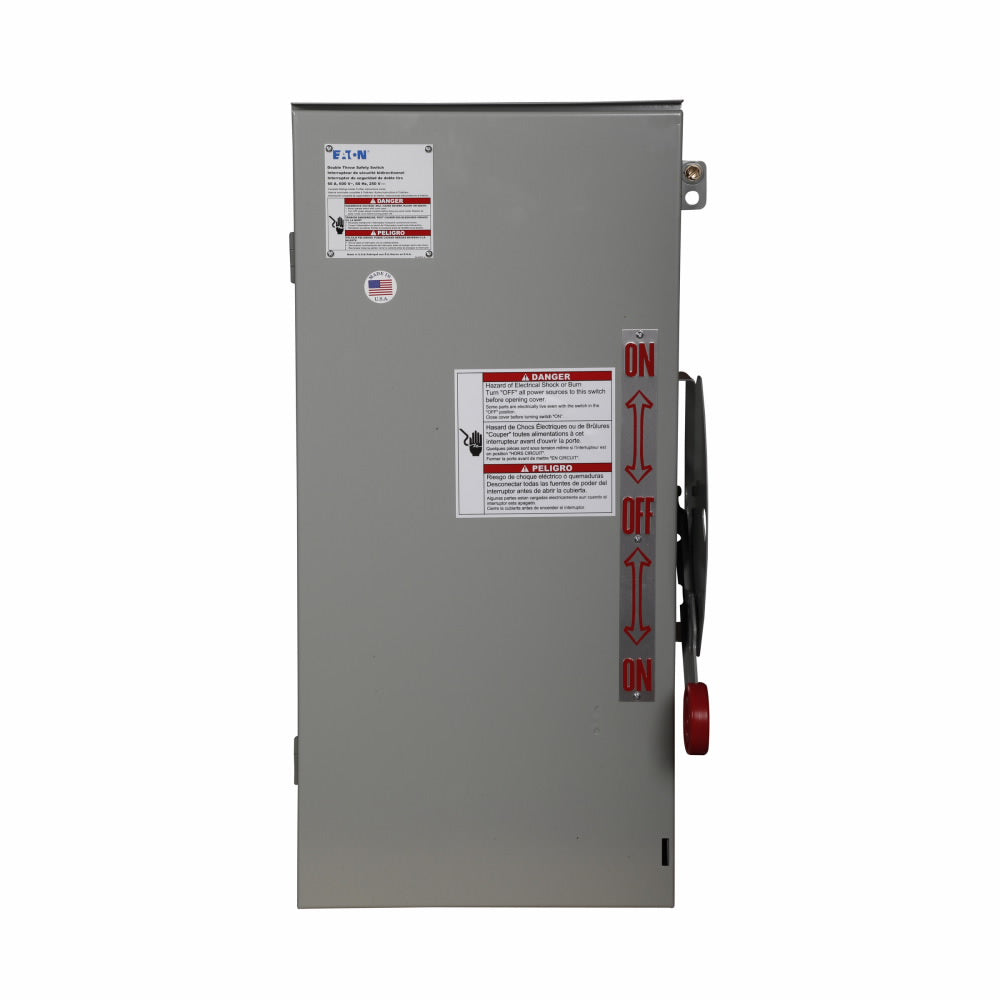

DT362URK is a Cutler Hammer 60 Amp, 3-pole, 600 Volt non-fusible double throw safety switch designed for heavy-duty applications.This switch features a painted galvanized steel enclosure rated NEMA 3R for rainproof protection, suitable for outdoor use. It supports 600 VAC and 250 VDC voltage ratings and includes a 100kA interrupting rating at 600V. The device is non-fusible and designed for three-wire, three-phase systems. It is UL listed and built for reliable service entrance use with optional neutral or ground lug kits.
- Key Specifications
- Amperage: 60A
- Voltage Rating: 600 VAC / 250 VDC
- Number of Poles: 3
- Enclosure Type: NEMA 3R
- Enclosure Material: Painted galvanized steel
- Fuse Configuration: Non-fusible
- Interrupt Rating: 100kA at 600V
- Switch Type: Double Throw
- Number of Wires: 3
- Certifications: UL Listed
- Part Number: DT362URK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DT Series
- Type : DT
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 100kA@600V
- Configuration : Double
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : TFJ
- UPC : 782113426396
- GTIN : 00782113426396
- Country of Origin : United States
- Dimensions : 11.19 in x 25.02 in x 11.95 in (Length/Depth x Height x Width)
- Weight : 34
- Certification : UL Listed
