Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DT324FGK

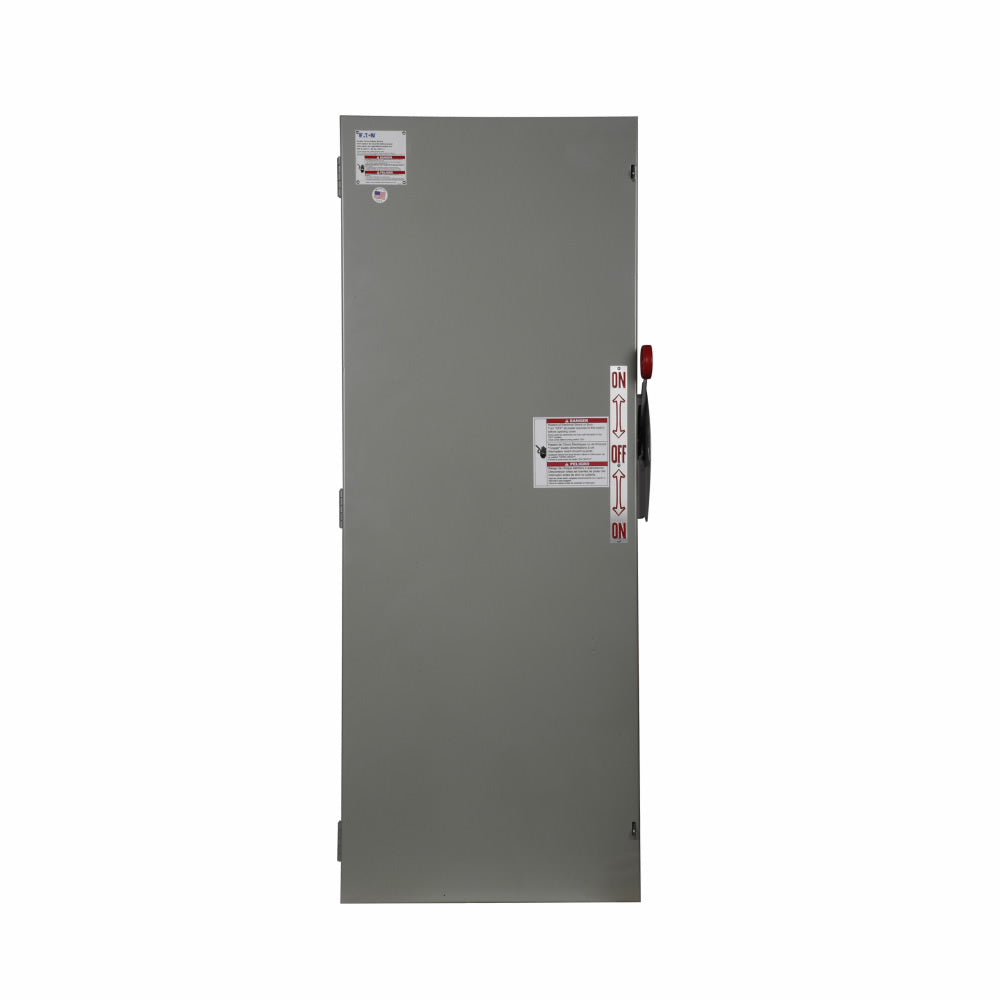

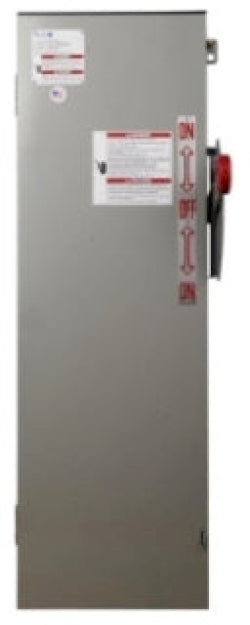

DT324FGK is a Cutler Hammer heavy duty double-throw safety switch designed for 200 amp, 240 volt applications with a three-pole configuration.
This switch features a NEMA 1 painted steel enclosure and is part of the K-series. It is fusible without neutral and accommodates Class H fuses. The switch is suitable for service entrance use when a neutral or ground lug kit is installed. It is UL Listed for safety and reliability.
- Key Specifications
- Amperage Rating: 200A
- Voltage Rating: 240V
- Number of Poles: Three-pole
- Enclosure Type: NEMA 1
- Enclosure Material: Painted Steel
- Fuse Class Provision: Class H fuses
- Fuse Configuration: Fusible without neutral
- Series: K-Series
- Switch Type: Heavy duty double-throw
- Number of Wires: Three-wire
- Certifications: UL Listed
- Part Number: DT324FGK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DT Series
- Type : DT
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Double
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : TFK
- UPC : 782113614021
- GTIN : 00782113614021
- Country of Origin : United States
- Dimensions : 19.15 in x 51.36 in x 11.26 in (Length/Depth x Height x Width)
- Weight : 95
- Certification : UL Listed
