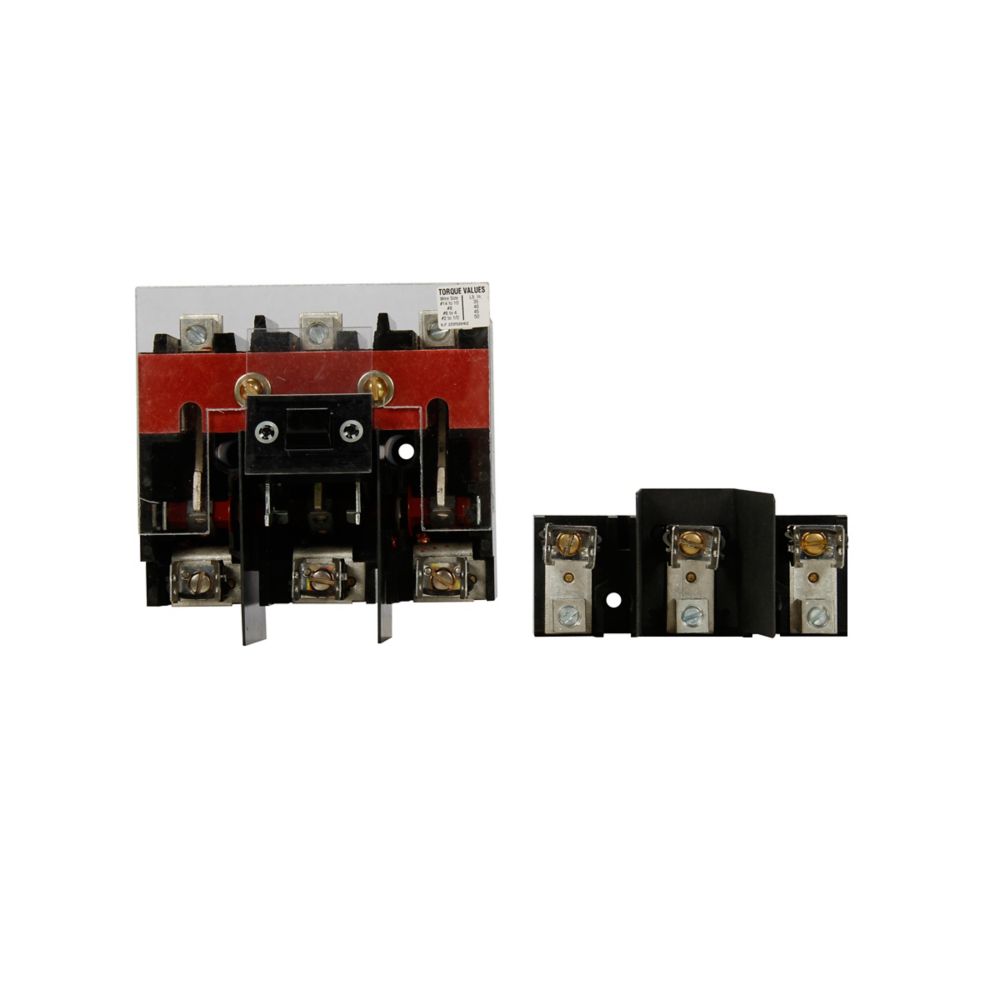

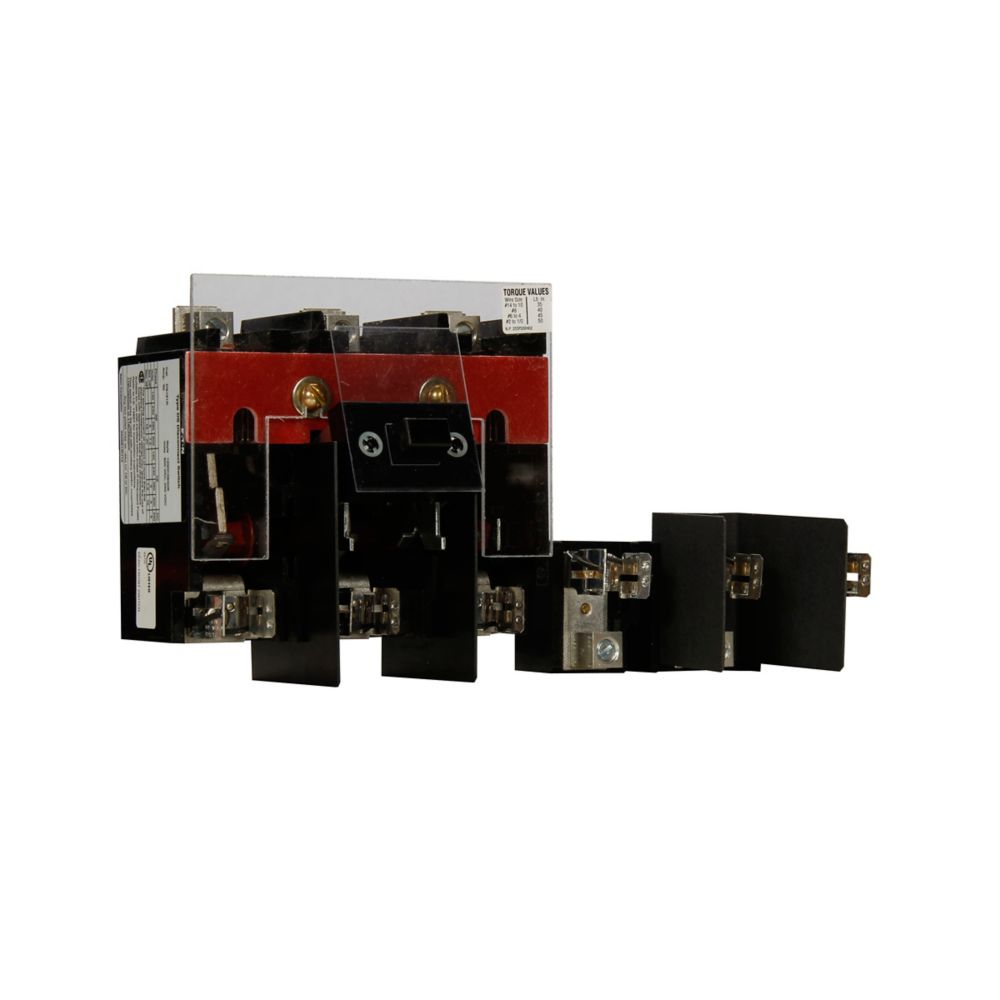

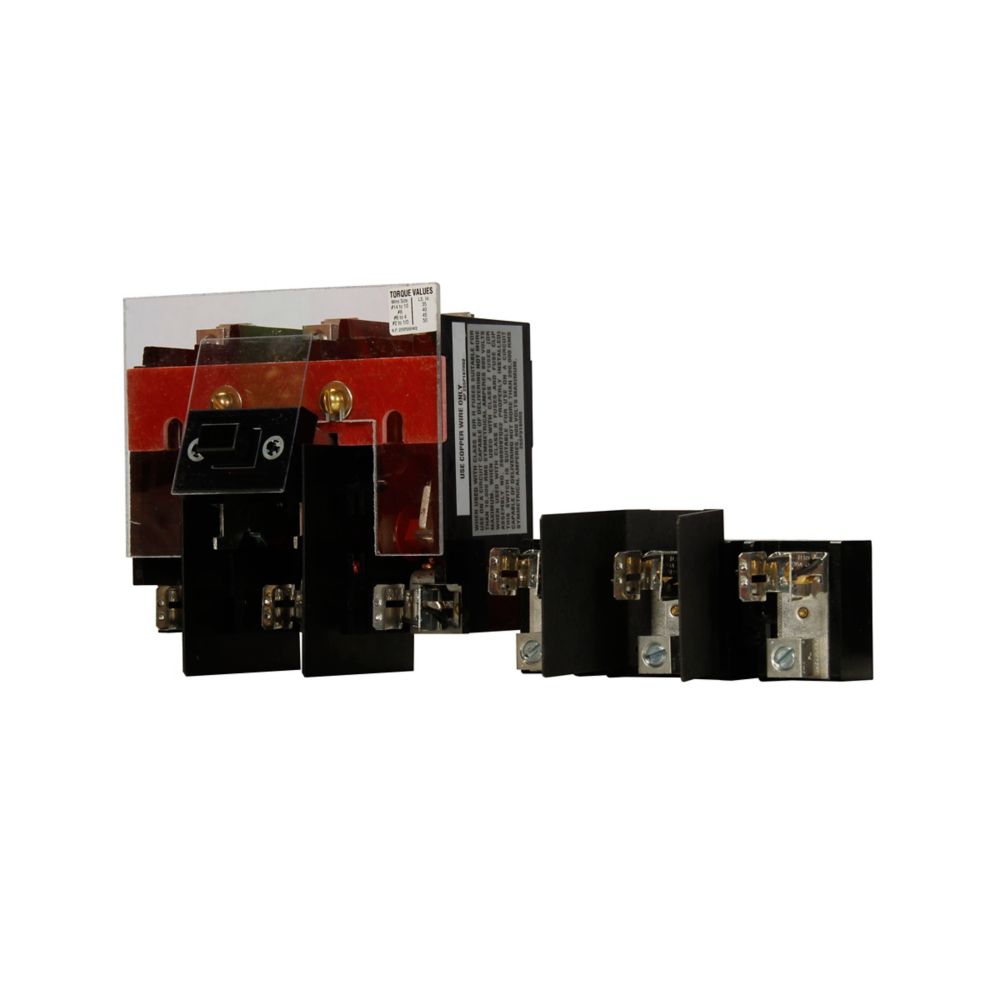

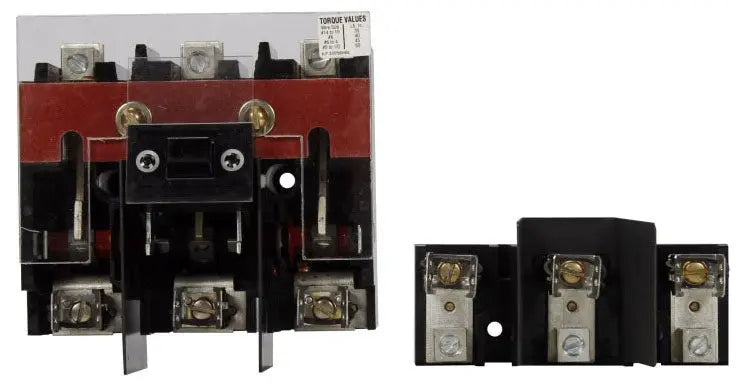

DS161R - Eaton 30A 600V 3-Pole Fusible Type DS Disconnect Switch

DS161R

DS161R is a 30 Amp, 600 Volt, 3-pole fusible disconnect switch from Eaton's Type DS series designed for safe and reliable power disconnection.This Eaton DS161R switch features a panel-mounted design with three poles and three wires, supporting both 600 VAC and 250 VDC applications. It includes Class R fuse clips rated for 30A at 600 VAC, providing effective circuit protection. The switch is fusible, allowing for safe interruption of power and maintenance operations. It is suitable for industrial and commercial electrical systems requiring a robust disconnect solution.

• Amperage: 30 Amps
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Type: DS Fusible Disconnect Switch
• Fuse Class: Class R
• Mounting Type: Panel Mounted
• Number of Wires: 3
• Complete unit with fuse clips

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DS161R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Section : Switch Mechanisms
• Family : DS
• Type : DS
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R,J
• Configuration : Single
• Switch Style : Fusible
• Compatible Frames : TED

Product Data

• UPC : 786679047323
• GTIN : 00782114313008
• Country of Origin : Dominican Republic
• Dimensions : 9.9 in x 5.3 in x 6 in (Length/Depth x Height x Width)
• Weight : 3.15
• Certification : UL Listed,CSA Certified
