Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
DNBA2020

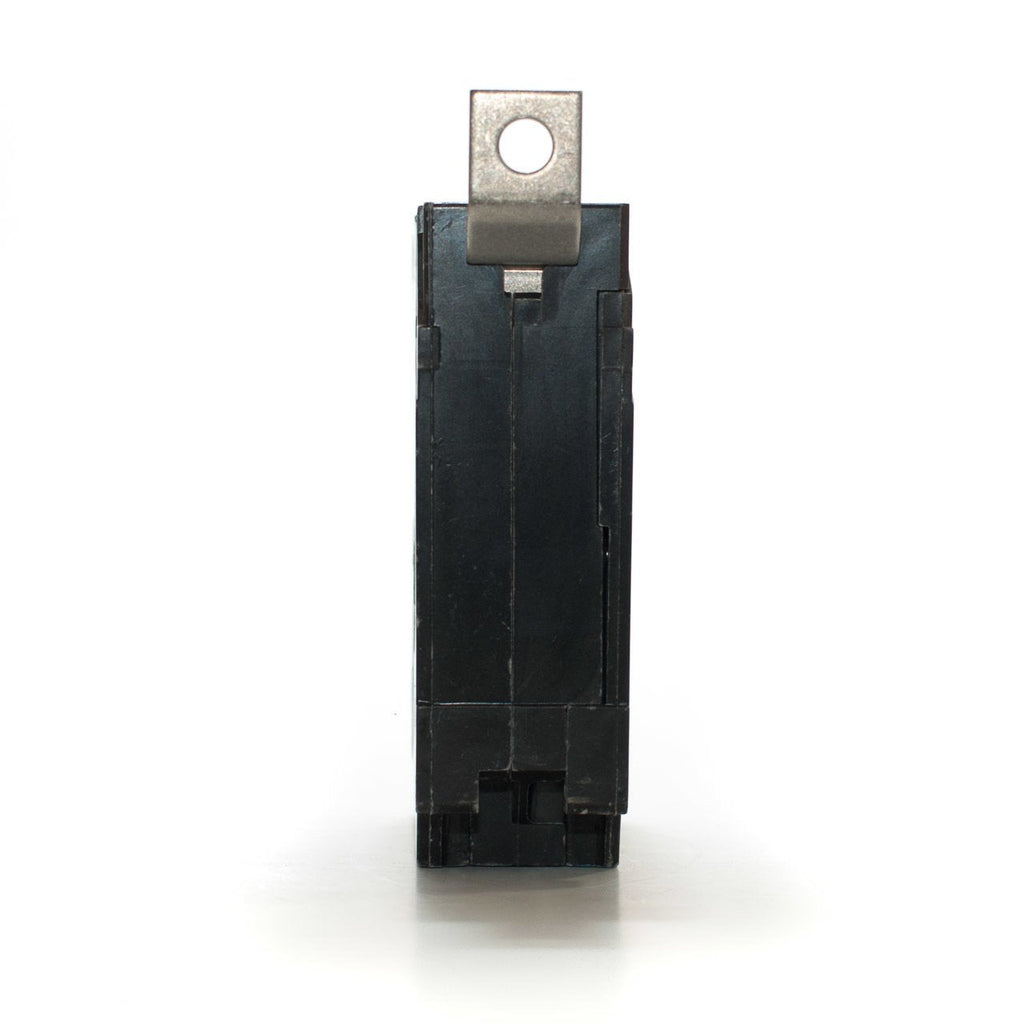

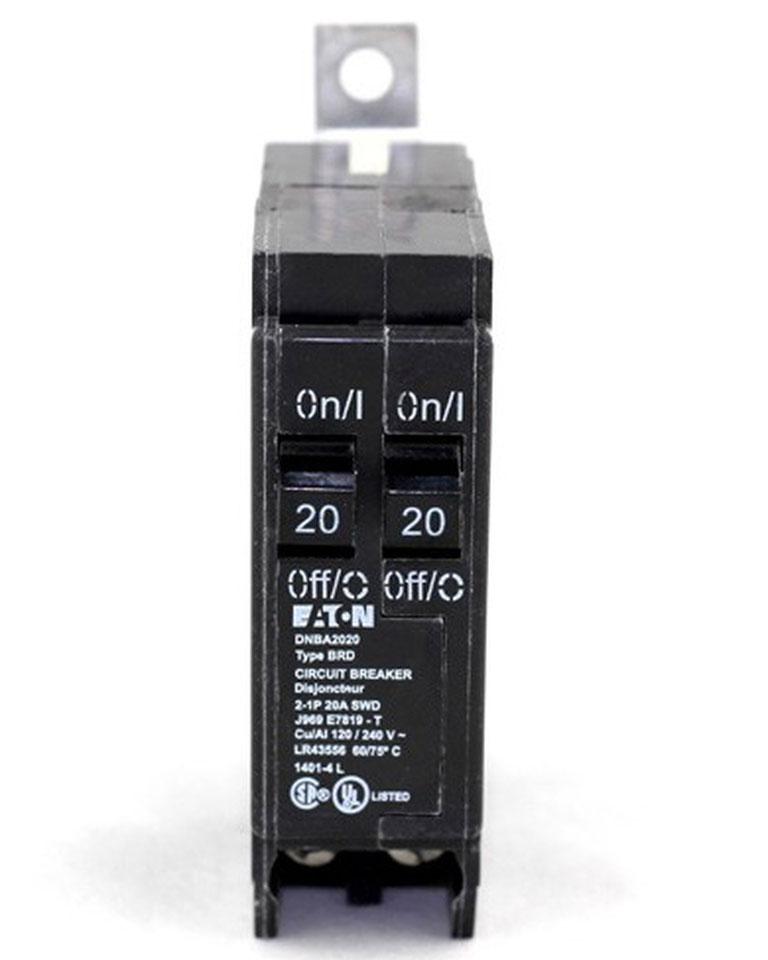

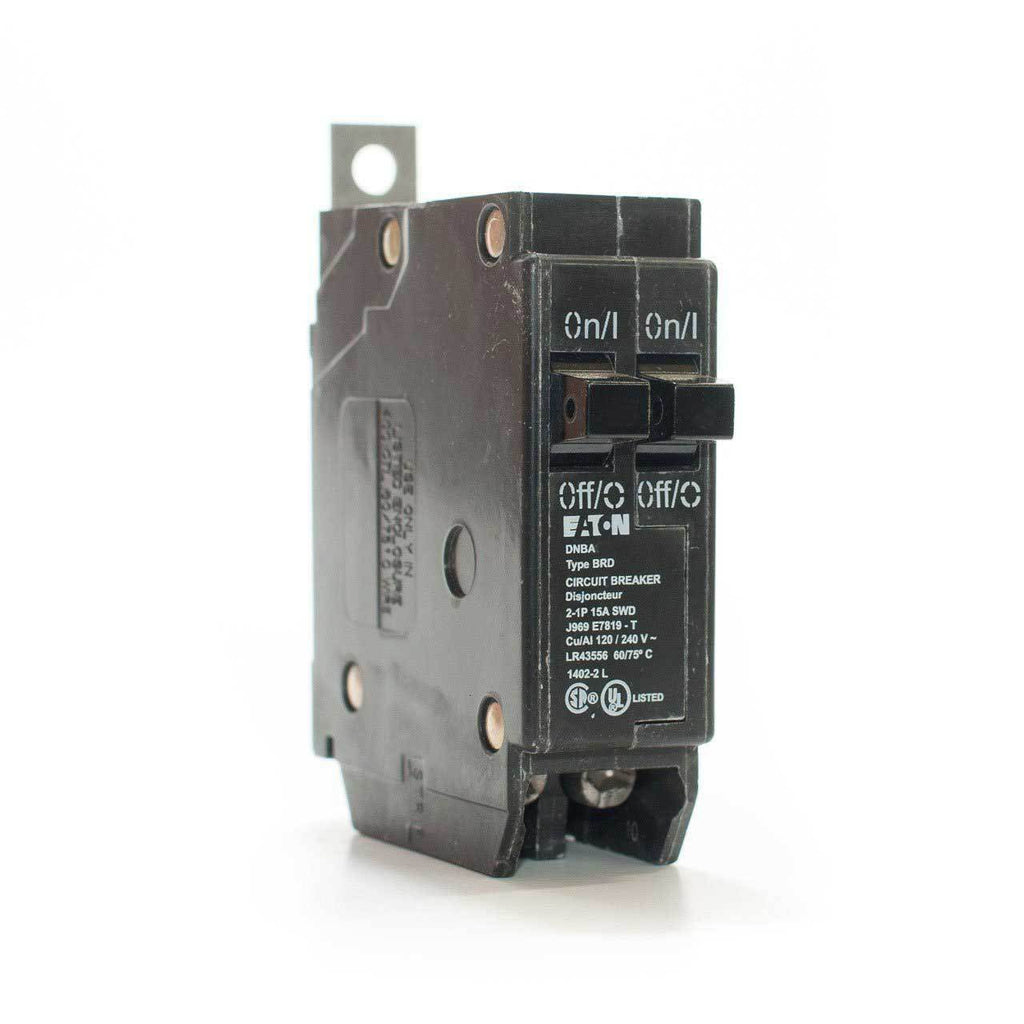

DNBA2020 is a Cutler Hammer thermal magnetic circuit breaker designed for reliable protection in electrical systems.This Eaton BAB series breaker features a 20 ampere rating, two poles, and a 10 kA interrupt rating at 240 volts. It supports wire sizes from #14 to 4 AWG and mounts with a bolt-on connection. The breaker is CSA certified and suitable for use in Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline panel boards.
- Key Specifications
- Amperage: 20 A
- Voltage: 120/240 V AC
- Poles: Two-pole
- Interrupt Rating: 10 kAIC at 240 V
- Type: Thermal magnetic
- Frame: BAB series
- Mounting: Bolt-on
- Wire Size: #14-4 AWG
- Certifications: CSA Certified
- Weight: 1 lb
- Dimensions: 3.5 in depth x 3.25 in height x 0.4 in width
Specifications
- Part Number: DNBA2020
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Type DNBA
- Type : DNBA
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Plug-On
- Functions : LI - Long Time and Instantaneous Trip
Product Data
- UPC : 078211430470
- GTIN : 00782114304709
- Dimensions : 3.5 in x 3.25 in x 0.4 in (Length/Depth x Height x Width)
- Weight : 1
- Wire Size : AWG 14 to AWG 4
