DH661UDK - Cutler Hammer 30A 600V 6-Pole Non-Fusible Heavy Duty Safety Switch NEMA 12

DH661UDK

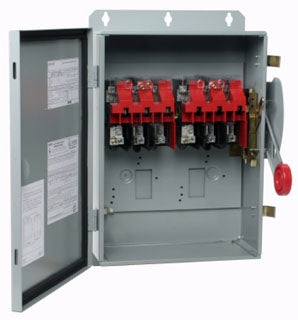

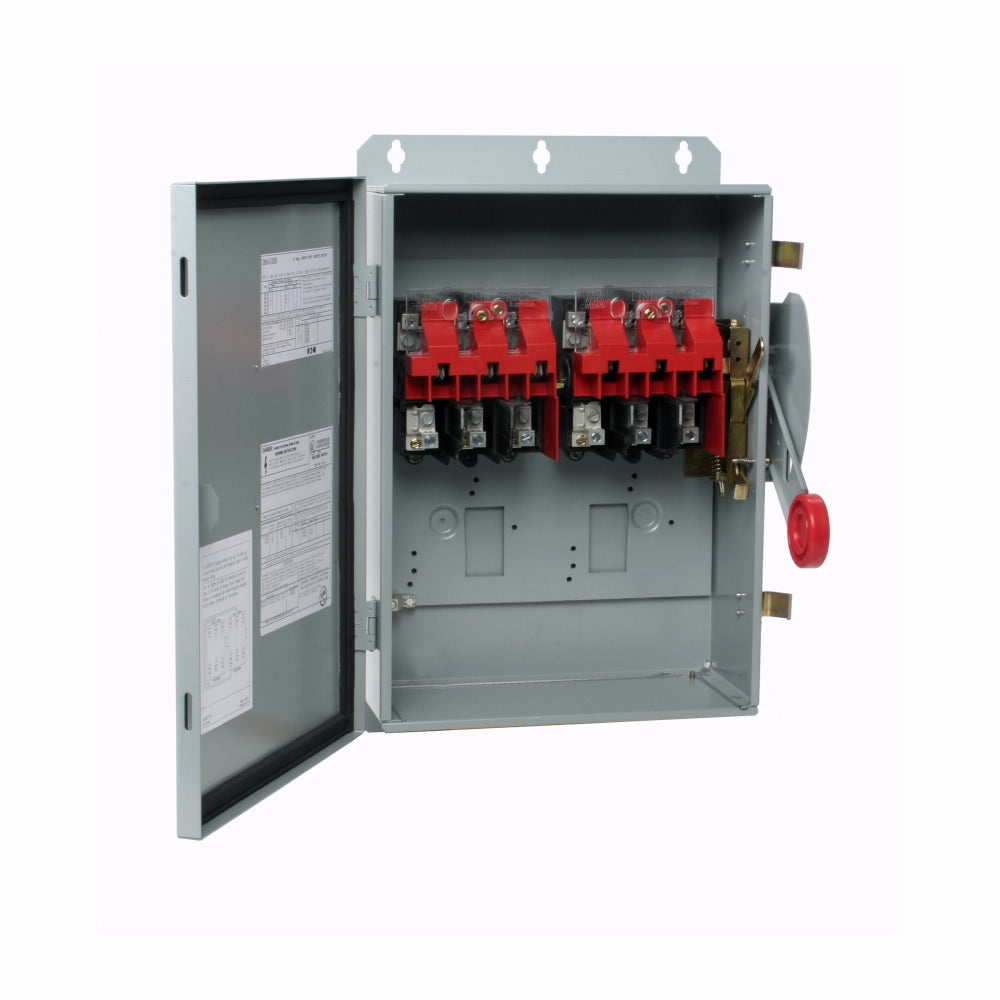

DH661UDK is a Cutler Hammer heavy duty non-fusible safety switch rated for 30 amps and 600 volts with 6 poles and 6 wires, designed for industrial applications.This single-throw disconnect switch features a painted galvanized steel enclosure with a NEMA 12 rating for dusttight protection. It supports 3-phase power and is suitable for surface mounting. The switch has an interrupt rating of 10,000 AIC at 600 VAC and is UL listed. It can be field modified to meet NEMA 3R rainproof requirements. The DH661UDK is designed for reliable isolation and safety in motor circuit applications.

Key Specifications
• Amperage: 30 A
• Voltage: 600 VAC / 250 VDC
• Poles: 6
• Mounting Type: Surface
• Interrupt Rating: 10,000 AIC at 600 VAC
• Enclosure Rating: NEMA 12 (dusttight), field modifiable to NEMA 3R
• Material: Painted galvanized steel
• Trip Unit: Non-fusible, single-throw
• Phase: 3-phase
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DH661UDK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 6
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : 3R



Product Data

• UPC : 782113370477
• GTIN : 00782113370477
• Country of Origin : United States
• Dimensions : 10.22 in x 19.08 in x 13.42 in (Length/Depth x Height x Width)
• Weight : 28
• Certification : UL Listed
