Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH368UGK

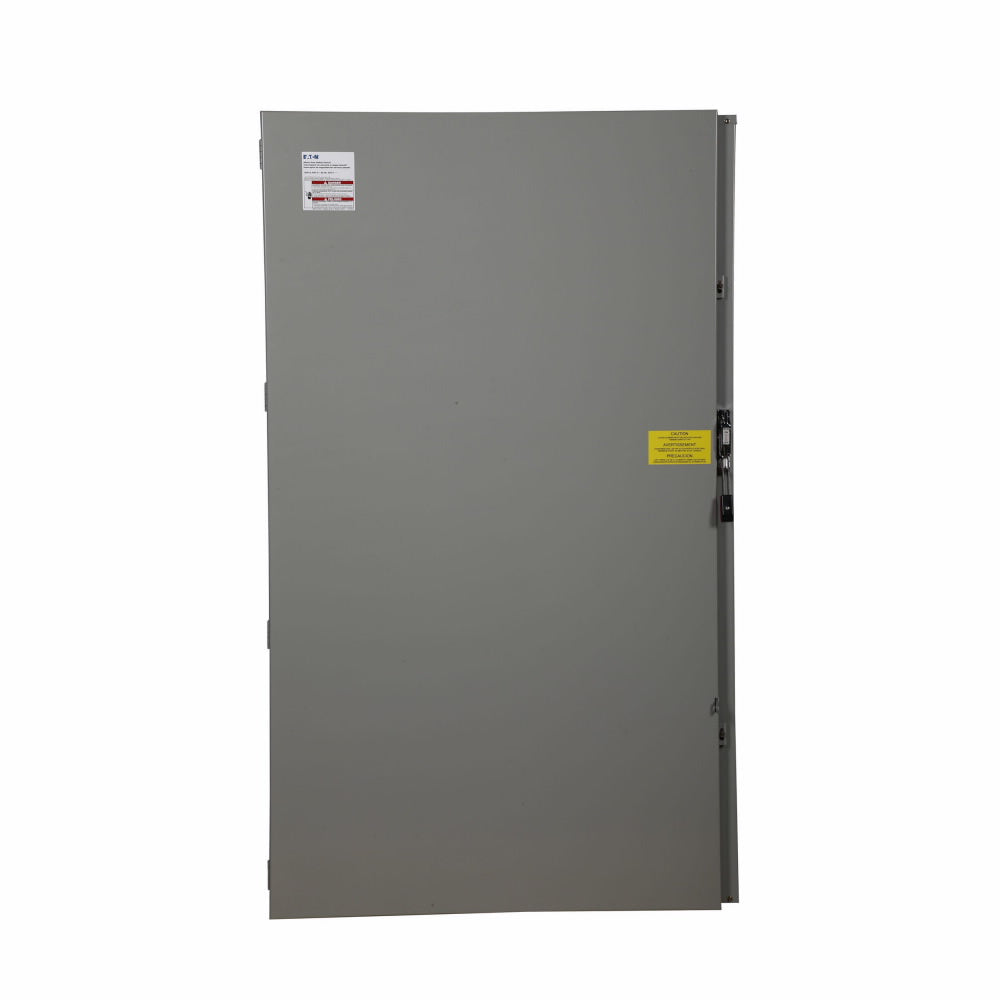

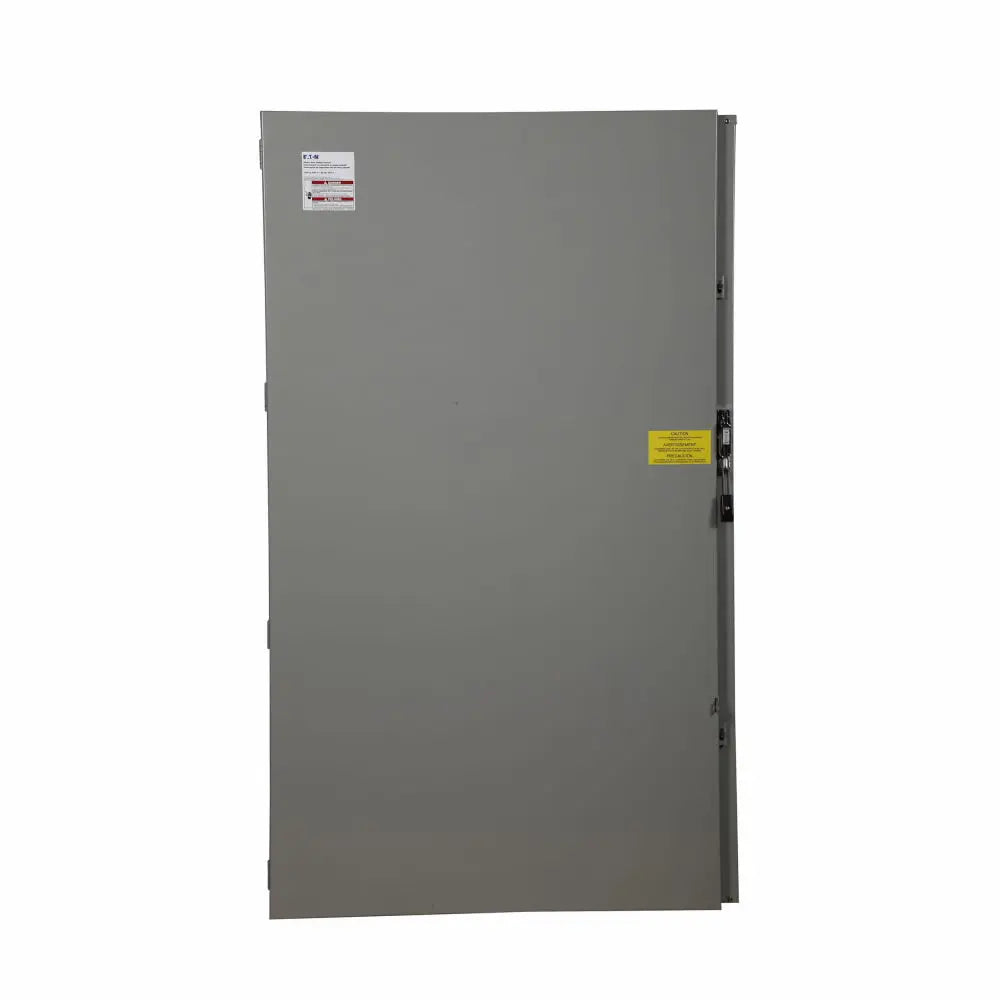

DH368UGK is a heavy duty single-throw non-fused safety switch designed for industrial power distribution and disconnect applications. This Cutler Hammer switch provides reliable load isolation and circuit protection in demanding environments with a painted steel enclosure rated for NEMA 1 indoor use. Key Specifications
- Amperage: 1200A
- Voltage: 600V
- Poles: Three-pole
- Throw: Single-throw
- Type: Non-fusible
- NEMA Rating: NEMA 1
- Enclosure Material: Painted steel
- Configuration: Three-wire
- Interrupt Rating: 200kA at 600V
Specifications
- Part Number: DH368UGK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 782114312964
- GTIN : 00782114312964
- Country of Origin : United States
- Dimensions : 17.12 in x 70.97 in x 43.12 in (Length/Depth x Height x Width)
- Weight : 430
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
