2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Disconnect
Description
DH368FRK

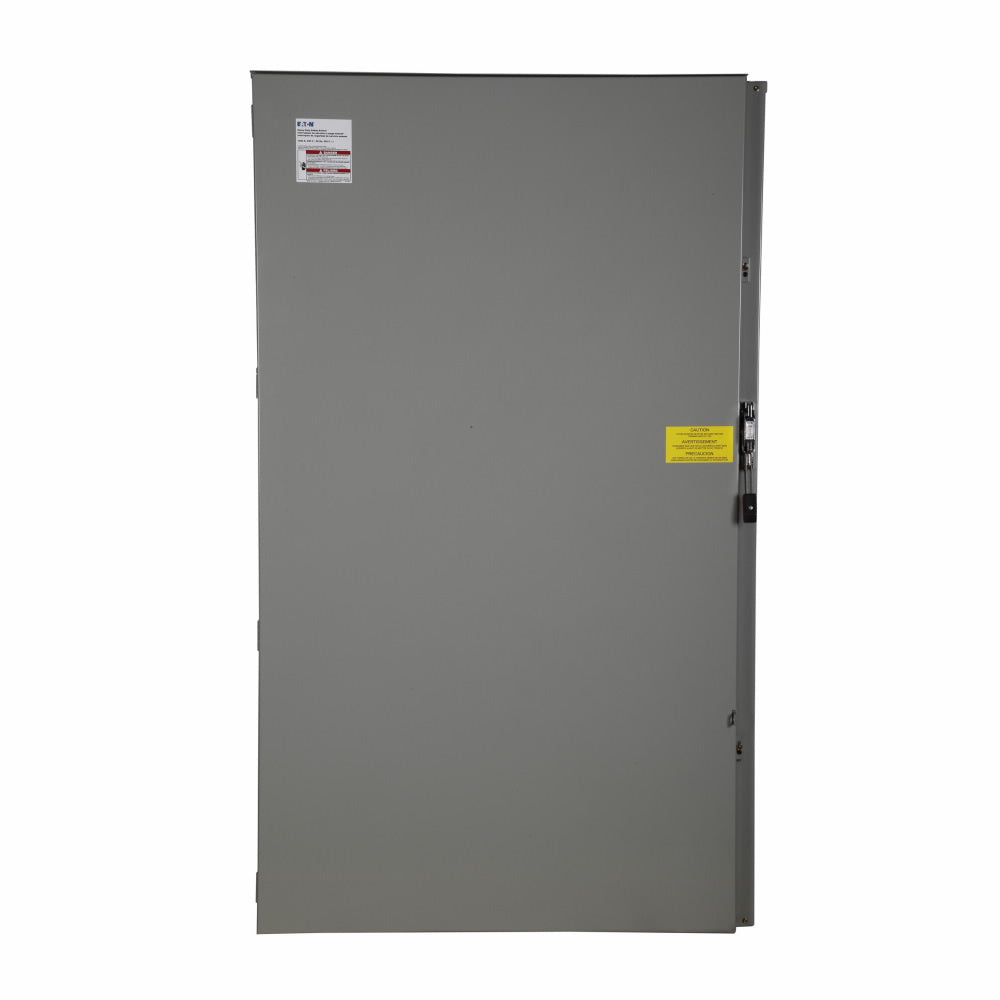

DH368FRK is an Eaton heavy duty fusible safety switch rated for 1200 amps and 600 volts with a 3-pole configuration and NEMA 3R enclosure.This enhanced visible blade single-throw safety switch features a painted galvanized steel enclosure, Class L fuses without neutral, and is designed for three-wire applications. It provides reliable circuit protection with a fusible design suitable for heavy industrial use and outdoor environments. The switch supports up to 750 kcmil aluminum conductors and is rated for service entrance use.
- Amperage: 1200 A
- Voltage: 600 V AC
- Poles: 3
- Wires: 3
- Mounting Type: Surface mount
- Interrupt Rating: Class L fuses
- Enclosure: NEMA 3R Painted Galvanized Steel
- Type: Enhanced Visible Blade Single-Throw
- Fusible: Yes, without neutral
- Series/Frame: K Series Heavy Duty
- Suitable for service entrance use
- Conductor Size: Up to (4) 750 kcmil Al
Specifications
- Part Number: DH368FRK
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X (EnviroLine)
- Amperage Maximum : 1200
- Amperage Minimum : 700
Product Data
- UPC : 782114313022
- GTIN : 00782114313022
- Country of Origin : United States
- Dimensions : 72 in x 21 in x 48 in (Length/Depth x Height x Width)
- Weight : 455 lb
- Certification : UL Listed
