Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Disconnect
- Series
- DH Series
- Rated current
- 800
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 100kA@600V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Solid State
- Coil voltage
- 277 V
- Connection
- Bolt-On
- Wires
- 4
- Configuration
- Single
- Switch style
- Fusible
- Fuse class
- R
- NEMA rating
- NEMA 1
- Country of origin
- United States
Show all specifications (7 more)
- Coil Voltage Maximum
- 277
- Coil Voltage Minimum
- 277
- Compatible Frames
- SGHA
- UPC
- 78211363926
- GTIN
- 00782113639260
- Dimensions
- 57.5 in x 12.38 in x 27.5 in (Length/Depth x Height x Width)
- Weight
- 175
Product description & additional details
DH367NGK

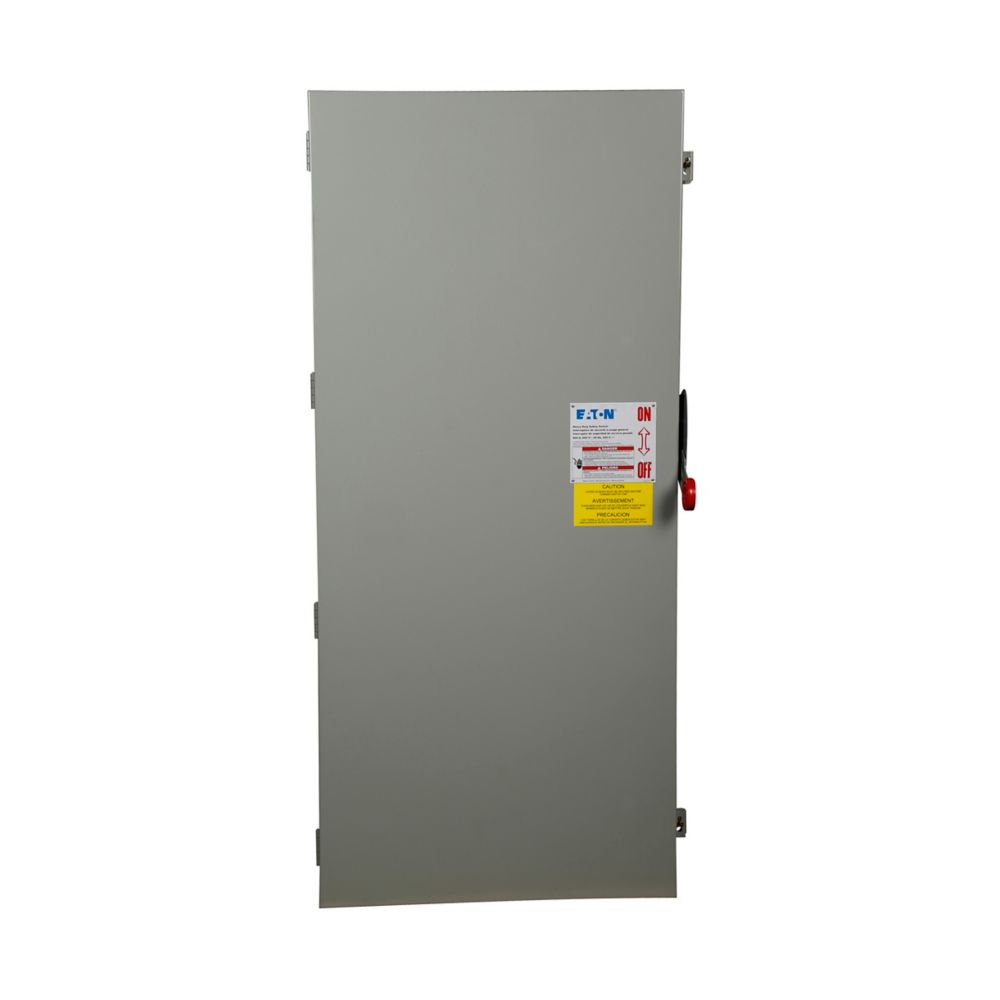

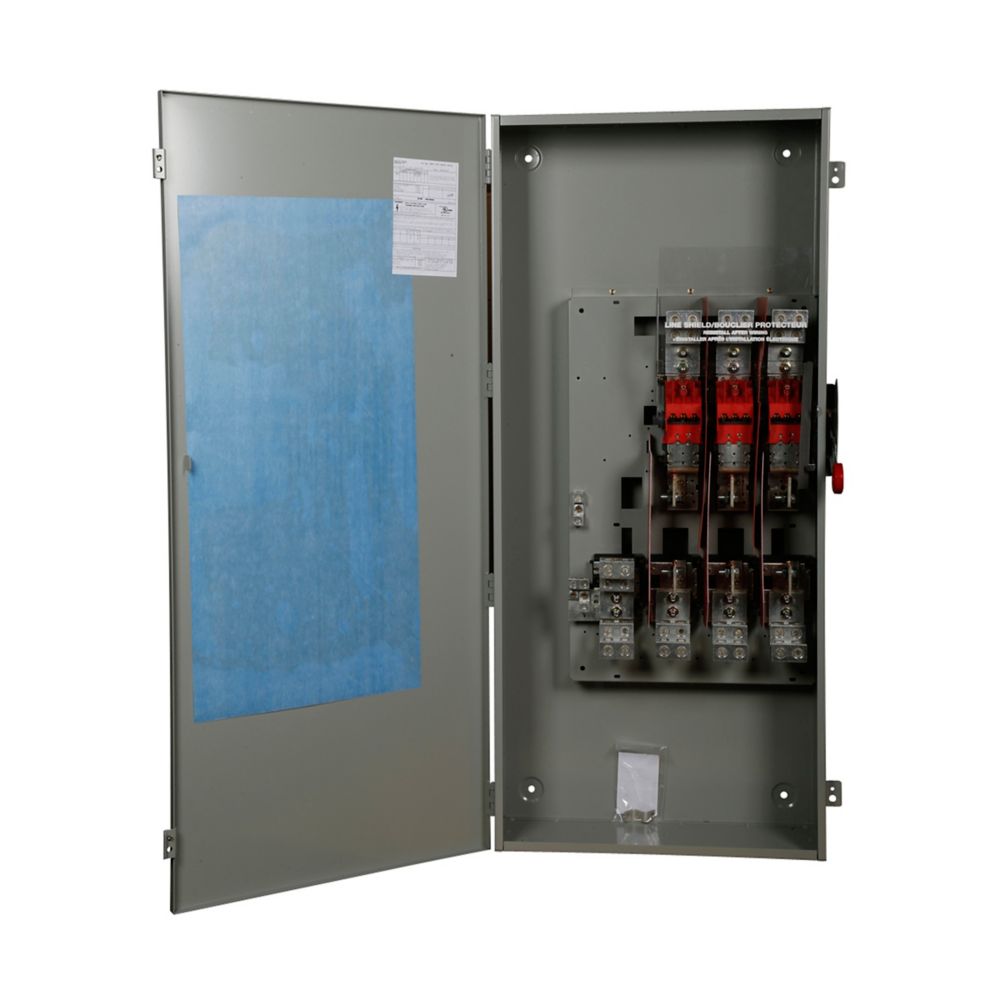

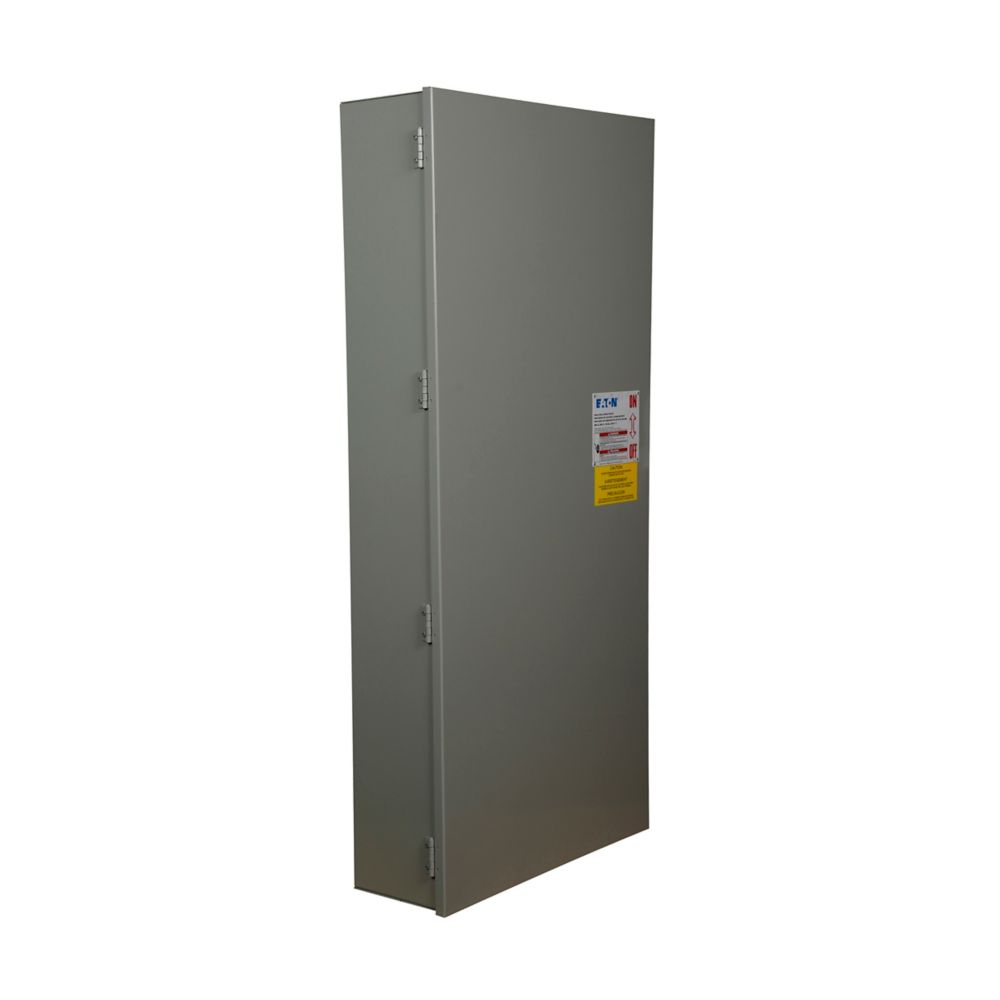

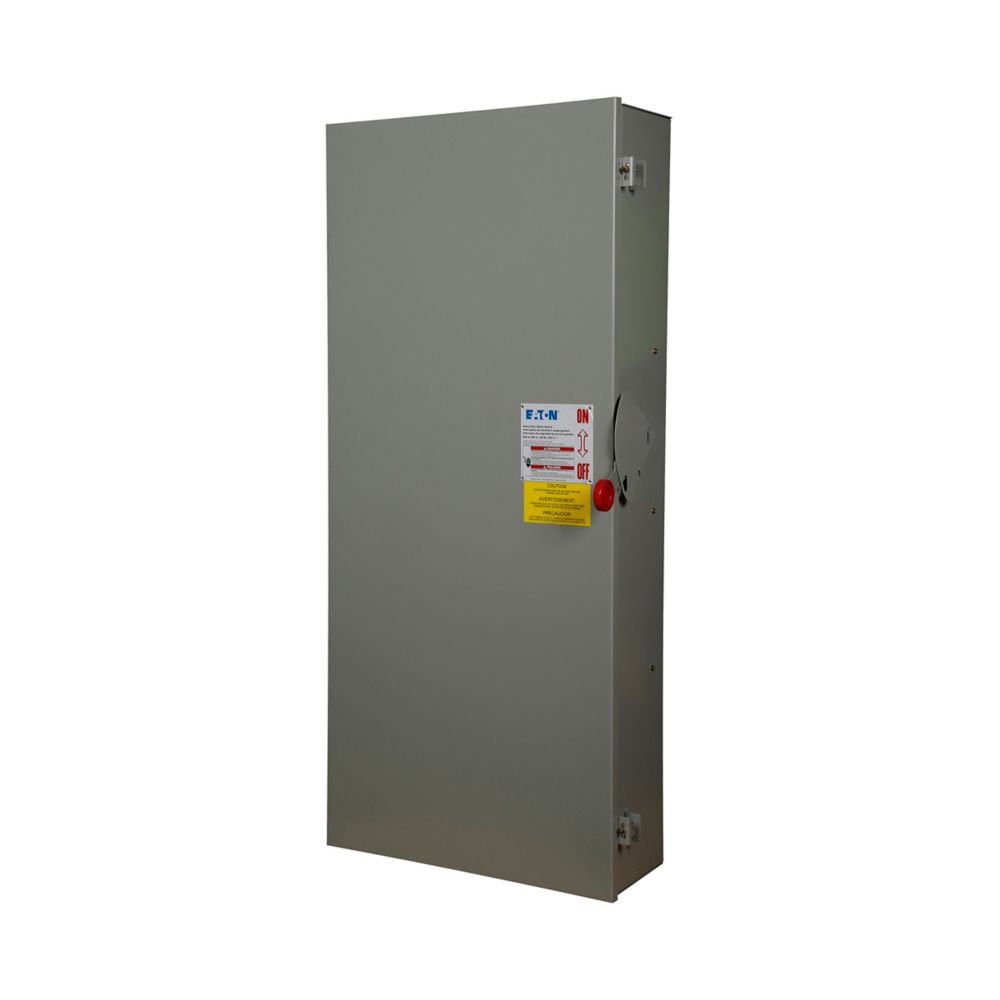

DH367NGK is a Cutler Hammer heavy duty fusible safety switch rated for 800 amps and 600 volts with a 3-pole configuration and NEMA 1 enclosure.This single-throw safety switch features a painted steel enclosure, Class L fuse compatibility, fusible with neutral design, and supports up to 500 HP motors. It is a three-pole, four-wire switch suitable for industrial power distribution applications requiring reliable disconnect and overcurrent protection.
- Amperage: 800 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3 Pole
- Mounting Type: NEMA 1 Painted Steel Enclosure
- Interrupt Rating: Class L Fuses
- Series/Frame: Heavy Duty
- Trip Unit: Fusible with Neutral
- Max Horsepower: 500 HP
- Number of Wires: 4 Wire
- Type: Single Throw Safety Switch
- Certifications: Eaton / Cutler Hammer Standard
Specifications
- Part Number: DH367NGK
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 100kA@600V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Fuse Class : R
- Wire : 4
- Configuration : Single
- Coil Voltage Maximum : 277
- Coil Voltage Minimum : 277
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Protection : Solid State
- Compatible Frames : SGHA
Product Data
- UPC : 78211363926
- GTIN : 00782113639260
- Country of Origin : United States
- Dimensions : 57.5 in x 12.38 in x 27.5 in (Length/Depth x Height x Width)
- Weight : 175
