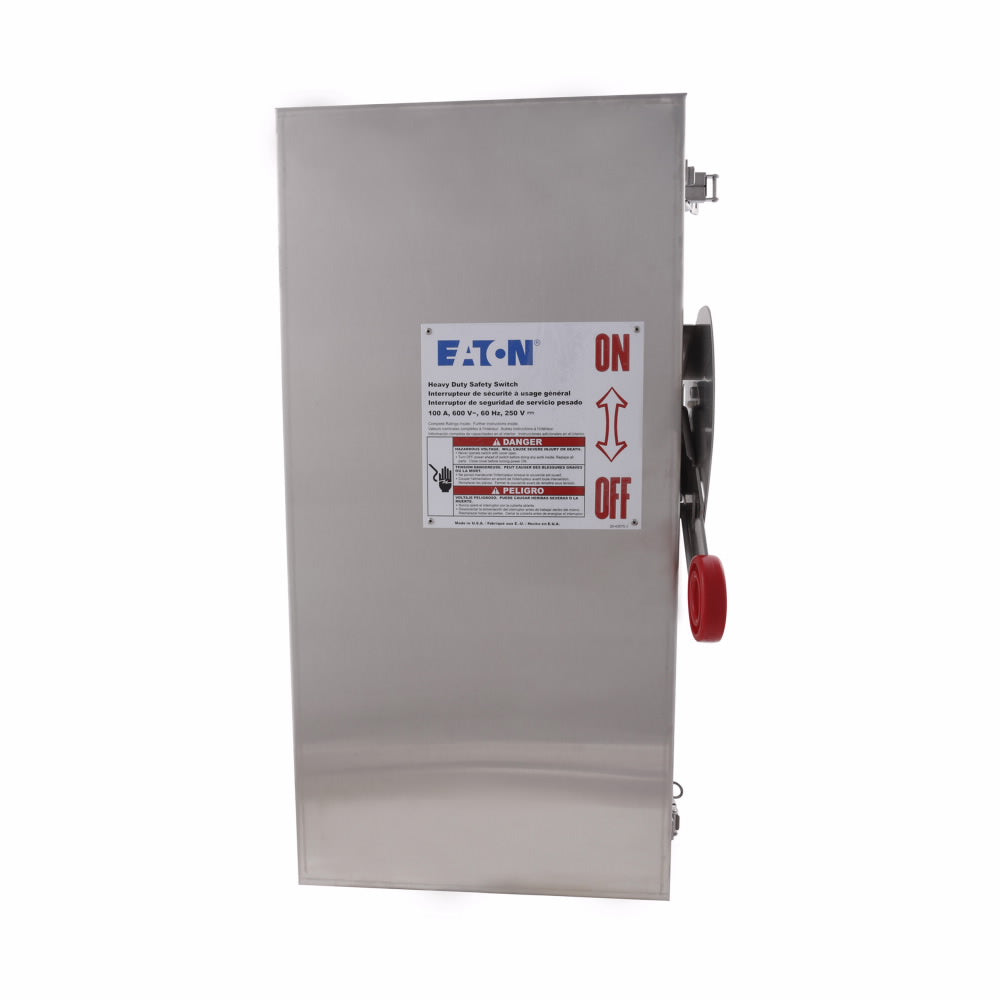

DH363UWK - Cutler Hammer Eaton Heavy Duty Non-Fusible Safety Switch, 100A, 600V, 3 Pole, NEMA 4X, Stainless Steel Enclosure, Single Throw, Service Entrance Rated

DH363UWK

DH363UWK is a Cutler Hammer Eaton heavy duty, non-fusible, single-throw safety switch designed for reliable service entrance and industrial applications.

This safety switch features a robust stainless steel NEMA 4X enclosure for superior corrosion resistance and durability. It is rated for 100A, 600V, and is suitable for three-phase systems. The non-fusible design provides a simple, maintenance-free disconnect solution, and the switch is service entrance rated when used with a neutral or ground lug kit.

Key Specifications
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Surface mount (enclosure dimensions: 10.25" x 11.13" x 24")
• Interrupt Rating: 200kA@600V
• Series/Frame: DH Series
• Trip Unit: Not applicable (non-fusible)
• Enclosure: NEMA 4X, stainless steel
• Contact Type: Single throw, three-pole
• Wiring: Three-wire
• Max HP Rating: 20 at 240V 1Ph, 40 at 480V 1Ph, 50 at 600V 1Ph, 40 at 240V 3Ph, 75 at 480V 3Ph, 100 at 600V 3Ph, 20 at 250V DC
• Certifications: Not specified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH363UWK
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 6
• Amperage : 1
• Phase : 3
• Poles : 3
• AIC rating : 2kA@6V
• Nema Rating : NEMA 4X

Product Data

• UPC : 78211320657
• GTIN : 00782113206578
• Country of Origin : United States
• Dimensions : 10.22 in x 24.95 in x 11.79 in (Length/Depth x Height x Width)
• Weight : 24.5
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
