Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH363NGK

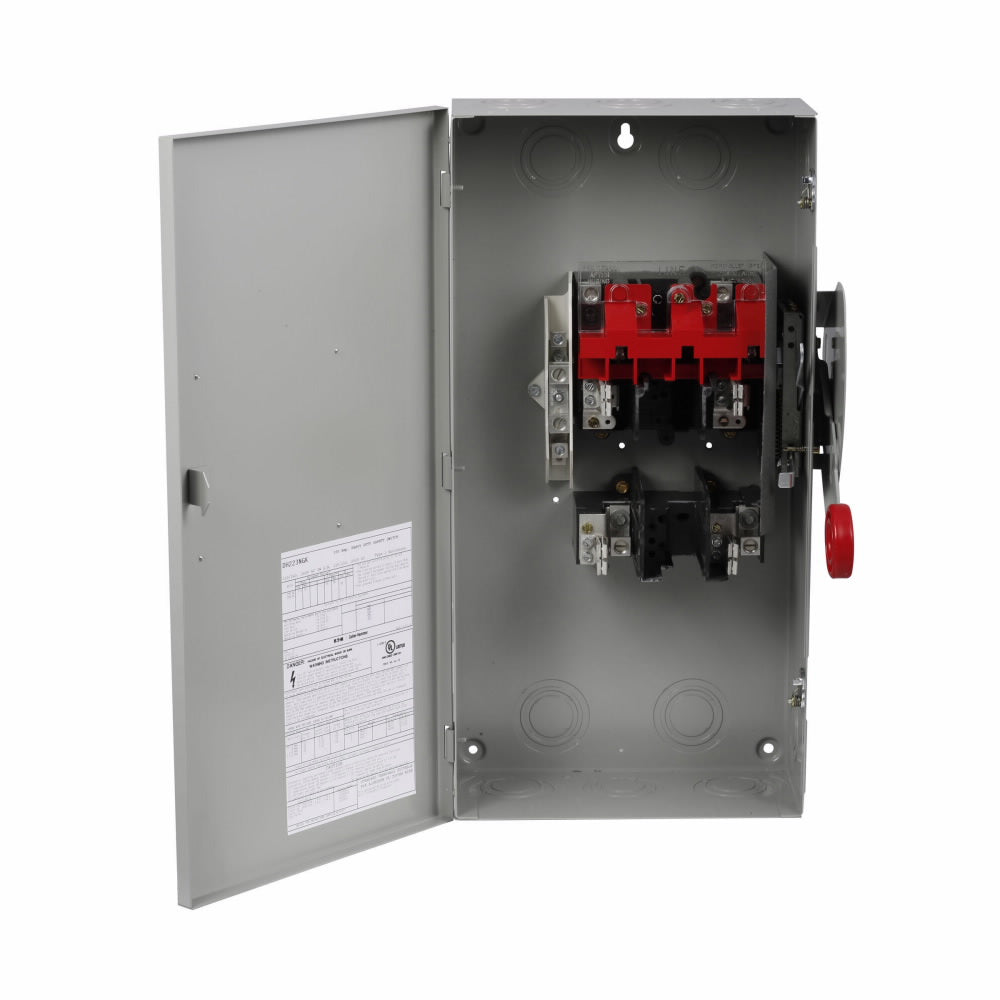

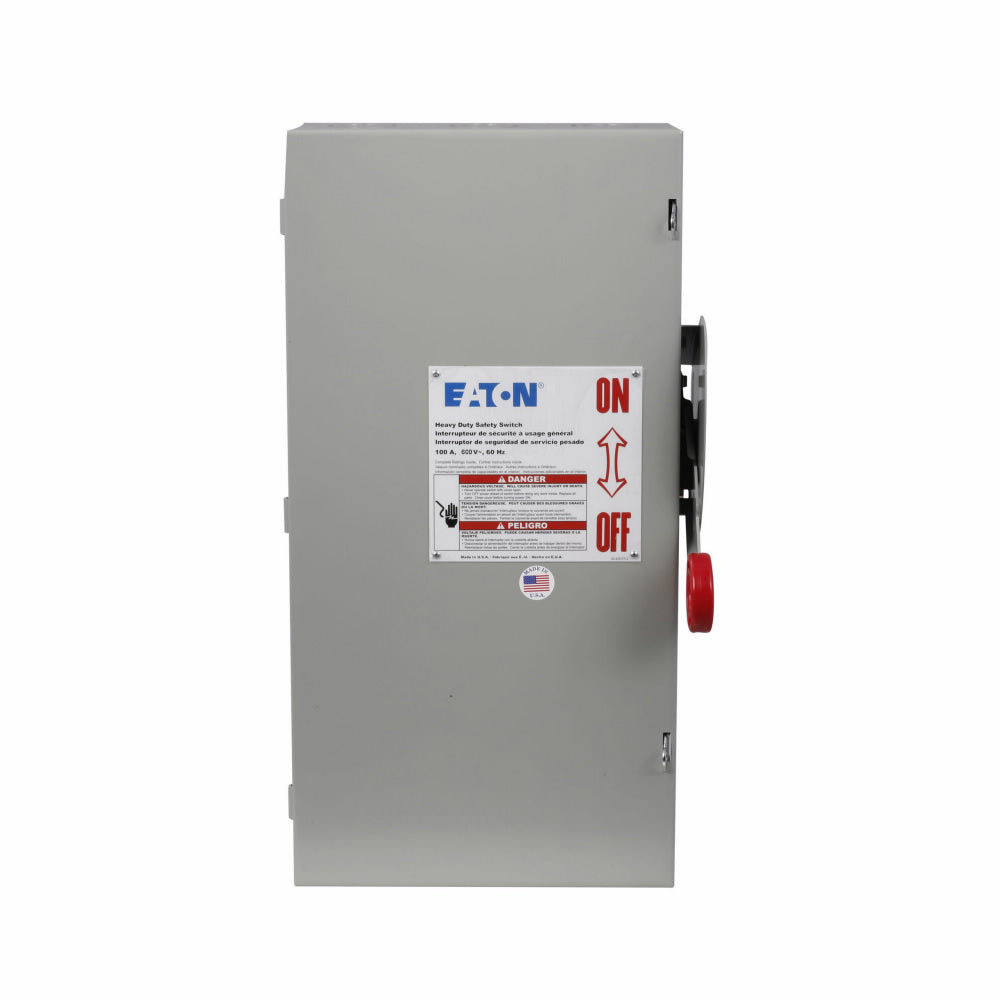

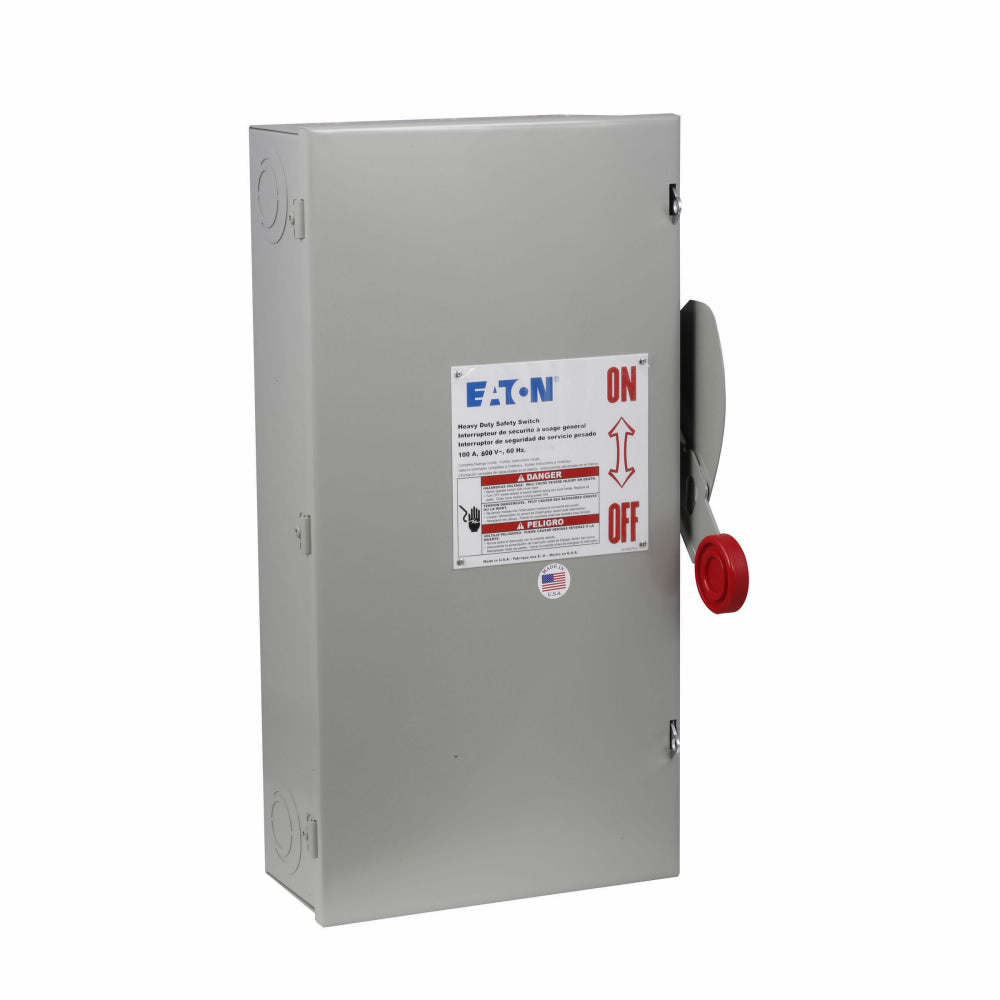

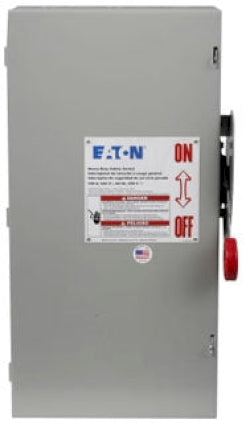

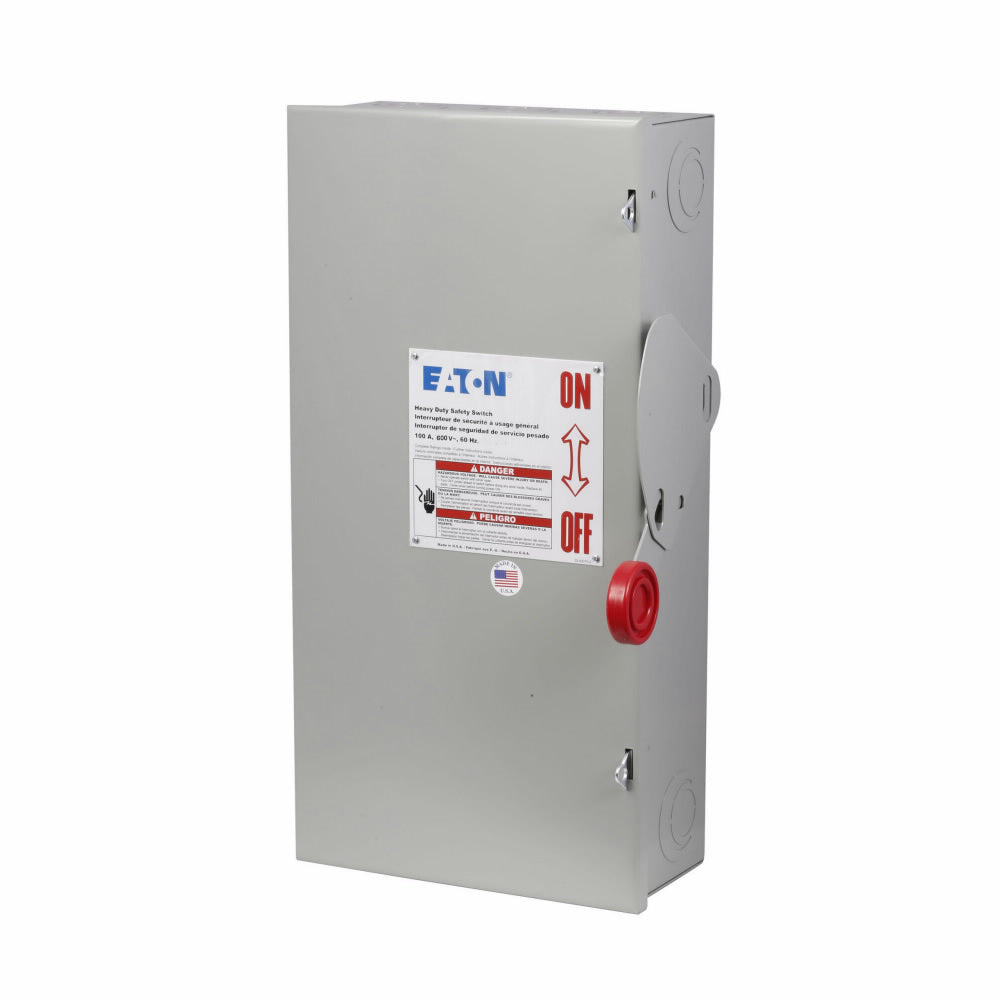

DH363NGK is a Cutler Hammer heavy duty fusible safety switch rated for 100 Amps and 600 Volts AC with a 3-pole, 4-wire configuration and NEMA 1 enclosure.
This switch features a single-throw design with Class H fuse clips and painted steel construction. It includes a neutral and is suitable for indoor use. The switch is horsepower rated up to 30 HP at 480V and 40 HP at 600V, designed for reliable power distribution and safety in industrial applications.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Wires: 4 (with neutral)
- Mounting Type: Indoor, NEMA 1 enclosure
- Interrupt Rating: Fusible, Class H fuse clips
- Series/Frame: K Series Heavy Duty
- Trip Unit: Fusible
- Material: Painted steel
- Horsepower Rating: 30 HP at 480V, 40 HP at 600V
- Single Throw Switch
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DH363NGK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 100kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 782113206486
- GTIN : 00782113213538
- Country of Origin : United States
- Dimensions : 22.5 in x 9 in x 12.75 in (Length/Depth x Height x Width)
- Weight : 23
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
