Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH363UGK

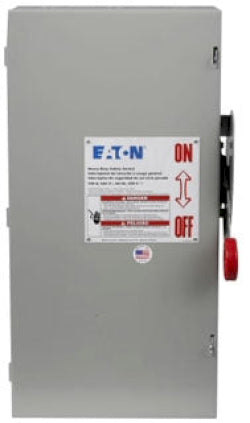

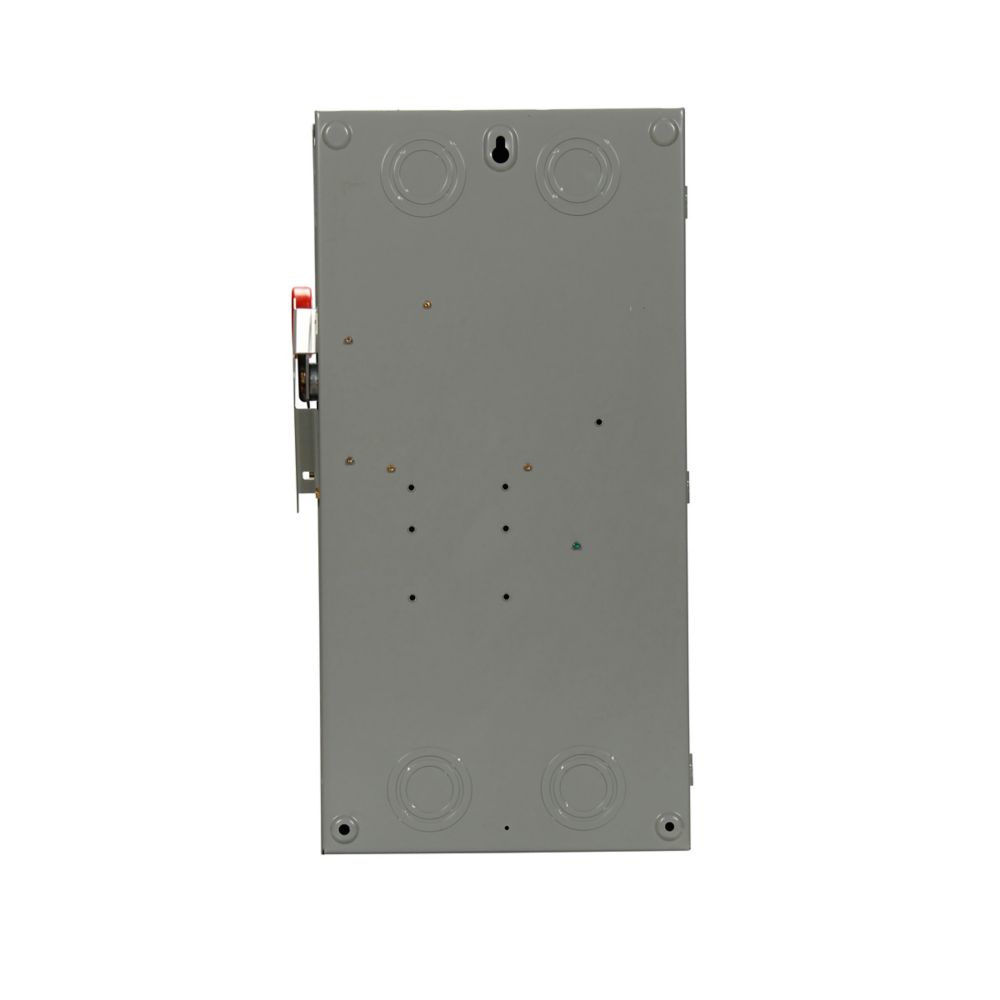

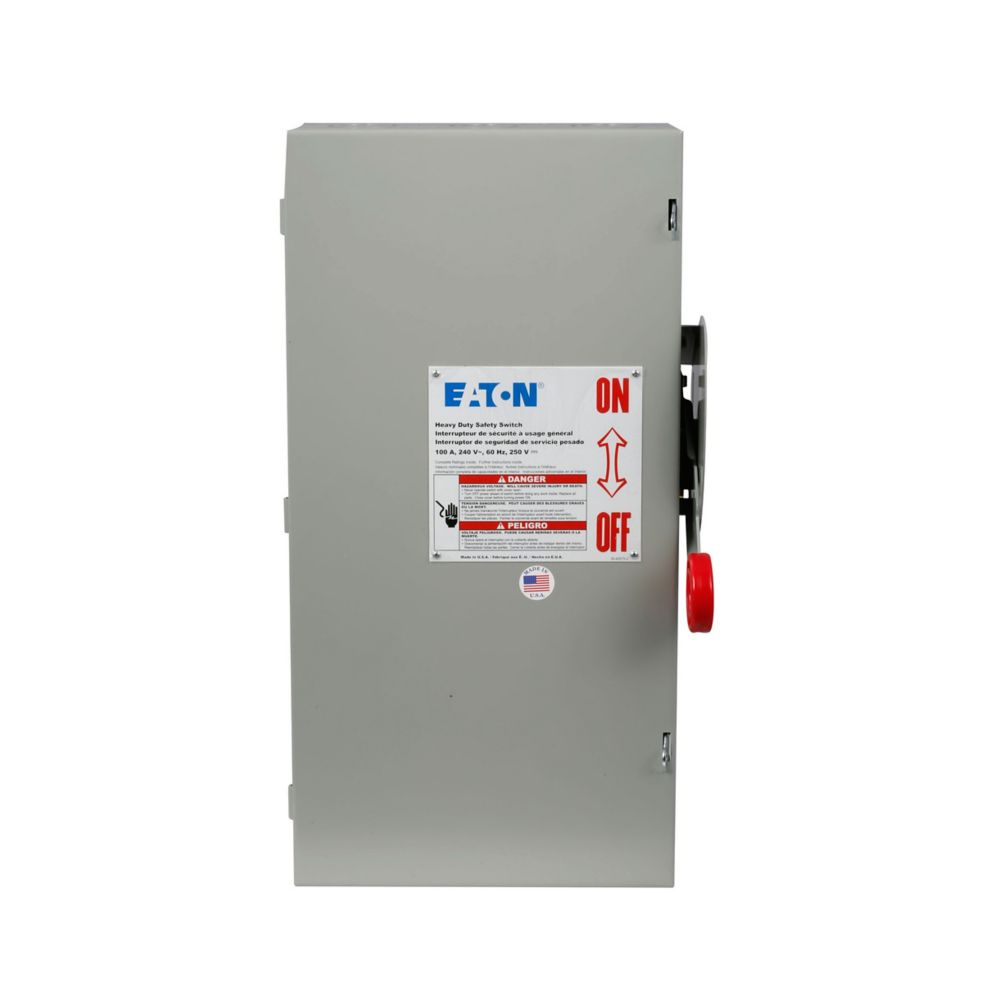

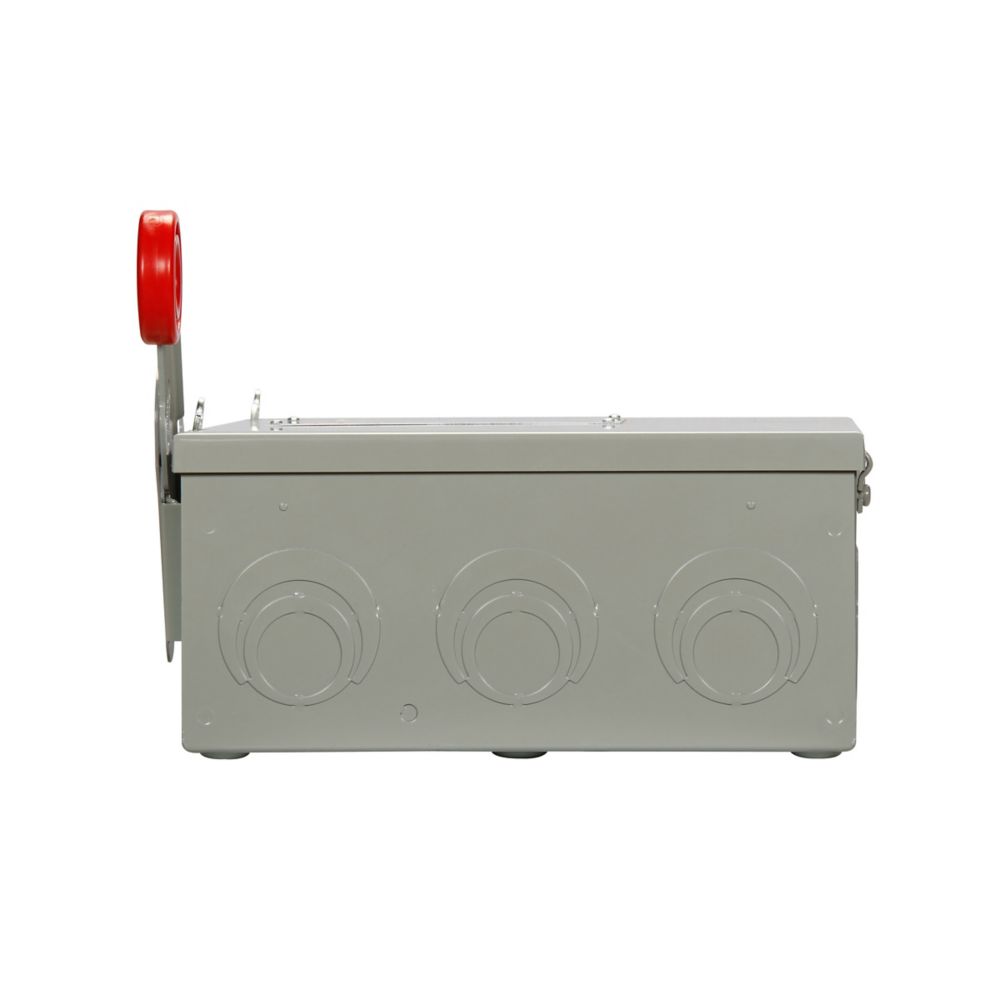

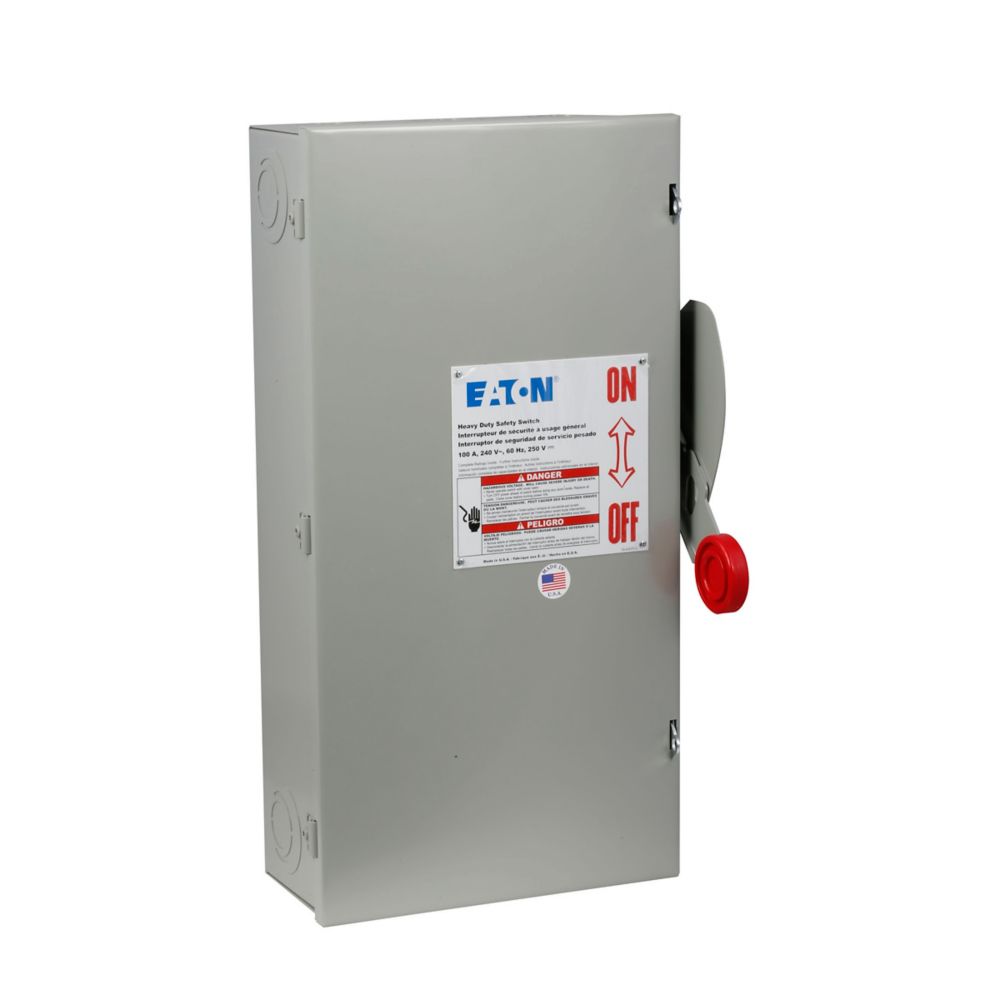

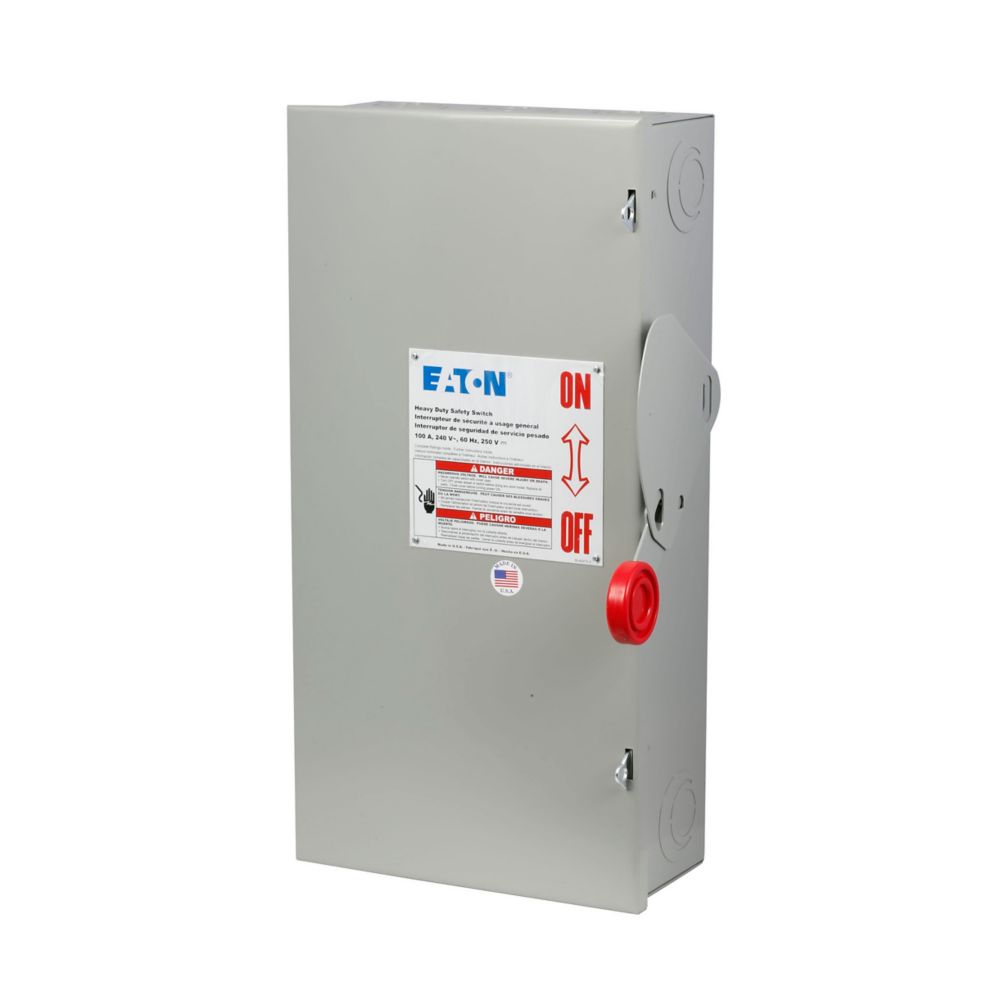

DH363UGK is a Cutler Hammer heavy duty, non-fusible safety switch designed for reliable power distribution applications.
This single-throw, three-pole safety switch features a painted steel NEMA 1 enclosure and is rated for 100A at up to 600V AC. It is engineered for heavy industrial use, offering robust construction and dependable performance in demanding environments.
-
Key Specifications
- Amperage: 100A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Surface mount (NEMA 1 enclosure)
- Interrupt Rating: 200kA at 600V
- Series/Frame: DH Series
- Trip Unit: Not applicable (non-fusible)
- Certifications: NEMA 1
- Enclosure Material: Painted steel
- Wire: 3-wire
- Dimensions: 9.89 x 21.68 x 11.84 inches (HxWxD)
- Weight: 20 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DH363UGK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600 AC/250 DC
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 782113206455
- GTIN : 00782113206455
- Country of Origin : United States
- Dimensions : 9.89 in x 21.68 in x 11.84 in (Length/Depth x Height x Width)
- Weight : 20
- Certification : NEMA KS-1, UL Listed, UL98
