Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH363FDK

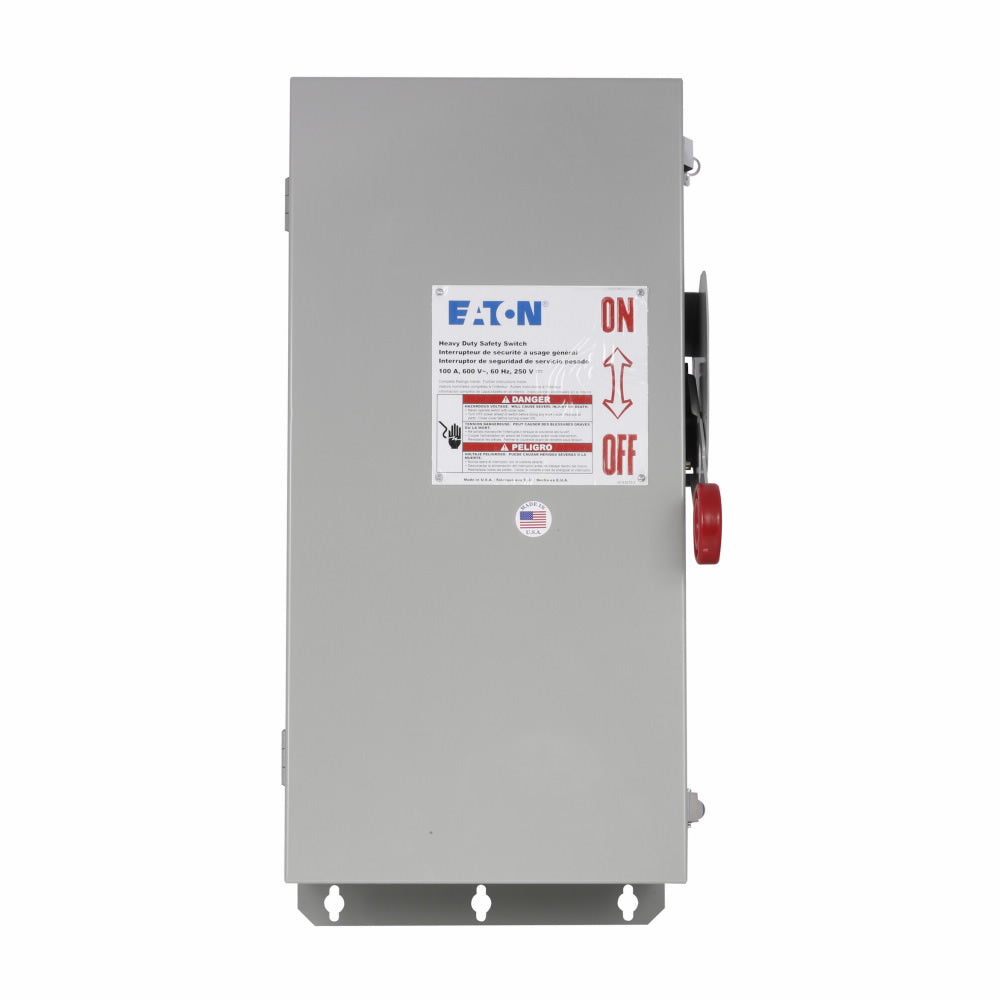

DH363FDK is a Cutler Hammer heavy duty fusible safety switch designed for reliable power distribution and personnel safety.DH363FDK features a 100 ampere rating, 600 volt capacity, and three-pole configuration housed in a painted galvanized steel enclosure rated for NEMA 12 and NEMA 3R environments. It includes Class H fuse provisions without neutral and supports up to 75 horsepower at 600 volts. This switch is UL listed and suitable for commercial and industrial applications requiring a durable disconnect solution.
- Amperage: 100A
- Voltage: 600V
- Poles: 3
- Enclosure: Painted galvanized steel
- NEMA Rating: 12 and 3R
- Fuse Class: Class H, fusible without neutral
- Horsepower Rating: Up to 75 hp (1/3 PH @ 480/600V)
- UL Listed
- Dimensions: 25.5" L x 13.25" W x 9" H
- Weight: 23 lbs
- Suitable for service entrance use with optional neutral or ground lug kit
- Can be field modified for rainproof NEMA 3R use
Specifications
- Part Number: DH363FDK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- Compatible Frames : SKLA
Product Data
- UPC : 782113206554
- GTIN : 00782113206554
- Country of Origin : United States
- Dimensions : 25.5 in x 9 in x 13.25 in (Length/Depth x Height x Width)
- Weight : 23
- Certification : UL Listed
