Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description

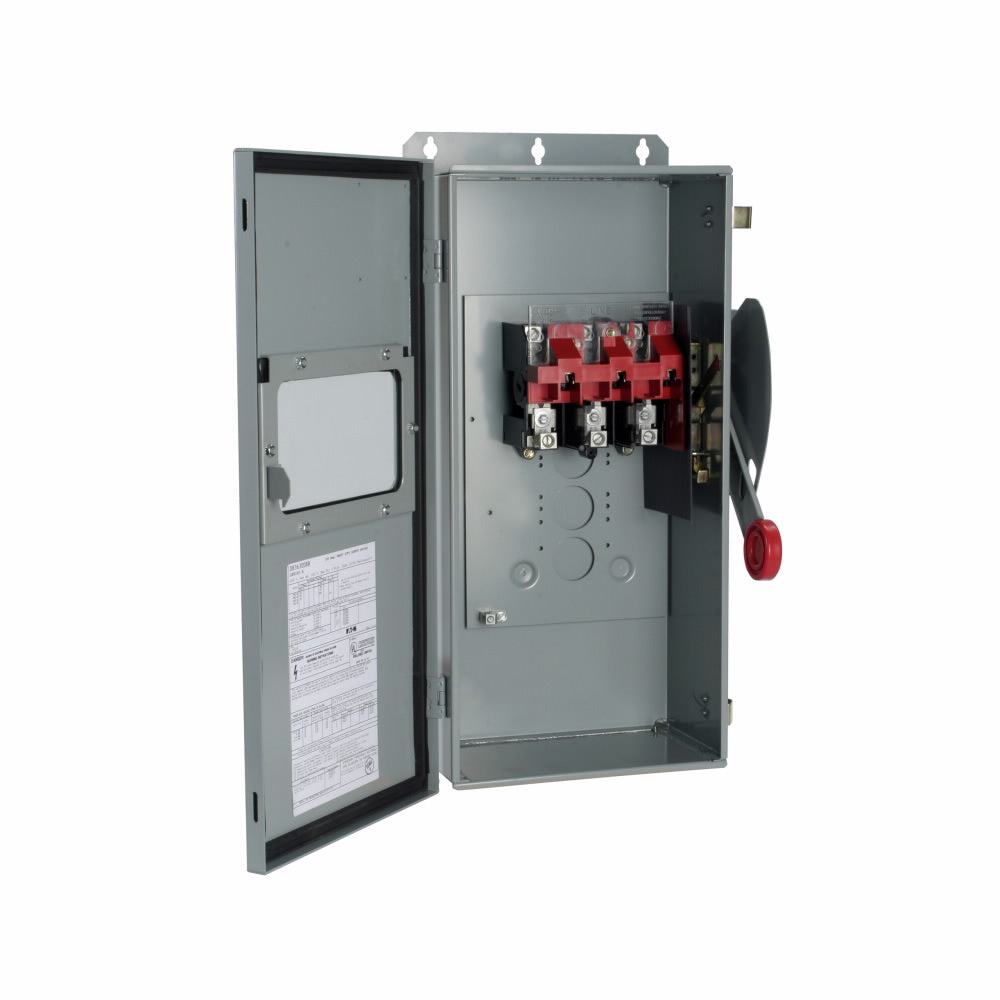

DH363UDKW
DH363UDKW is a Cutler Hammer heavy duty non-fusible safety switch rated for 100 amps and 600 volts with 3 poles and NEMA 12 enclosure.DH363UDKW features a single-throw design with painted galvanized steel construction, suitable for three-phase, three-wire applications. It has an interrupt rating of 200kA at 600V and is UL listed for safety and reliability.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 600 Volts
- Poles: 3
- Mounting Type: Surface mount, NEMA 12 enclosure
- Interrupt Rating: 200kA at 600V
- Series/Frame: Heavy Duty
- Trip Unit: Non-Fusible, Single Throw
- Construction: Painted galvanized steel
- Phase: Three-phase, three-wire
- Certifications: UL Listed
Specifications
- Part Number: DH363UDKW
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
- Compatible Frames : SELA
Product Data
- UPC : 78211402273
- GTIN : 00782114022733
- Country of Origin : United States
- Dimensions : 10.22 in x 24.95 in x 11.79 in (Length/Depth x Height x Width)
- Weight : 20
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
