DH363NWK - Cutler Hammer 100A 600V 3-Pole Fusible Heavy Duty Safety Switch NEMA 4X Stainless Steel

Save $2,002.57
SKU: DH363NWK-New
Condition: New
Price:
$5,747.43 $7,750.00
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Cutler Hammer DH363NWK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH363NWK Disconnect Switch (Fusible) - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Cutler Hammer DH363NWK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH363NWK Disconnect Switch (Fusible) - Essential Electric Supply

Description

DH363NWK

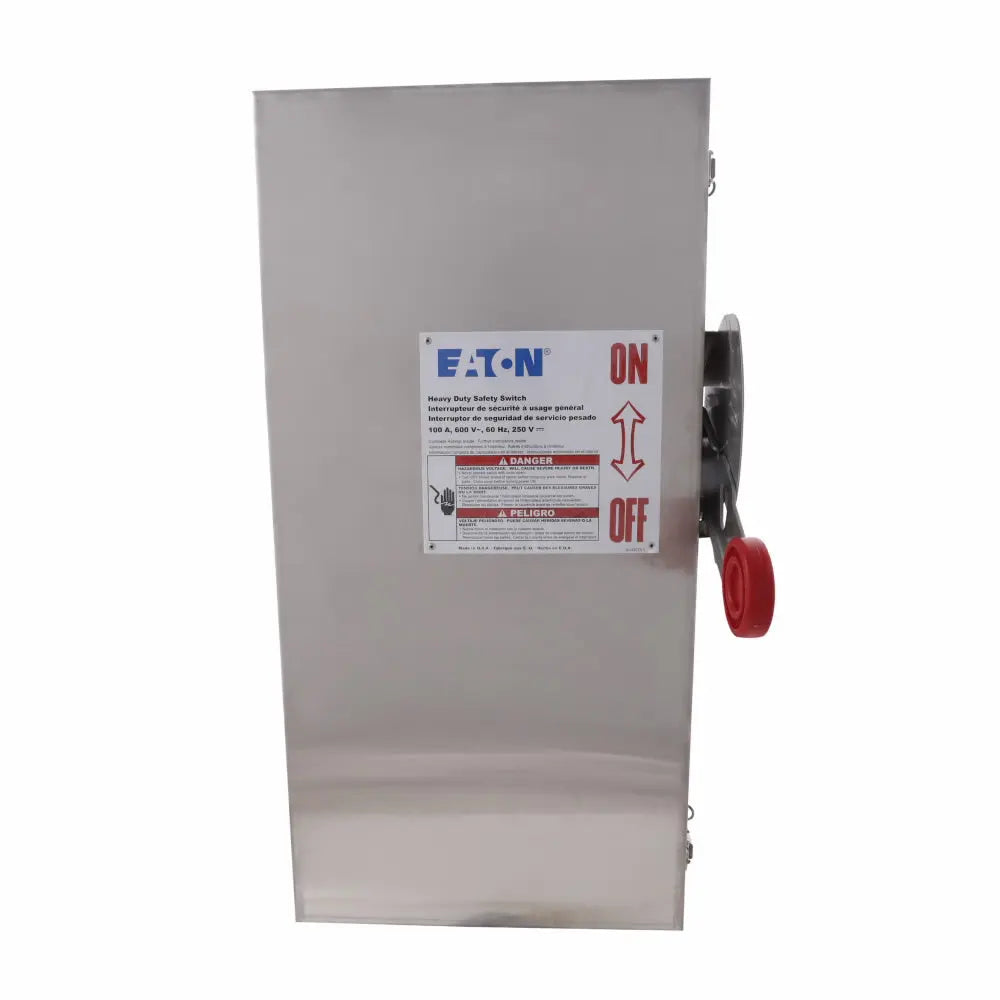

DH363NWK is a Cutler Hammer heavy duty fusible safety switch rated for 100 amps and 600 volts with a 3-pole configuration and NEMA 4X stainless steel enclosure.

This switch features a 304 stainless steel enclosure for corrosion resistance, Class H fuse provision with fusible neutral, and enhanced visible blade single-throw operation. It supports four-wire connections and is rated for up to 75 HP at 600 V. The switch is UL listed and designed for demanding commercial and industrial applications requiring reliable service continuity and safety.

    Key Specifications
    • Amperage: 100 A
    • Voltage: 600 V
    • Poles: 3
    • Enclosure: NEMA 4X, 304 stainless steel
    • Fuse Class: Class H, fusible with neutral
    • Wire Configuration: Four-wire
    • Max HP Rating: 30, 40/60, 75 HP (1/3 PH @480-600 V)
    • Type: Heavy duty fusible safety switch
    • UL Listed
    • Enhanced visible blade single-throw operation
    • Weight: 30 lbs
    • Dimensions: 24.95" H x 10.76" W x 10.22" D

    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


    Specifications

    • Part Number: DH363NWK
    • Manufacturer : Cutler Hammer
    • Brand : Cutler Hammer
    • Category : Switch
    • Item Subcategory : Disconnect
    • Family : DH Series
    • Type : DH
    • Voltage : 600
    • Amperage : 100
    • Phase : 3
    • Poles : 3
    • AIC rating : 100kA@600V
    • Fuse Class : R
    • Configuration : Single
    • Switch Style : Fusible
    • Nema Rating : NEMA 3R
    • Compatible Frames : SEDA

    Product Data

    • UPC : 782113206608
    • GTIN : 00782113206608
    • Country of Origin : United States
    • Dimensions : 10.22 in x 24.95 in x 10.76 in (Length/Depth x Height x Width)
    • Weight : 30
    • Certification : UL Listed

Accesories

Part Manufacture Sub Category
100A600VFC
