Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH363NDK

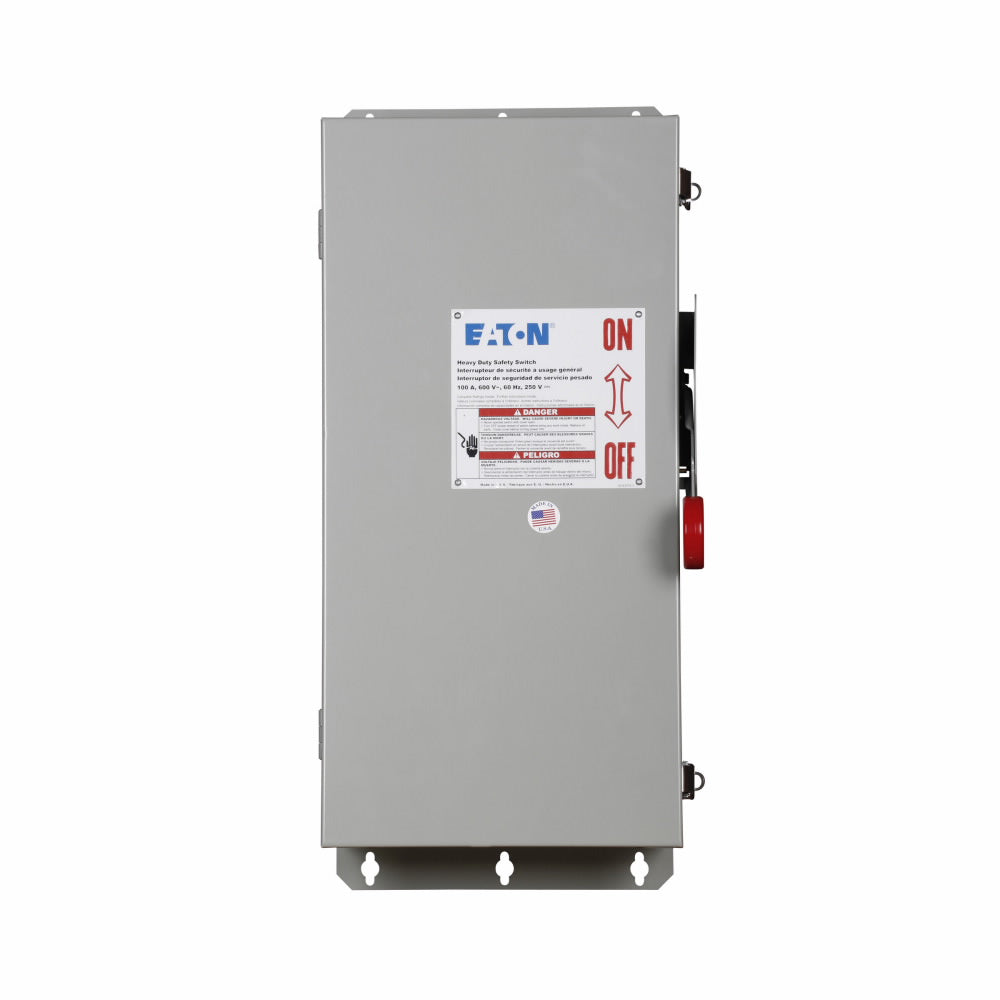

DH363NDK is a Cutler Hammer heavy duty fusible safety switch rated for 100 amps and 600 volts with a 3-pole configuration and NEMA 12/3R enclosure.
This single-throw disconnect switch features a painted galvanized steel enclosure, Class H fuse clips with fusible neutral, and enhanced visible blades. It is UL listed and compliant with NEC 230.62(C) barrier requirements. The switch supports a 200kA interrupt rating at 600V and is suitable for surface mounting. It can be field modified for NEMA 3R rainproof use by opening a factory drain hole.
- Key Specifications
- Amperage: 100A
- Voltage: 600V AC / 250V DC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: 200kA at 600V
- Enclosure: NEMA 12 / NEMA 3R (field modifiable)
- Enclosure Material: Painted galvanized steel
- Fuse Class: Class H fusible with neutral
- Trip Unit: Fusible
- Certifications: UL Listed
- Dimensions: 24.95" H x 10.76" W x 10.22" D
- Weight: 30 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DH363NDK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 100
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Nema Rating : NEMA 12
Product Data
- UPC : 078211320659
- GTIN : 00782113206592
- Dimensions : 10.22 in x 24.95 in x 10.76 in (Length/Depth x Height x Width)
- Weight : 30
