Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH362NDKW

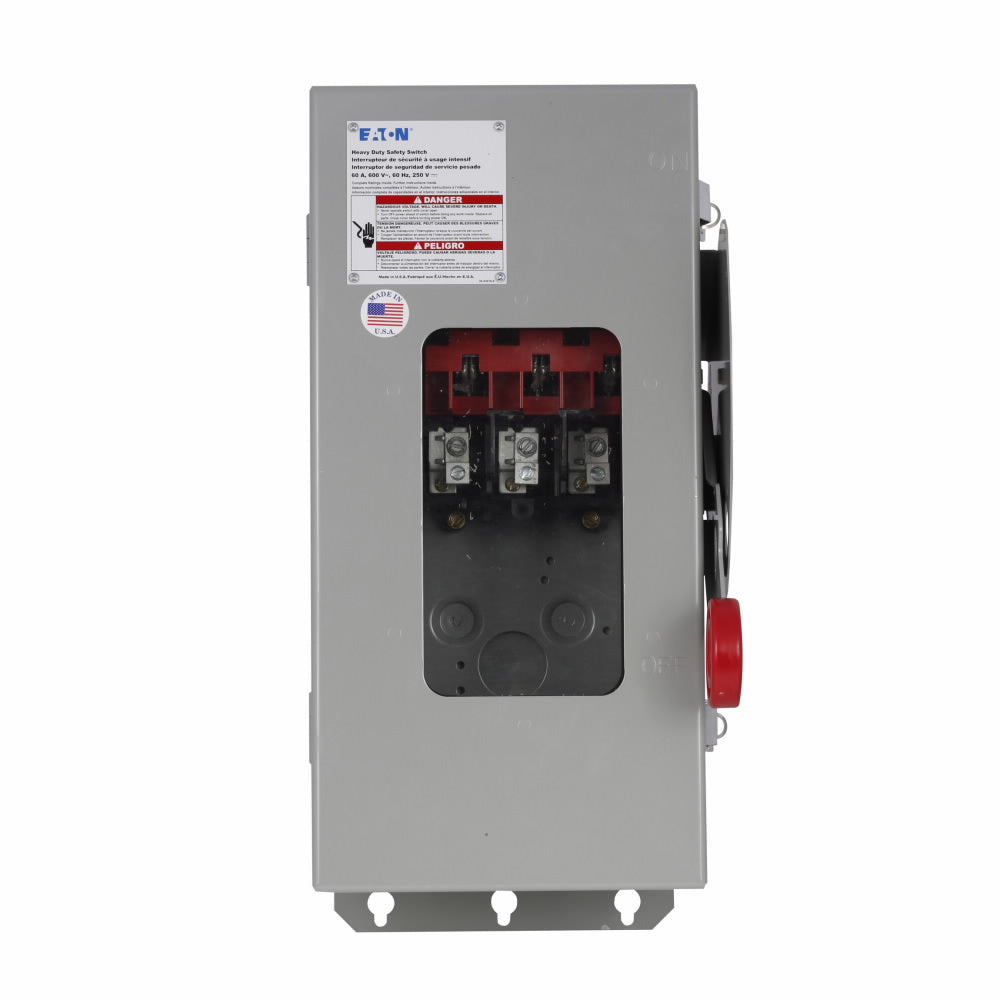

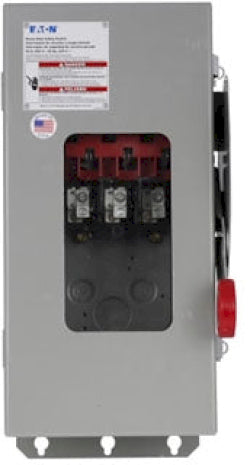

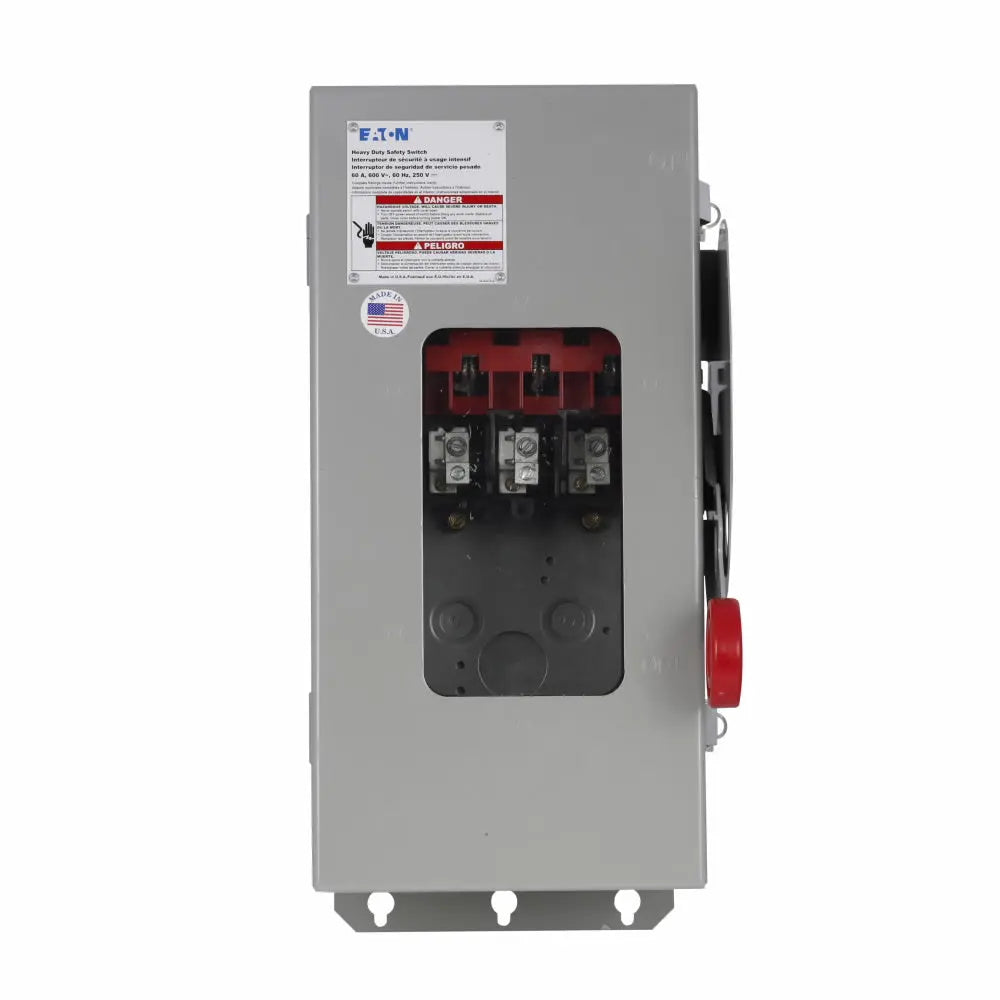

DH362NDKW is a Cutler Hammer heavy duty fusible safety switch rated for 60 amps and 600 volts with a 3-pole, 4-wire configuration and NEMA 12/3R enclosure.DH362NDKW features enhanced visible blades, painted galvanized steel enclosure, Class H fuse provision with neutral, and is UL listed for reliable industrial and commercial applications. It supports up to 50 HP at 600V and has a 200kA interrupt rating for high fault current protection.
- Key Specifications
- Amperage: 60A
- Voltage: 600V
- Poles: 3-pole
- Wires: 4-wire with neutral
- Enclosure: Painted galvanized steel, NEMA 12/3R
- Fuse Class: Class H fusible
- Interrupt Rating: 200kA at 600V
- Max Horsepower: 50 HP (1/3PH @480/600V)
- Certifications: UL Listed
- Mounting: Surface mount
- Enhanced visible blades for safety
- Weight: approx. 20 lbs
Specifications
- Part Number: DH362NDKW
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 782114022634
- GTIN : 00782114022634
- Country of Origin : United States
- Dimensions : 18 in x 8.5 in x 9.25 in (Length/Depth x Height x Width)
- Weight : 20
- Certification : UL Listed
