Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH324NRK

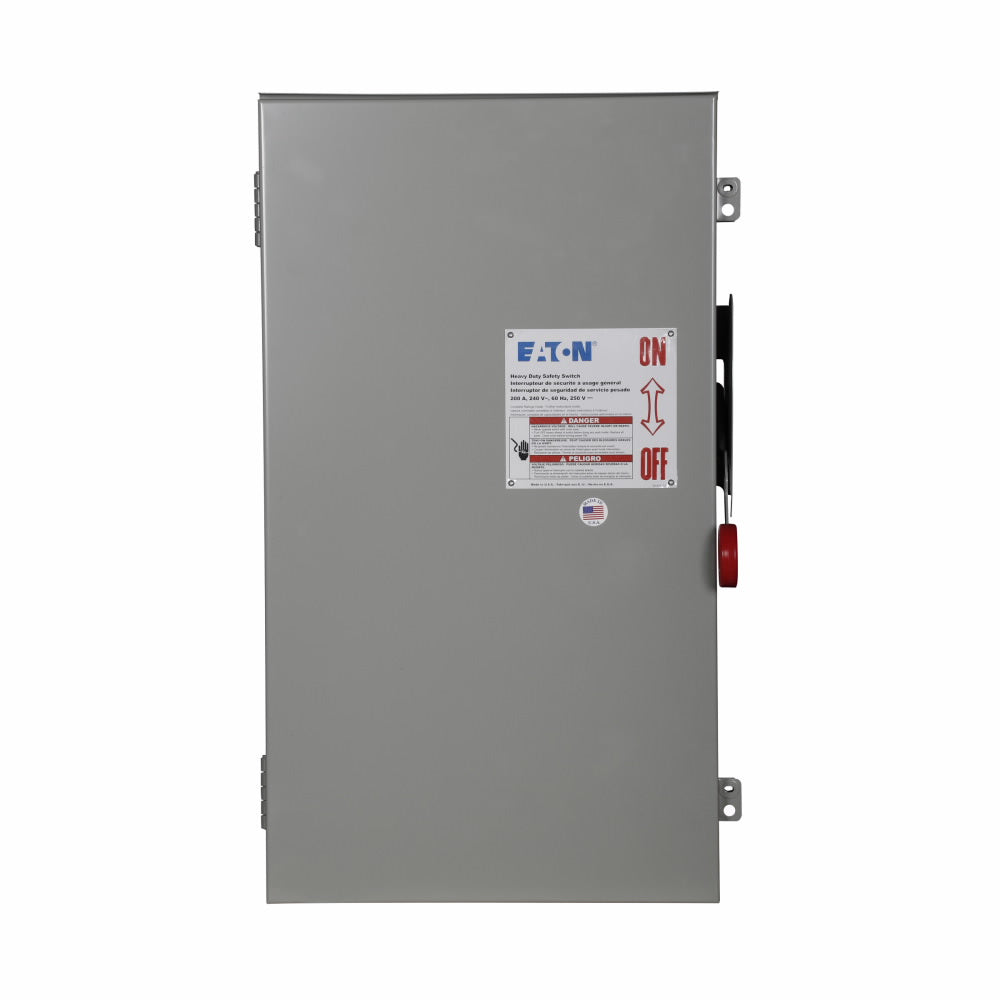

DH324NRK is a Cutler Hammer heavy duty fusible safety switch rated for 200 amps and 240 volts AC with a NEMA 3R enclosure.
This enhanced visible blade single-throw safety switch features a painted galvanized steel enclosure, Class H fuses, neutral, and is designed for three-pole, four-wire applications. It supports wire sizes from #6 to 250 kcmil and is suitable for surface mounting. The switch provides reliable disconnecting means with a 100kA interrupt rating and is rated for both 240 VAC and 250 VDC operation.
- Key Specifications
- Amperage: 200 A
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 100kAIC
- Series/Frame: K Series
- Fuse Class: Class H
- Enclosure Rating: NEMA 3R
- Neutral: Included
- Wire Size Range: #6-250 kcmil
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DH324NRK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4
- Compatible Frames : SKLA
Product Data
- UPC : 782113206691
- GTIN : 00783643151970
- Country of Origin : United States
- Dimensions : 10 in x 28.12 in x 15.52 in (Length/Depth x Height x Width)
- Weight : 52
- Certification : UL Listed
