Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH322FGK

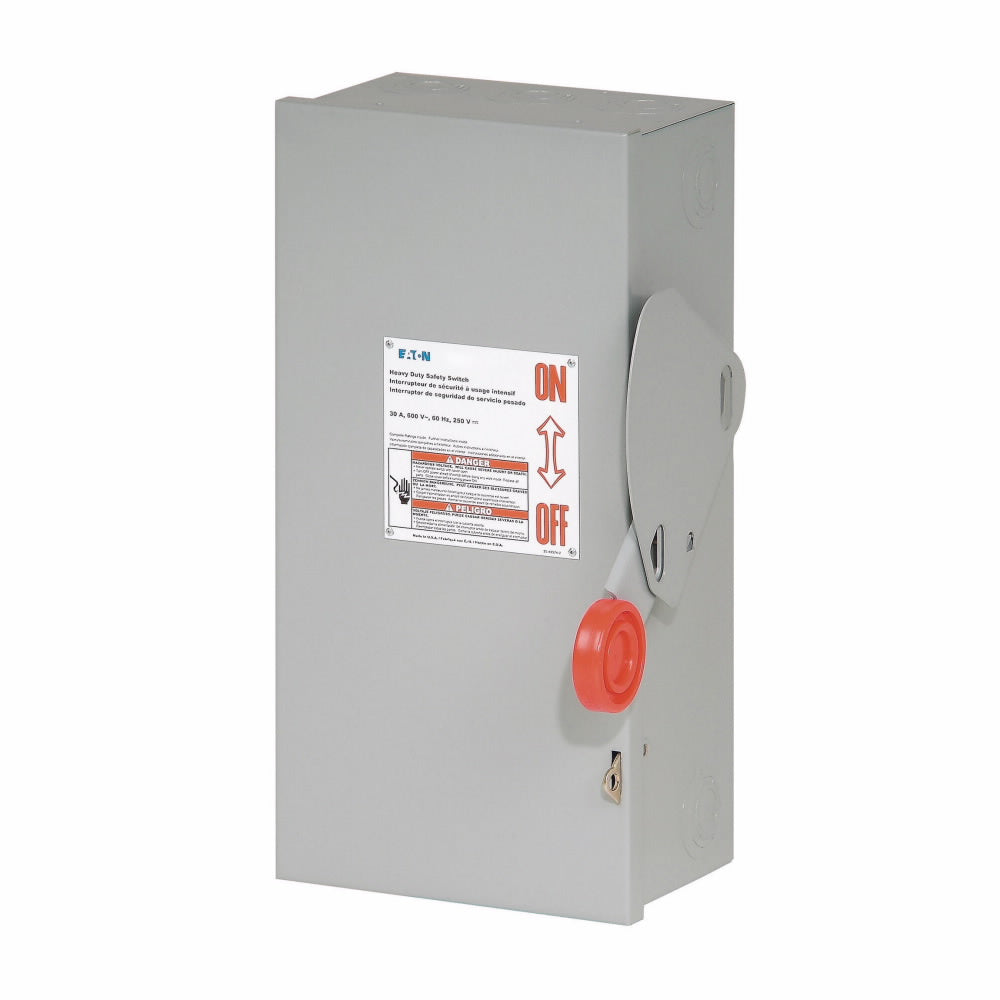

DH322FGK is a Cutler Hammer 60 Amp, 240 Volt, 3-pole fusible safety switch with a NEMA 1 painted steel enclosure.DH322FGK features an enhanced visible blade single-throw design, suitable for heavy-duty applications. It supports three-wire connections and Class H fuse provisions without neutral. This switch is UL listed and rated for a maximum horsepower of 3, 7.5/10, and 15/10 hp at 240 V. It is designed for use in service entrance applications with a neutral kit installed.
- Key Specifications
- Amperage Rating: 60A
- Voltage Rating: 240V AC
- Number of Poles: 3
- Enclosure Type: NEMA 1 Painted Steel
- Fuse Class: Class H
- Fuse Configuration: Fusible without neutral
- Max Horsepower: 3, 7.5/10, 15/10 hp (1,3PH @ Std/TD/250 Vdc)
- Wire Size: #14-2 AWG Cu/Al
- UL Listed Certification
- Type: Heavy Duty Fusible Safety Switch
Specifications
- Part Number: DH322FGK
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 240
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : TJK
Product Data
- UPC : 782113205809
- GTIN : 00783164008661
- Country of Origin : United States
- Dimensions : 16.5 in x 16 in x 9.5 in (Length/Depth x Height x Width)
- Weight : 19
- Certification : UL Listed
