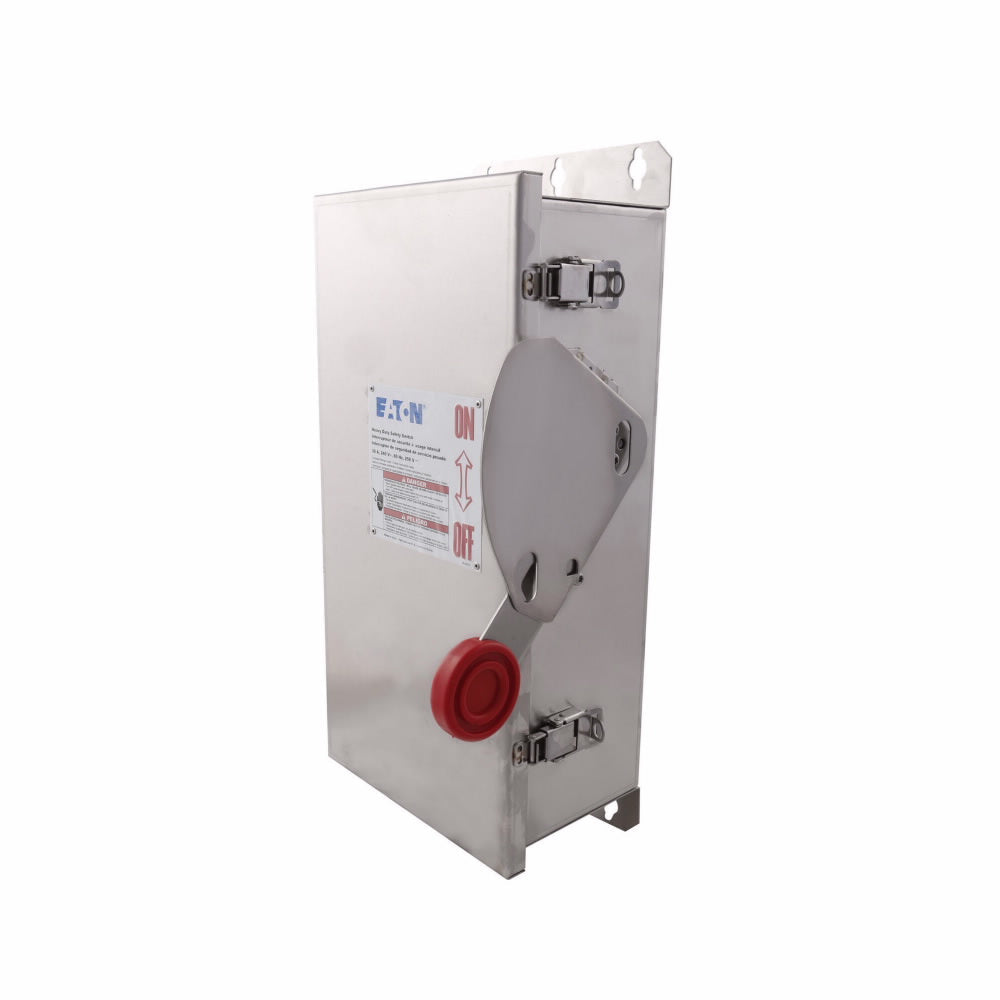

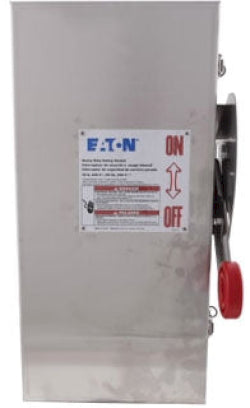

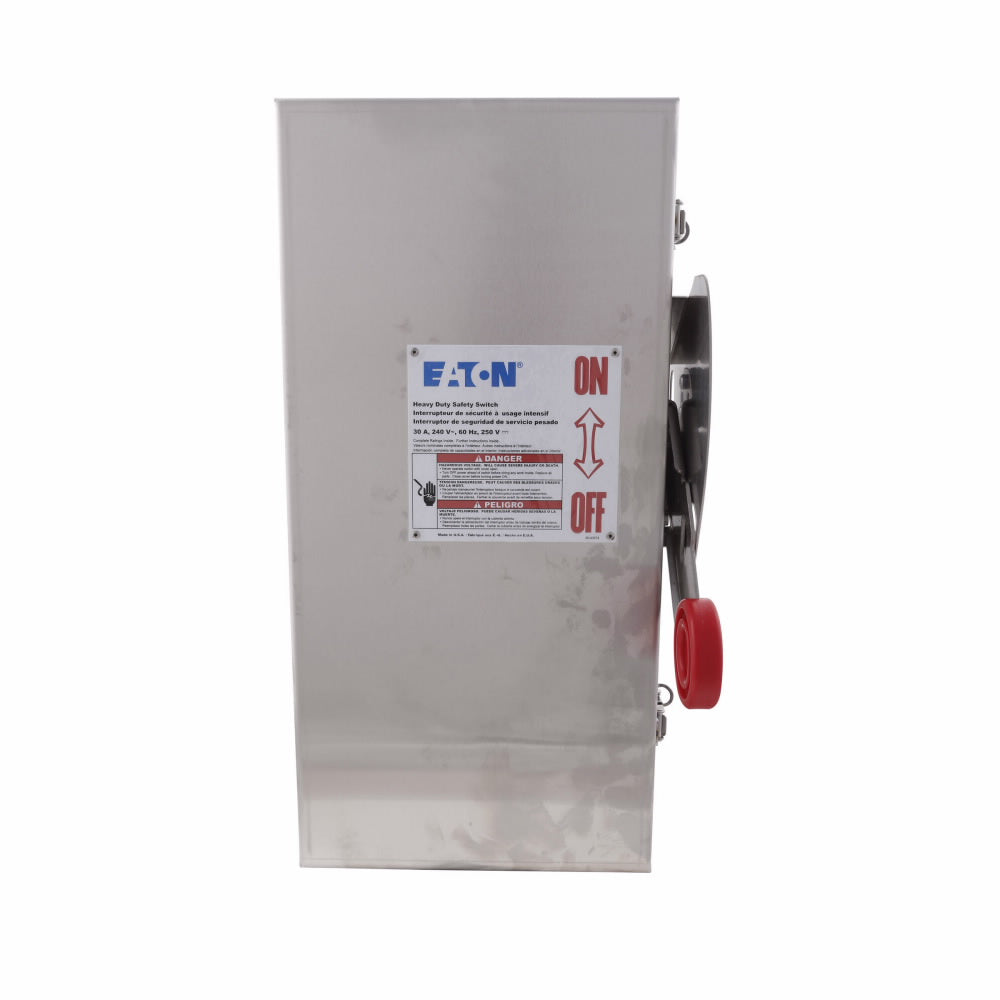

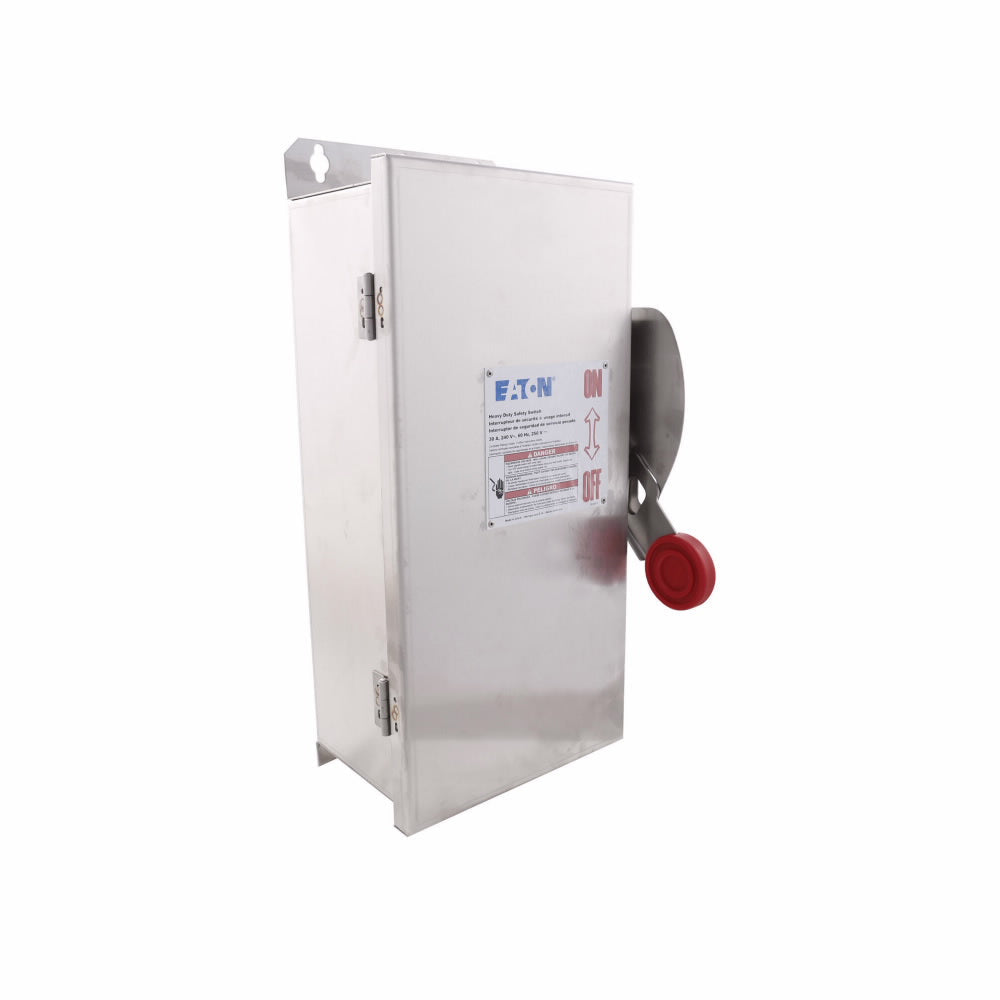

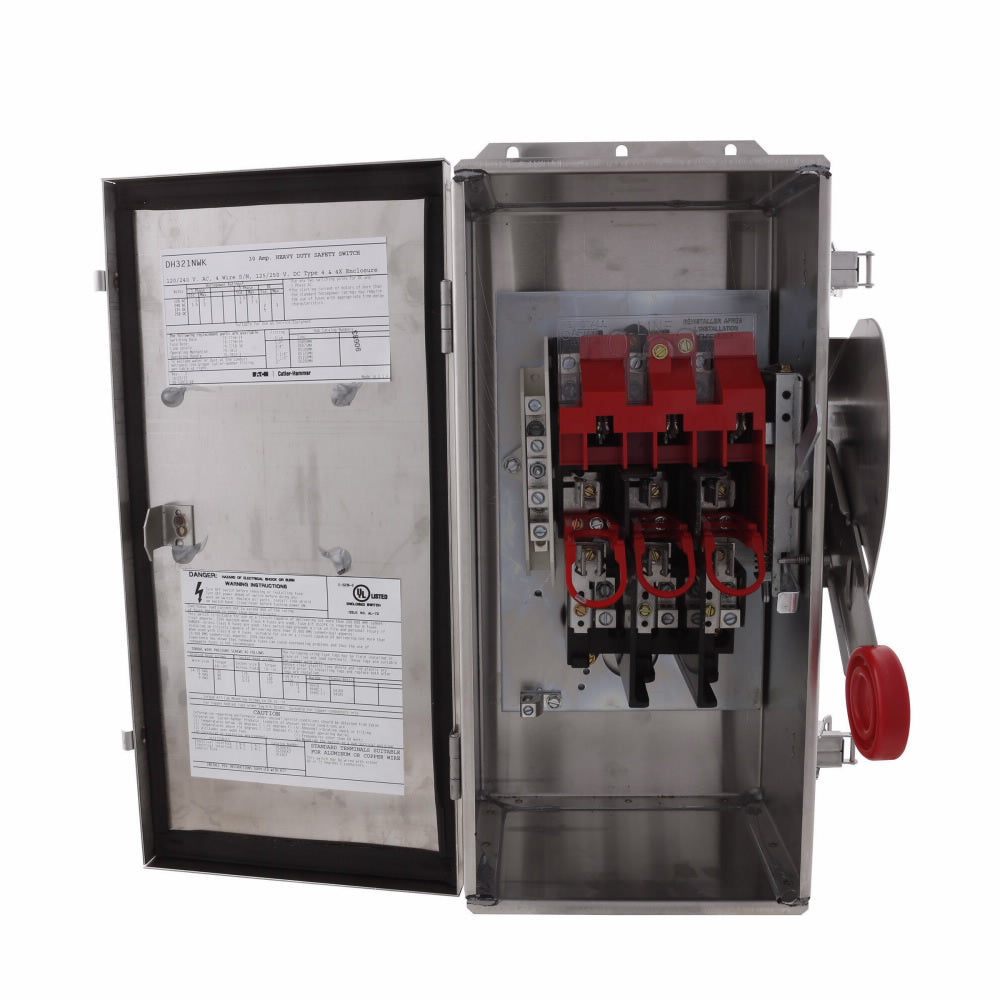

DH321NWK - Cutler Hammer 30A 240V 3-Pole Fusible Heavy Duty Safety Switch NEMA 4X Stainless Steel

DH321NWK

DH321NWK is a Cutler Hammer heavy duty fusible safety switch designed for reliable industrial and commercial power control.This 30 amp, 240 volt, 3-pole switch features a corrosion-resistant 304 stainless steel NEMA 4X enclosure, Class H fuse provision with neutral, and supports #14-2 AWG copper/aluminum wiring. It provides visible blade single-throw operation with enhanced safety through a mechanically interlocked cover and is UL listed for dependable performance. The switch is suitable for harsh environments and outdoor use, with a 200kA interrupt rating at 240V.

Key Specifications
• Amperage: 30A
• Voltage: 240V
• Poles: 3
• Phase: 3
• Enclosure: NEMA 4X, 304 stainless steel
• Fuse Class: Class H, fusible with neutral
• Wire Size: #14-2 AWG Cu/Al
• Interrupt Rating: 200kA @ 240V
• Switch Style: Fusible, single throw
• Dimensions (HxWxD): 19.08" x 7.73" x 10.22"
• Weight: 22 lbs
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH321NWK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 9
• Compatible Frames : SKLA

Product Data

• UPC : 782113205441
• GTIN : 00782113205441
• Country of Origin : United States
• Dimensions : 10.22 in x 19.08 in x 7.73 in (Length/Depth x Height x Width)
• Weight : 22
• Certification : UL Listed
