DH261UDK - Cutler Hammer 30 Amp 600 VAC 2-Pole Heavy Duty Non-Fusible Safety Switch NEMA 12

DH261UDK

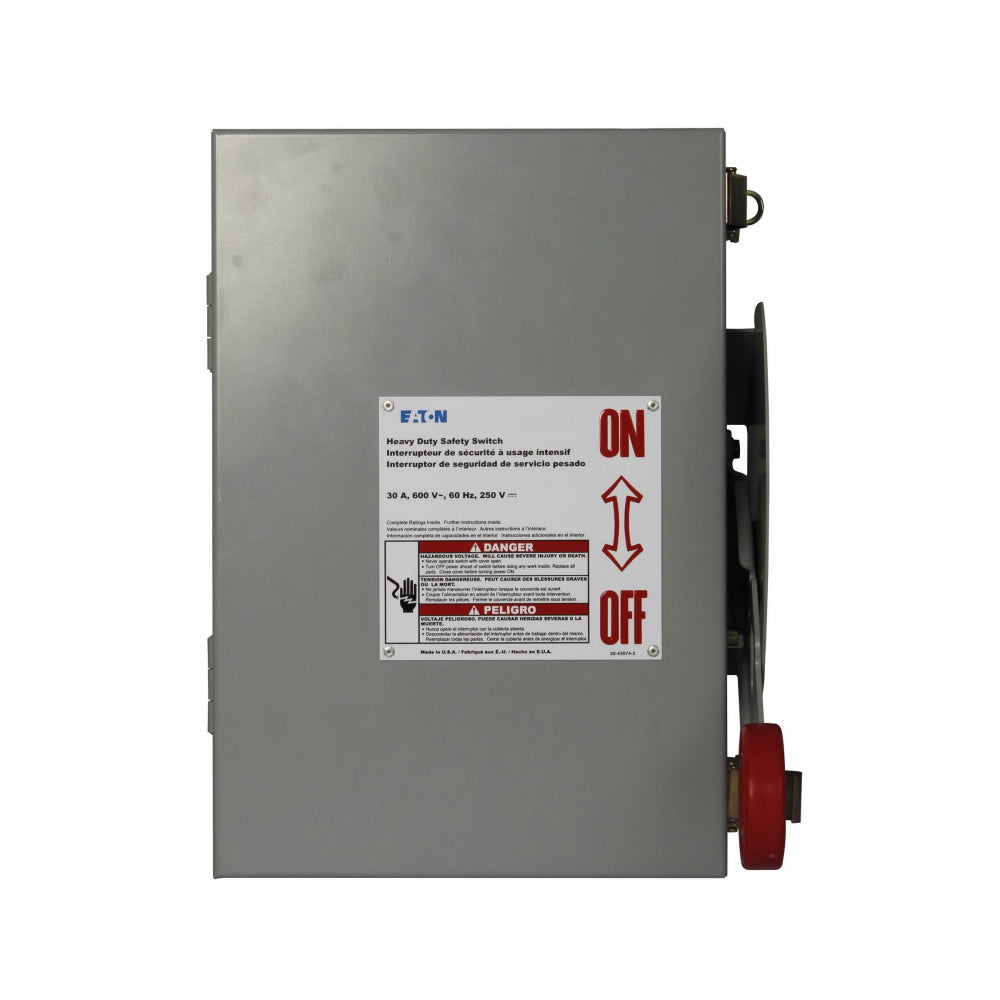

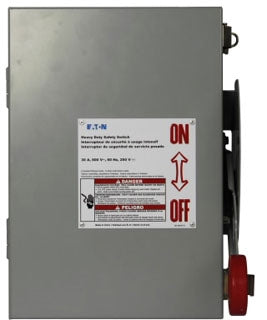

DH261UDK is a Cutler Hammer heavy duty non-fusible safety switch designed for demanding industrial applications.This single-throw, 2-pole switch is rated for 30 amps and 600 VAC, housed in a NEMA 12 painted galvanized steel enclosure. It features a non-fusible design with a time delay rating, suitable for service entrance and motor load applications up to 15 HP at 240 VAC. The switch provides reliable operation with visible ON/OFF indication and is UL listed for safety and performance.

Key Specifications
• Amperage: 30 Amps
• Voltage: 240-600 VAC, 600 VDC
• Poles: 2-Pole
• Mounting Type: Surface Mount
• Interrupt Rating: Time Delay
• Series/Frame: DH Series Heavy Duty
• Trip Unit: Non-Fusible
• Enclosure: NEMA 12 Painted Galvanized Steel
• HP Rating: 3-15 HP at 240 VAC
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: DH261UDK
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 12
• Compatible Frames : THLC



Product Data

• UPC : 782113205571
• GTIN : 00782113205571
• Country of Origin : United States
• Dimensions : 10.22 in x 14.14 in x 8.76 in (Length/Depth x Height x Width)
• Weight : 17
• Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
