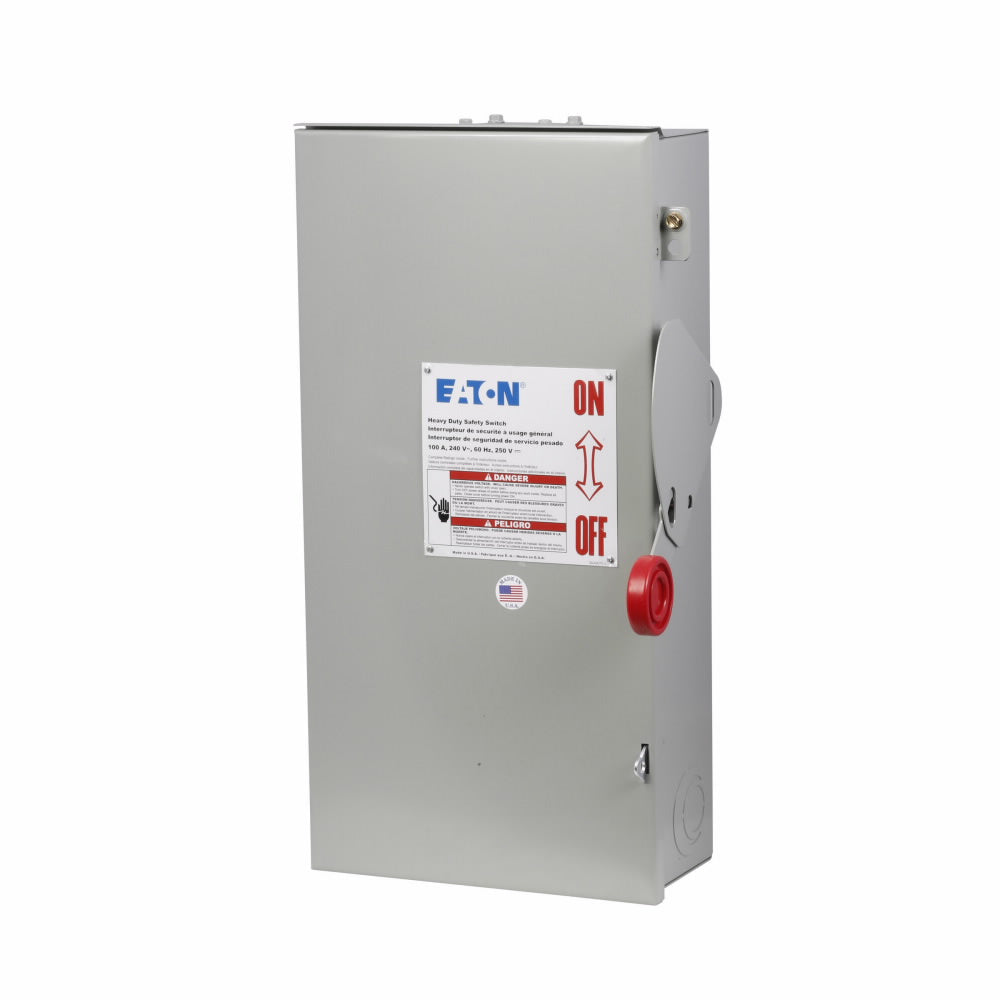

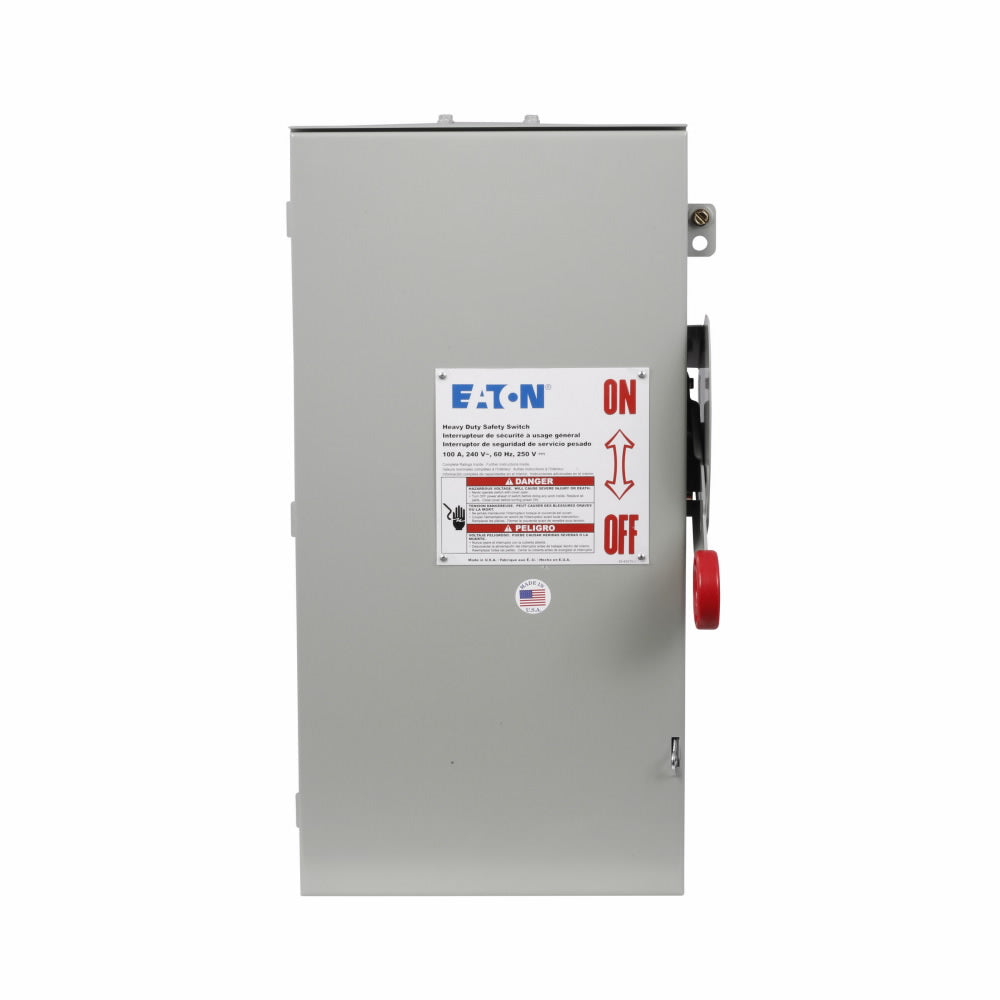

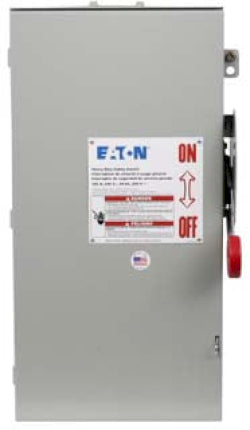

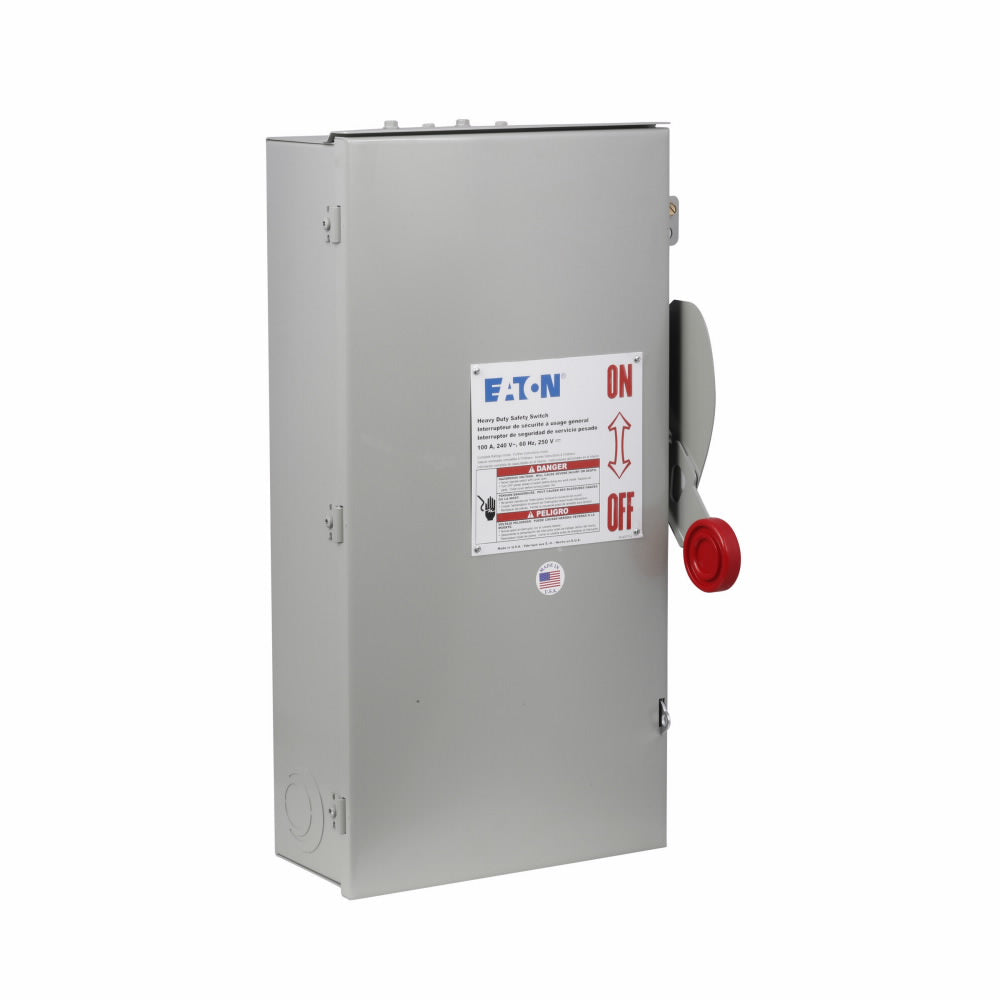

DH223NRK - Cutler Hammer DH Series 100A 240V 2-Pole Fusible Safety Switch NEMA 3R Neutral

DH223NRK

DH223NRK is a heavy-duty fusible safety switch designed for reliable circuit protection in demanding applications. This Eaton Cutler Hammer DH Series switch features an enhanced visible blade, NEMA 3R enclosure, and neutral configuration for added safety and versatility. It is rated for 100A, 240V, two-pole, three-wire service and supports standard and time-delay fuses. Engineered for durability, the DH223NRK is suitable for both indoor and outdoor installations, offering robust protection for motors and equipment. The switch is constructed with a heavy-duty frame and provides a clear visual indication of the blade position for enhanced operator safety. It is ideal for use in industrial, commercial, and utility environments where dependable disconnect performance is critical.

• Part Number: DH223NRK
• Manufacturer: Cutler Hammer (Eaton)
• Series: DH Series
• Amperage: 100A
• Voltage: 240V
• Poles: 2
• Configuration: Fusible, Single Throw
• Mounting Type: Surface Mount
• Interrupt Rating: 100kA @ 240V
• Enclosure: NEMA 3R (Rainproof)
• Neutral: Yes
• Wire Size: #14 - #1/0 Cu/Al
• Standards: CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DH223NRK
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Switch
• Item Subcategory : Disconnect
• Family : DH Series
• Type : DH
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X
• Compatible Frames : SKPA

Product Data

• UPC : 782113206233
• GTIN : 00782113213491
• Country of Origin : United States
• Dimensions : 22.5 in x 9 in x 12.75 in (Length/Depth x Height x Width)
• Weight : 26
• Certification : UL Listed
