Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH222NGK

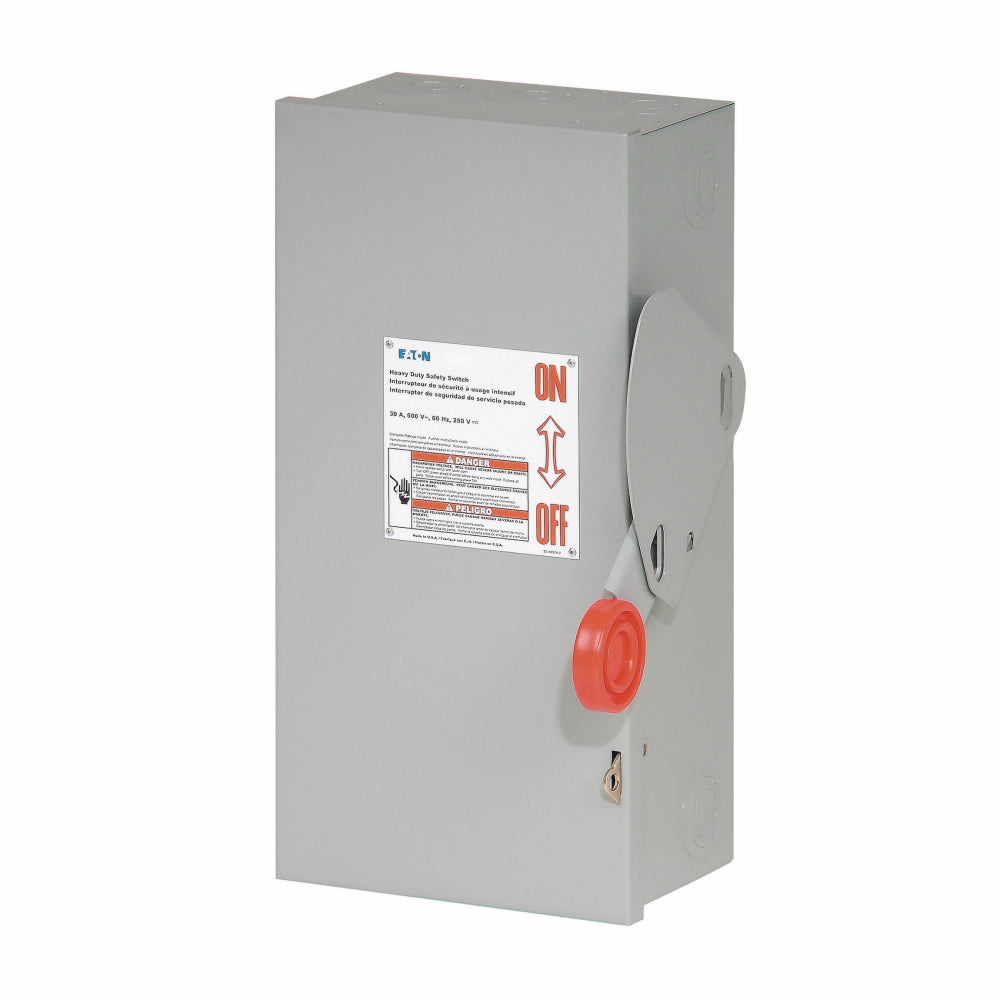

DH222NGK is a Cutler Hammer heavy duty fusible safety switch rated for 60 Amps and 240 Volts with 2 poles and neutral. DH222NGK features a single-throw design with a painted steel NEMA 1 enclosure, Class H fuses, and is suitable for indoor use. It supports horsepower ratings up to 15 hp and includes a solid neutral for reliable operation. The switch is UL listed and designed for heavy-duty power distribution applications requiring fusible protection.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 240 VAC / 250 VDC
- Poles: 2
- Mounting Type: Indoor NEMA 1 Painted Steel Enclosure
- Interrupt Rating: Class H Fusible
- Series/Frame: DH Series
- Trip Unit: Fusible
- Neutral: Solid Neutral Included
- Horsepower Ratings: 3 hp to 15 hp
- UL Listed
- Single Throw Action
Specifications
- Part Number: DH222NGK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : SKHA
Product Data
- UPC : 782113205779
- GTIN : 00782113205779
- Country of Origin : United States
- Dimensions : 16.5 in x 8.31 in x 9.12 in (Length/Depth x Height x Width)
- Weight : 17
- Certification : CSA Certified,UL Listed,NEC 230.62 (C) Compliant Barrier
