Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DH222NDK

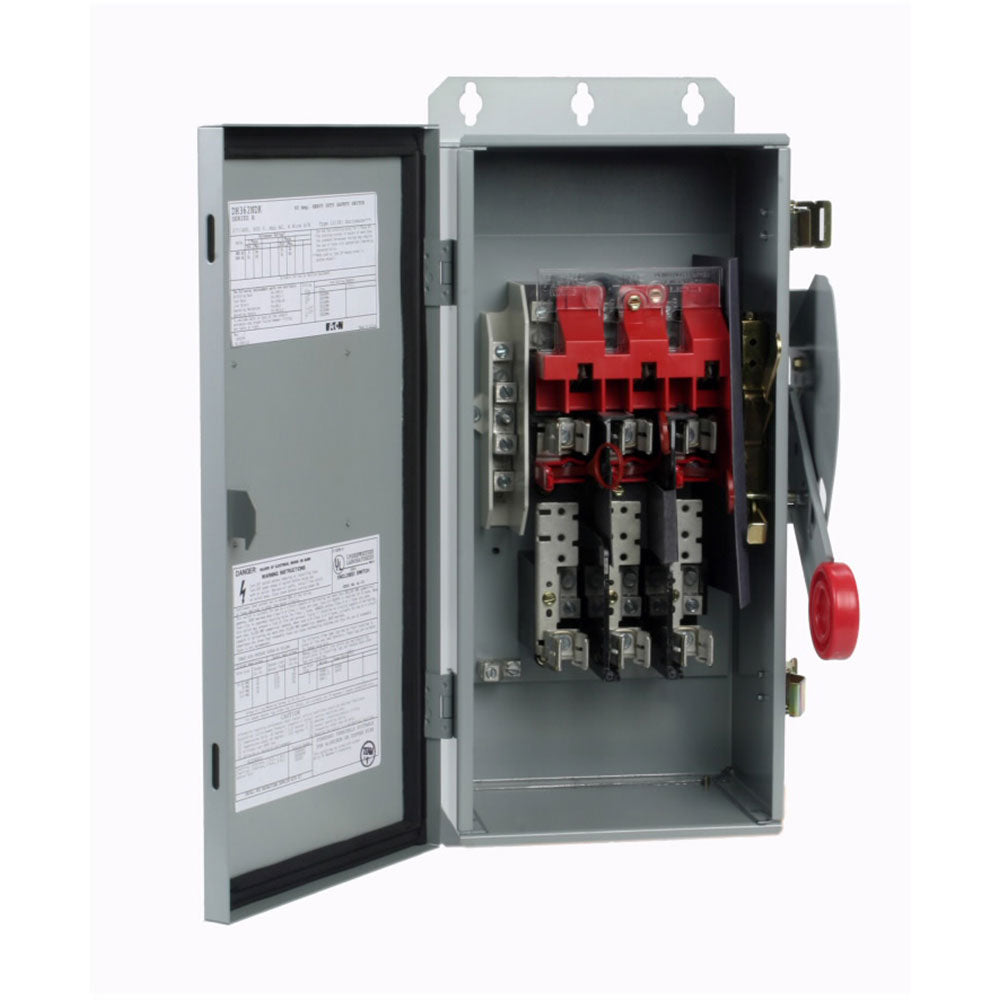

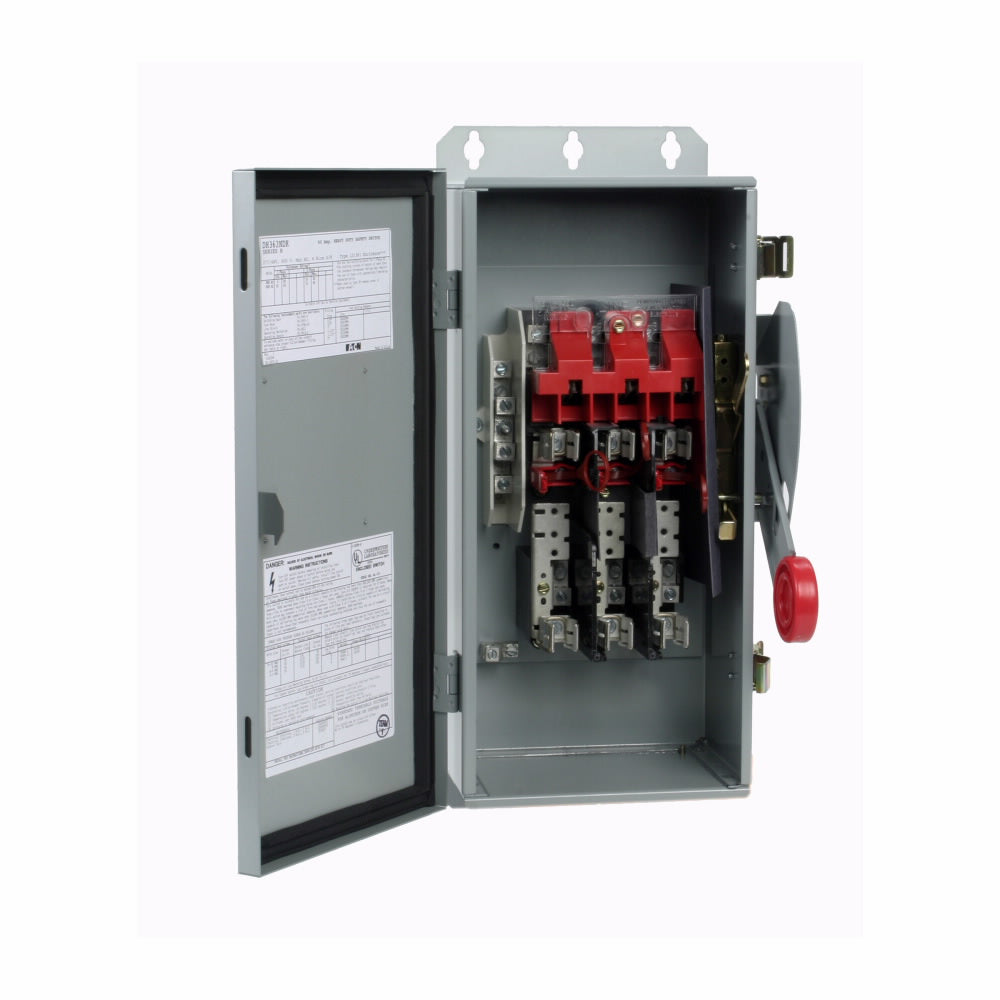

DH222NDK is a Cutler Hammer heavy duty fusible safety switch rated for 60 amps, 2 poles, and 240 volts with NEMA 12/3R enclosure.This switch features a single-throw design with neutral, enhanced visible blade, and Class H fuse provision. It supports a maximum horsepower rating of 3 HP for single phase and up to 15 HP for three phase motors with standard time delay fuses. The unit is suitable for industrial applications requiring reliable disconnect and safety isolation.
- Amperage: 60A
- Voltage: 240 VAC, 250 VDC
- Poles: 2-pole
- Mounting Type: Surface mount
- Interrupt Rating: 200kA at 240V
- Enclosure Rating: NEMA 12/3R
- Fuse Type: Class H fusible with neutral
- Maximum HP: 3 HP (1 phase), 7.5 HP/10 HP/15 HP (3 phase)
- Trip Unit: Fusible
- Certifications: UL Listed
Specifications
- Part Number: DH222NDK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DH Series
- Type : DH
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Nema Rating : NEMA 12
- Compatible Frames : SKHA
Product Data
- UPC : 782113205861
- GTIN : 00782113205861
- Country of Origin : United States
- Dimensions : 20 in x 8.5 in x 9.5 in (Length/Depth x Height x Width)
- Weight : 22
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
