Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description

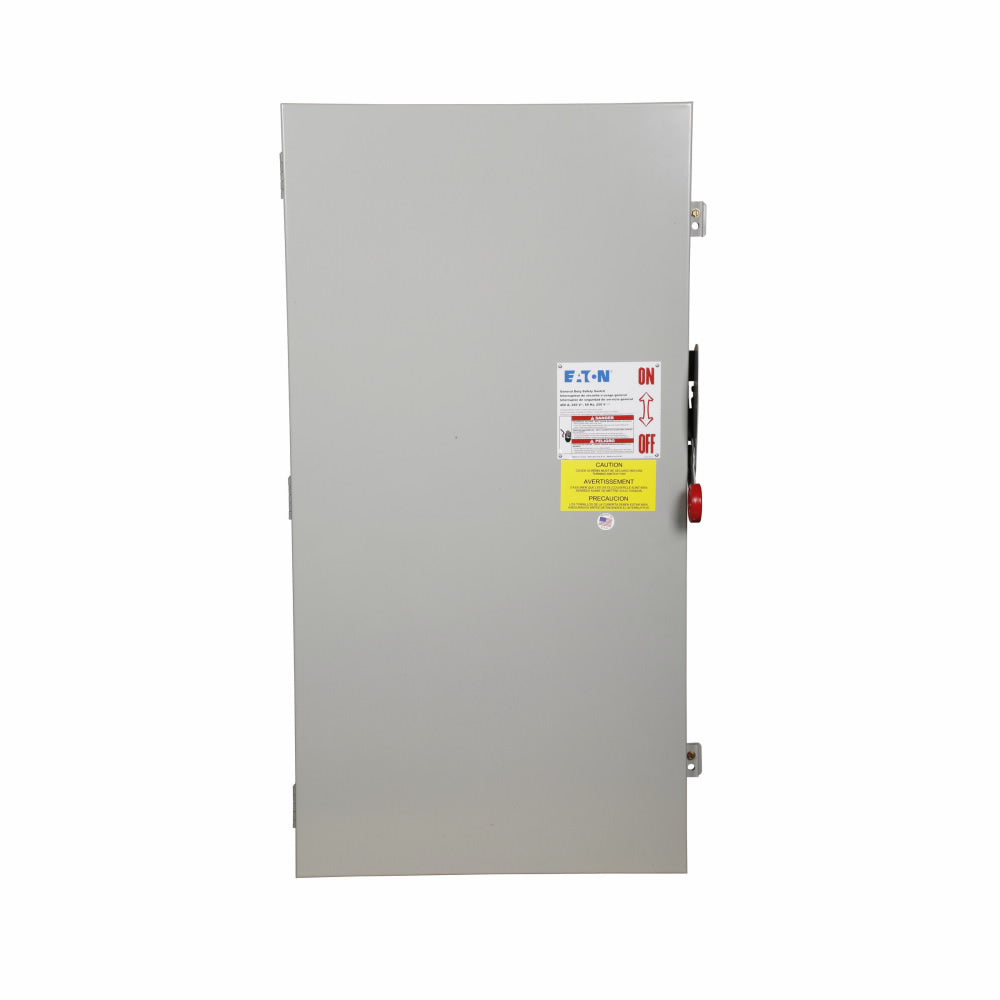

DG325UGK
DG325UGK is a general duty non-fusible safety switch designed for reliable circuit isolation in industrial and commercial applications. This single-throw, three-pole, three-wire switch is constructed with a painted steel enclosure for durability and indoor use. The DG325UGK features a robust design suitable for disconnecting loads up to 400 amps at 240 volts AC. It is ideal for use in environments requiring a NEMA 1 rated enclosure and general duty performance. The switch is non-fusible, making it suitable for applications where overcurrent protection is provided elsewhere in the circuit.
- 400 Amp rating
- 240 VAC voltage rating
- Three-pole configuration
- Three-wire design
- Non-fusible construction
- Single-throw operation
- NEMA 1 enclosure
- Indoor mounting
- Painted steel enclosure
- General duty series
- Maximum load capacity: 125 hp at 240 VAC 3-phase
- Manufacturer: Cutler Hammer
Specifications
- Part Number: DG325UGK
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DG Series
- Type : DG
- Voltage : 240
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : TKM
Product Data
- UPC : 782113589534
- GTIN : 00782113589534
- Country of Origin : United States
- Dimensions : 7.27 in x 44.74 in x 23.08 in (Length/Depth x Height x Width)
- Weight : 120
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
