DG323UGB - Cutler Hammer 100A 240V 3-Pole General Duty Non-Fusible Safety Switch NEMA 1

DG323UGB

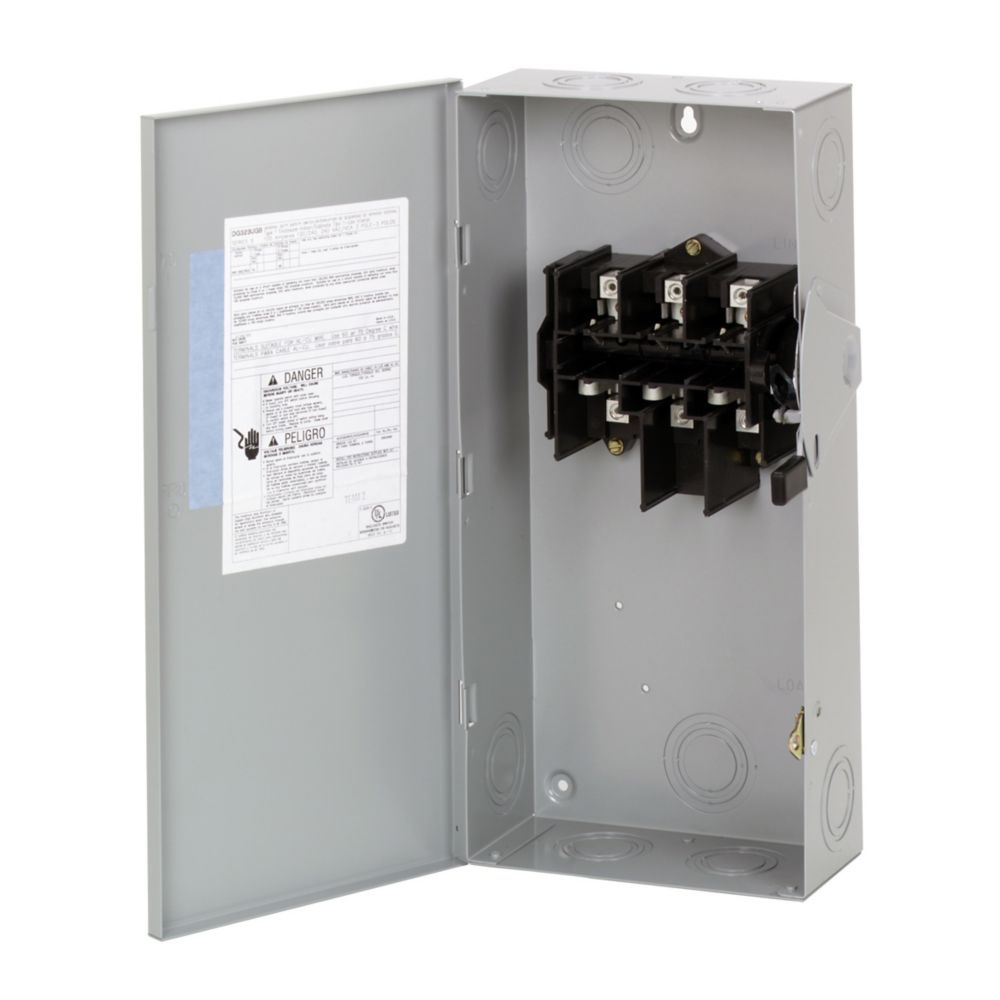

DG323UGB is a Cutler Hammer general duty non-fusible safety switch designed for 100 ampere, 240 volt applications with a 3-pole configuration.This switch features a painted steel NEMA 1 indoor enclosure, three-wire connection, and a high interrupt rating of 100kA at 240V. It is suitable for general duty use with a maximum horsepower rating of 15HP at 240V single phase and 30HP at 240V three phase. The DG323UGB is UL listed and compliant with NEC 230.62 (C) barrier requirements.

Key Specifications
• Manufacturer: Cutler Hammer
• Part Number: DG323UGB
• Amperage: 100A
• Voltage Rating: 240V AC
• Number of Poles: 3-Pole
• Number of Wires: 3-Wire
• Enclosure Rating: NEMA 1 (Indoor)
• Enclosure Material: Painted Steel
• Interrupt Rating: 100kA at 240V
• Switch Type: Non-Fusible, Single Throw
• Certifications: UL Listed
• Series: DG General Duty

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DG323UGB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Family : DG Series
• Type : DG
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : TB

Product Data

• UPC : 782113144368
• GTIN : 00782113144368
• Country of Origin : United States
• Dimensions : 7.38 in x 18.81 in x 9.13 in (Length/Depth x Height x Width)
• Weight : 12
• Certification : NEMA KS-1, UL Listed, UL98
